Boom Lift · Terex

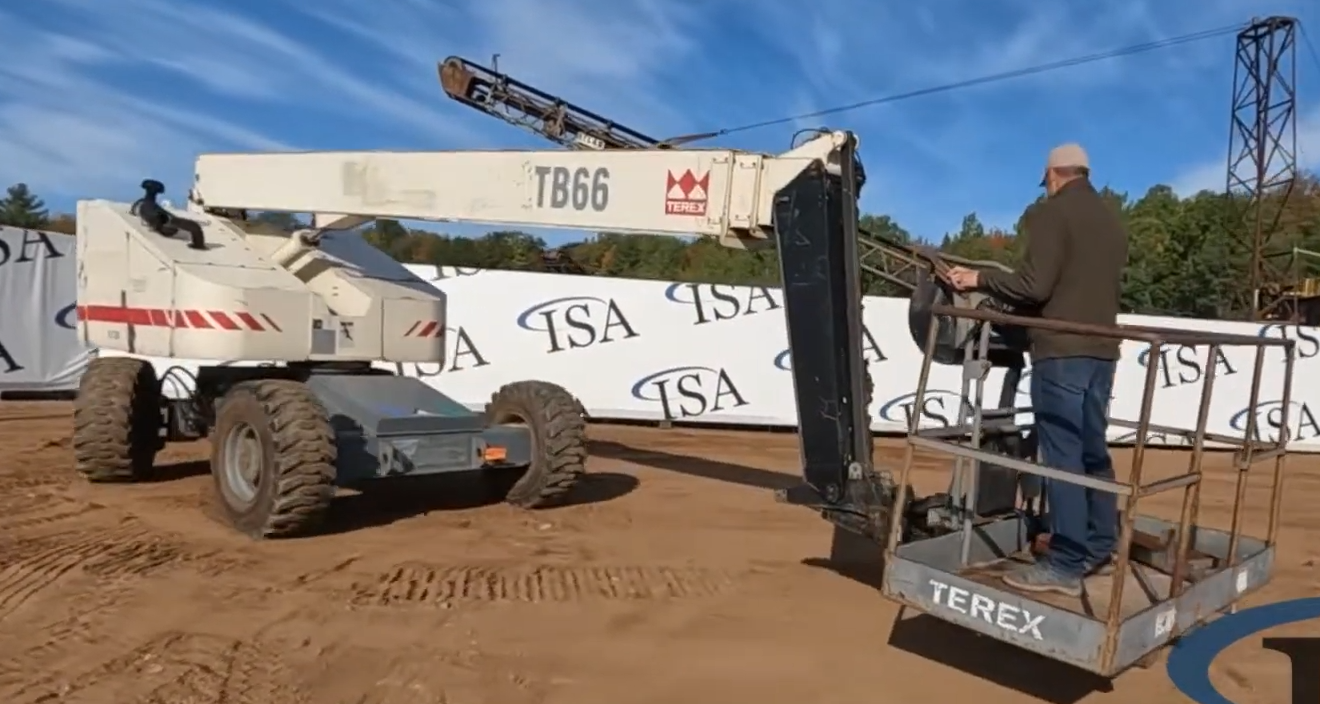

Terex TB66 Specs
Quick-reference specifications for the Terex TB66 boom lift, taken from the manufacturer’s spec sheet.
Performance 8 specs
| Horizontal Reach | 57 ft 4-5/8 in (17.49 m) |
|---|---|
| Load Capacity (maximum) | 500 lb (227 kg) |
| Platform Rotation | 160° |
| Turret Rotation | 360° Continuous |
| Turning Radius – Outside Curb | 16 ft 9 in (5.1 m) |
| Travel Speed | 0 – 3.0 mph (0 – 4.83 km/h) |
| Controls – Boom Functions | Proportional |
| Controls – Drive | Proportional |
Dimensions 11 specs
| Height – Working (maximum) | 72 ft (21.95 m) |
|---|---|
| Height – Platform (maximum) | 66 ft (20.12 m) |
| Height – Stowed | 9 ft 3 in (2.82 m) |
| Length (overall) | 28 ft 11 in (8.81 m) |
| Width (maximum) | 7 ft 11 in (2.41 m) |
| Boom Angle – Above Horizontal | 75° + 15° Articulating |
| Std. Platform Dimensions | 72 in x 36 in x 44 in (1.83 m x 0.91 m x 1.12 m) |
| Wheelbase | 8 ft 0 in (2.44 m) |
| Wheel Track | 6 ft 7 in (2.01 m) |
| Turret Tailswing | 42 in (1.07 m) |
| Ground Clearance | 10 in (0.25 m) |
Weight 1 spec
| Approx. Shipping Weight | 25,000 lb (11,340 kg) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 40 gal (151 L) |
|---|---|
| Reservoir Capacity | 52 gal (197 L) |
