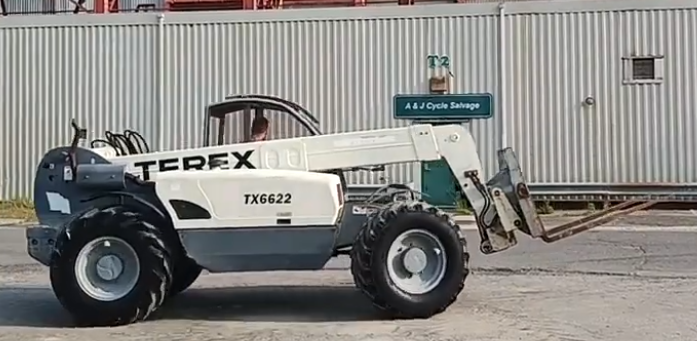

Terex Telelift TX66-22 Specs
Quick-reference specifications for the Terex Telelift TX66-22 telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 6,600 lb3,000 kg
- Maximum forward reach
- 12 ft 9 in3.89 m
- Operating weight with forks
- 13,230 lb6,000 kg
Performance 9 specs
| Maximum draw bar pull | 14,750 lb (6,689 kg) |
|---|---|
| Reach at maximum height | 30 in (.76 m) |
| Maximum forward reach | 12 ft 9 in (3.89 m) |
| Maximum lift capacity | 6,600 lb (3,000 kg) |
| Payload at maximum reach | 2,700 lb (1225 kg) |
| Fork-holder plate rotation | 135° |
| Maximum speed | 21 mph (33 km/h) |
| Forks – Type | FEM 2 |
| Forks – Section | 5.12 in x 1.77 in (130 x 45 mm) |
Dimensions 6 specs
| Inside/outside turn radius | 6 ft 8 in / 12 ft 9 in (2.03 / 3.89 m) |
|---|---|
| Maximum lifting height | 22 ft 5 in (6.83 m) |
| Payload at maximum height | 4,400 lb (2,000 kg) |
| Obstruction angle | 90° |
| Departure angle | 42° |
| Forks – Length | 48 in (1,200 mm) |
Weight 1 spec
| Operating weight with forks | 13,230 lb (6,000 kg) |
|---|
Power / Engine 3 specs
| Power @ 2,600 rpm (DIN 70020) | 80.5 hp (60 kW) |
|---|---|
| Tier II Deutz BF4M2011 | Tier II Deutz BF4M2011 |
| Fuel | 24.3 gal (92 L) |
Hydraulics / Fluids 1 spec
| Hydraulic oil | 27.7 gal (105 L) |
|---|
