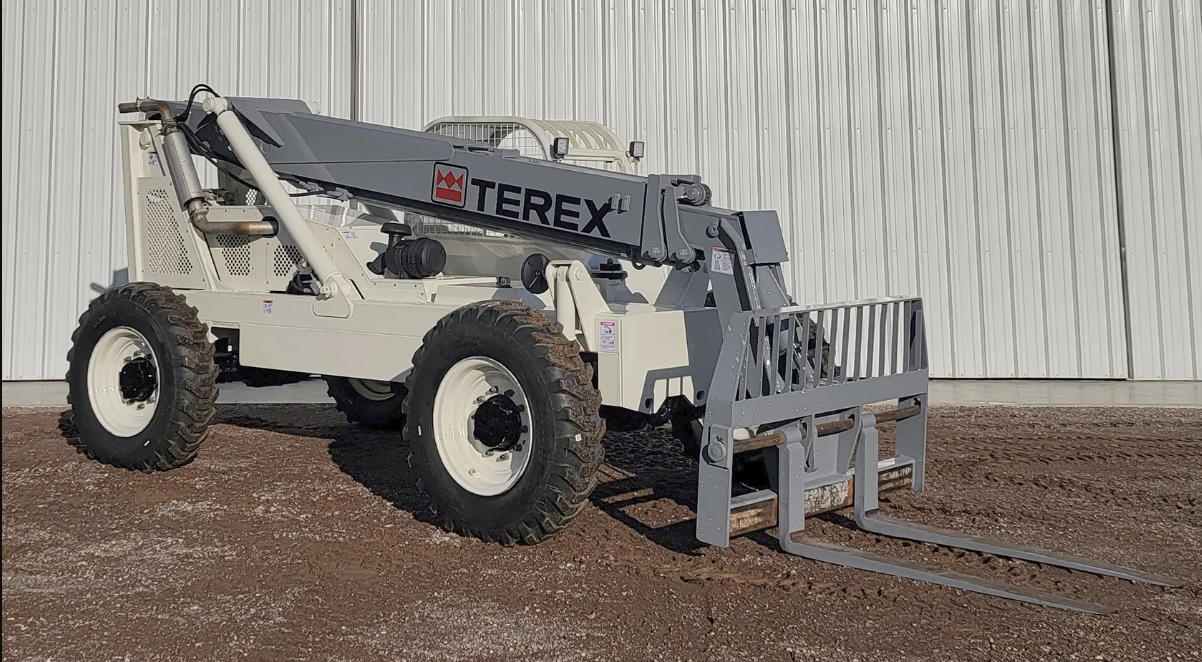

Terex TH636C Spec Sheet
Quick-reference specifications for the Terex TH636C. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum forward reach: 21′ (6.4 m)
Operating weight with forks: 21,080 lbs (9,562 kg)
Maximum lift capacity: 6,000 lbs (2,722 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Maximum forward reach | 21′ (6.4 m) |
|---|---|
| Maximum lift capacity | 6,000 lbs (2,722 kg) |
| Turning radius (outside tire) | 12′ 11″ (3.94 m) |
Dimensions
| Maximum lifting height | 36′ (11.0 m) |
|---|---|
| Reach at maximum height | 30″ (0.76m) |
| Payload at maximum height | 6,000 lbs (2,722 kg) |
| Wheelbase | 10′ 4″ (3.15 m) |
| Ground clearance | 1′ 5″ (.43 m) |
| Length | 48″ (1,200 mm) |
Weights & Electrical
| Operating weight with forks | 21,080 lbs (9,562 kg) |
|---|---|
| Payload at maximum reach | 2,000 lbs (905 kg) |
| Variable-displacement axial piston pump | 10 Micron filtration |
Powertrain & Systems
| NET ENGINE | 99 hp |
|---|---|
| Engine John Deere | 4045T |
| Transmission | 3 Speed Powershift/Torque Converter |
| Power assisted steering Three steering modes | 2-wheel, 4-wheel coordinated, |
| Tires 1300 x | 24-12 ply, calcium chloride solution filled |
| Operating Cab Structure conforms to ISO 8471 (ROPS) and ISO | 8449 (FOPS) |
| Fuel | 30 gal (113.6 L) |
Hydraulics & Capacities
| Hydraulic oil | 34 gal (128.7 L) |
|---|
