Forklift · Yale

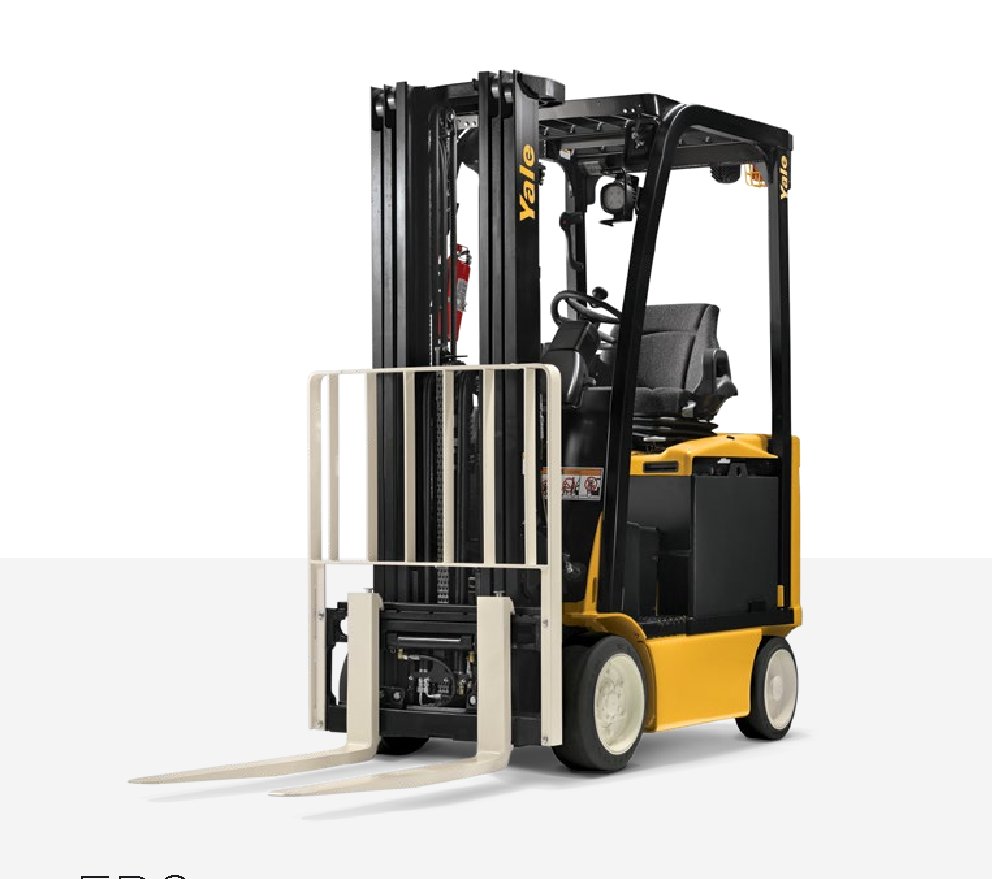

Yale ERC080VH Specs
Quick-reference specifications for the Yale ERC080VH forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 120 in3.05 m
- Gradeability – Full Load
- 36 V – 14.1%, 48 V – 17.8%, 80 V – 18.3%
Performance 9 specs
| Lift speed | Opt 2-stage FFL mast |
|---|---|
| Lower speed | Opt 2-stage FFL mast |
| Load Capacity | 8,000 lb (3,629 kg) |
| Load Center | 24 in (610 mm) |
| Maximum Lift Height | 120 in (3.05 m) |
| Travel Speed (Full Load) | 36 V – 9.7 mph, 48 V – 9.7 mph, 80 V – 9.7 mph |
| Hoisting Speed (with/without load) | 0.27/0.45 m/s |
| Gradeability – Full Load | 36 V – 14.1%, 48 V – 17.8%, 80 V – 18.3% |
| Turning Radius (outside) | 85.2 in (2.165 m) |
Dimensions 11 specs
| Overall Length | 8 ft 1 in (96.5 in / 2.45 m) |
|---|---|
| Overall Width (Standard Tread) | 47.2 in (1.20 m) |
| Overall Width (Wide Tread) | 50 in (1.27 m) |
| Overall Height (Mast Lowered) | 84.1 in (2.134 m) |
| Overhead Guard Height | 94 in (2.39 m) |
| Wheelbase | 62 in (1.575 m) |
| Fork Size | 2 x 4.9 x 42 in (50 x 125 x 1,067 mm) |
| Mast Tilt (Standard) | 5° forward / 5° backward |
| Mast Tilt (Optional) | 8° forward / 5° backward |
| Underclearance – Minimum (mast) | 3.8 in (96 mm) |
| Free Lift (Std 2-stage LFL mast) | 5 in (150 mm) |
Weight 5 specs
| Total Weight (Without Battery) | 11,070 lb (5,021 kg) |
|---|---|
| Battery Weight (Min) | 3,400 lb (1,542 kg) |
| Battery Weight (Max) | 4,800 lb (2,177 kg) |
| Weight Distribution – Full Load (Front) | 20,098 lb (9,117 kg) |
| Weight Distribution – Full Load (Rear) | 3,771 lb (1,710 kg) |
Power / Engine 1 spec
| Battery Voltage Options | 36 V, 48 V, 80 V |
|---|
Hydraulics / Fluids 3 specs
| Pump motor | 15 % rating |
|---|---|
| Auxiliary Hydraulic Function Max Operating Pressure | 2,248 psi |
| BatteryCompartment(WxLxH) | 45.4 x 39.2 x 24.4 in (1,152 x 995 x 620 mm) |
