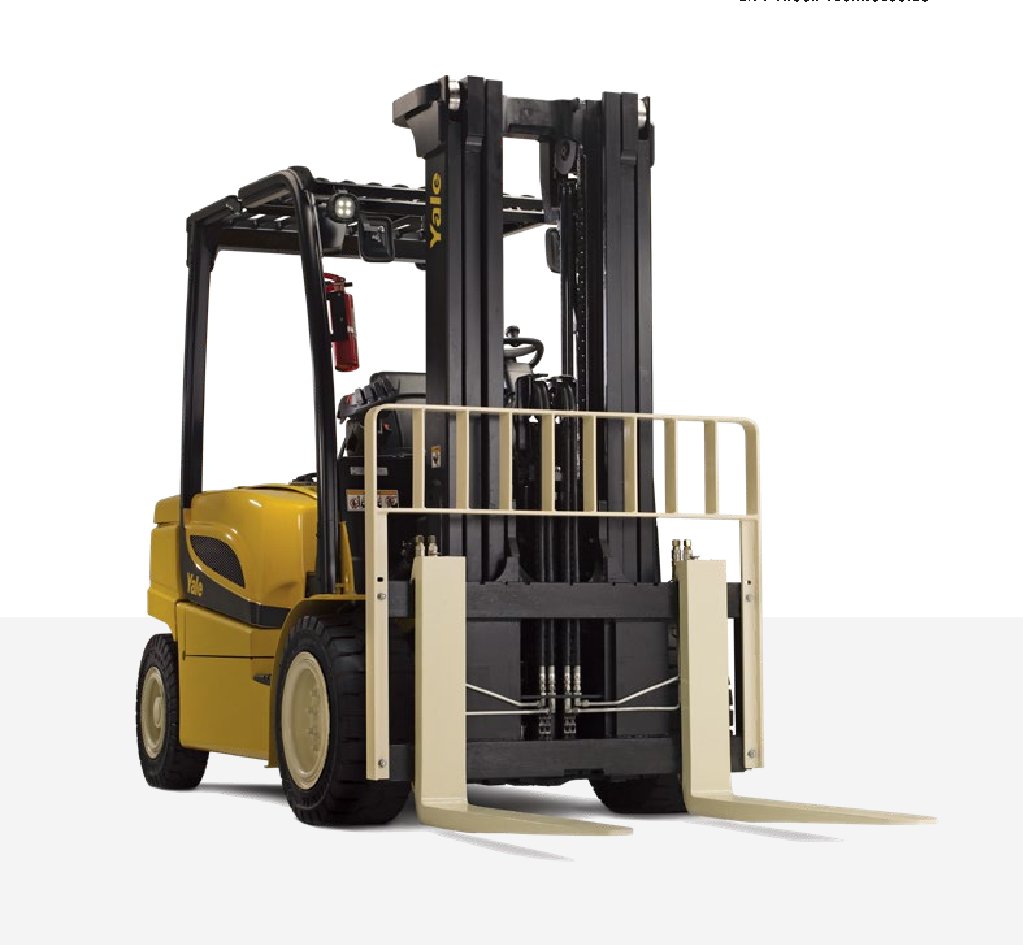

Yale ERP080VM Specs
Quick-reference specifications for the Yale ERP080VM forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 8000 lb3629 kg
- Gradeability 5 Minute rating NL/RL
- 23/15.6 %
Performance 18 specs
| Rated capacity | 8000 lb (3629 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Tread Drive/steer | See Tread Chart on page |
| Mast tilt Std Opt Opt | 6F/6B 6F/8B 6F/4B degrees |
| Outside turning radius | 94.9 in (2411 mm) |
| Travel speed Extended shift on NL/RL | 11.0/9.9 mph (17.7/15.9 km/h) |
| Travel speed Extended shift off NL/RL | 13.0/12.4 mph (21.0/20.0 km/h) |
| Lower speed Std 2-stg LFL mast NL/RL | 94/104 ft/min (0.48/0.53 m/sec) |
| Lower speed Opt 2-stg FFL Mast NL/RL | 75/91 ft/min (0.38/0.46 m/sec) |
| Lower speed Opt 3-stg FFL mast NL/RL | 77/98 ft/min (0.39/0.50 m/sec) |
| Gradeability 5 Minute rating NL/RL | 23/15.6 % |
| Gradeability 60 Minute rating NL/RL | 8.4/5.8 % |
| Drawbar pull 5 Minute rating NL/RL | 3985/3867 lbf |
| Drawbar pull 60 Minute rating NL/RL | 1475/1444 lbf |
| Brake Method of control Service/parking | Hydraulic/spring applied |
| Brake Method of operation Service/parking | Foot/automatic |
| Sound level Extended shift on | 68 dB (A) |
| Sound level (Measured per ANSI B56.11.5) Extended shift off | 69 dB (A) |
Dimensions 13 specs
| Tire type – cushion, solid, pneumatic, etc. Std/opt | Pneumatic/pneumatic shaped solid |
|---|---|
| Tire size (standard) Drive/steer | 250 x 15 20 Ply / 28 x 12.5-15 24 Ply / 355/50-15 |
| Mast – lowered height Std mast | 92 in (2320 mm) |
| Mast – extended height Std mast with/without LBR | 181/162 in (4591/4109 mm) |
| Overhead guard height | 92 in (2338 mm) |
| Tow pin height Vertical center of pin | 20.7 in (526 mm) |
| Forks Thickness x width x length | 2.0 x 4.9 x 48 in (50 x 125 x 1219 mm) |
| Load distance Center of wheel to face of forks | 20.6 in (523 mm) |
| Length to face of forks Chassis length | 114.5 in (2908 mm) |
| Wheelbase | 79.5 in (2020 mm) |
| Right angle stack | 163.9 in (4164 mm) |
| Step height | 19.3 in (490 mm) |
| Floor height | 33.1 in (840 mm) |
Power / Engine 9 specs
| Power/voltage | Electric/80 Volts |
|---|---|
| Ground clearance Vertical battery extraction | 7.2 / 7.0 in (183 / 177 mm) |
| Ground clearance Horizontal battery extraction | 6.6 / 6.3 in (167 / 161 mm) |
| Battery compartment Height w/Vertical battery removal | 31.8 in (808 mm) |
| Battery compartment Width | 40.8 in (1037 mm) |
| Battery compartment Length Actual (std/opt) | 39.6/33.8 in (1006/859 mm) |
| Truck weight Without battery NL | 11080 lb (5026 kg) |
| Traction motors (dual) 60 Minute rating Each | 19.7 hp (14.7 kW) |
| Traction motors Type/control method | Dual AC/transistor |
Hydraulics / Fluids 4 specs
| Pump motor 15 Minute rating | 48.3 hp (36 kW) |
|---|---|
| Pump motor Type/control method | AC/transistor |
| Attachment relief pressure | 2250 psi (155 bar) |
| Auxiliary oil flow 3rd and 4th function | 16 gal/min (60 l/min) |
