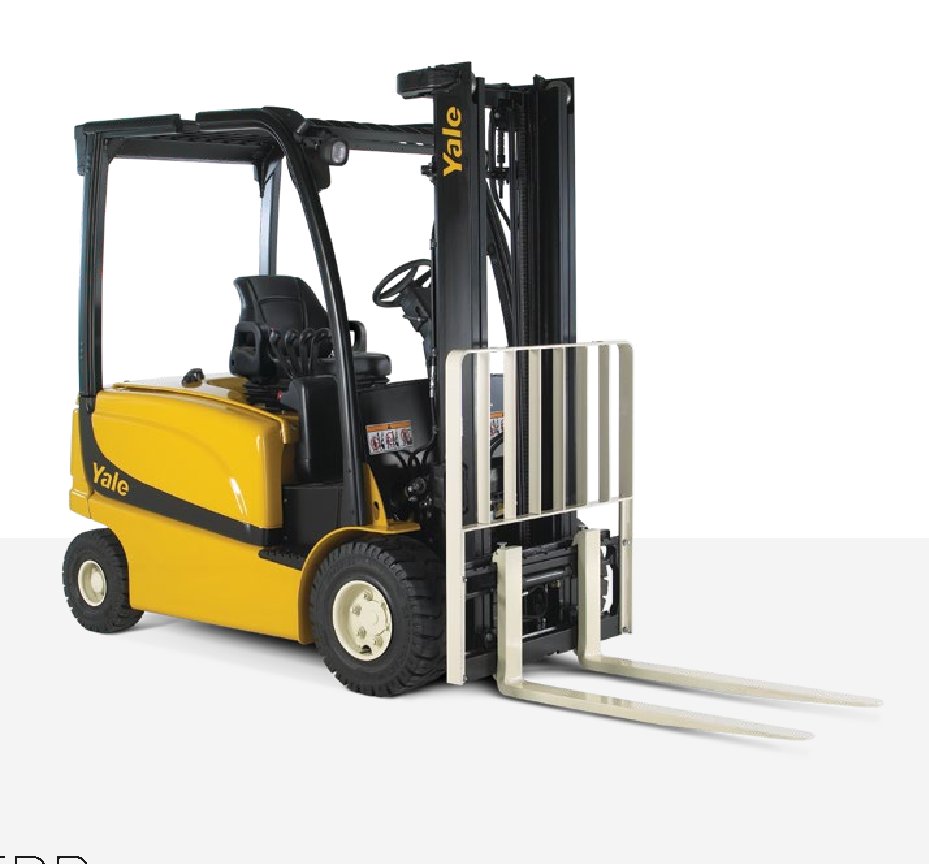

Yale ERP060VL Specs
Quick-reference specifications for the Yale ERP060VL forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 126 in3,200 mm
- Gradeability (loaded)
- 10%
Performance 13 specs
| Lift speed | Opt 2-stg FFL mast |
|---|---|
| Lower speed | Opt 2-stg FFL mast |
| Load Capacity | 6,000 lb (2,722 kg) |
| Load Center | 24 in (610 mm) |
| Maximum Lift Height | 126 in (3,200 mm) |
| Travel Speed (with load) | 18 km/h |
| Travel Speed (without load) | 21 km/h |
| Hoisting Speed (with load) | 0.37 m/s |
| Hoisting Speed (without load) | 0.63 m/s |
| Lowering Speed (with load) | 0.58 m/s |
| Turning Radius | 81.6 in outside (2.1 m) |
| Gradeability (loaded) | 10% |
| Gradeability (unladen) | 15% |
Dimensions 11 specs
| Overall Length to Fork Face | 98.1 in |
|---|---|
| Overall Length (truck) | 8 ft 1 in |
| Overall Height (mast lowered) | 87 in |
| Overall Height (truck) | 7 ft 7 in |
| Mast Lowered Height | 87 in |
| Overhead Guard Height | 86.3 in |
| Wheelbase | 68.9 in |
| Ground Clearance (mast minimum) | 3.9 in |
| Fork Size (T×W×L) | 2 × 4.9 × 42 in |
| Tire Size (drive) | 23 × 10-12 in |
| Tire Size (steer) | 18 × 7-8 in |
Weight 4 specs
| Total Weight (without battery) | 6,730 lb (3,053 kg) |
|---|---|
| Total Weight (with battery) | 7,143 lb |
| Battery Weight | 4.9 t |
| Weight Distribution – Full Load (Front/Rear) | 15,499 lb / 2,145 lb |
Power / Engine 6 specs
| Battery Voltage | 80 V |
|---|---|
| Drive Motor Power | 10 kW |
| Drive Motor (Standard) | 13.4 hp |
| Hoist Motor Power | 24 kW |
| Hoist Motor (Standard) | 21.5 hp |
| Hoist Motor (Premium) | 32.2 hp |
Hydraulics / Fluids 3 specs
| Tilt Range (standard) | 5° F / 5° B |
|---|---|
| Tilt Range (optional 1) | 10° F / 5° B |
| Tilt Range (optional 2) | 5° F / 6° B |
