Forklift · Yale

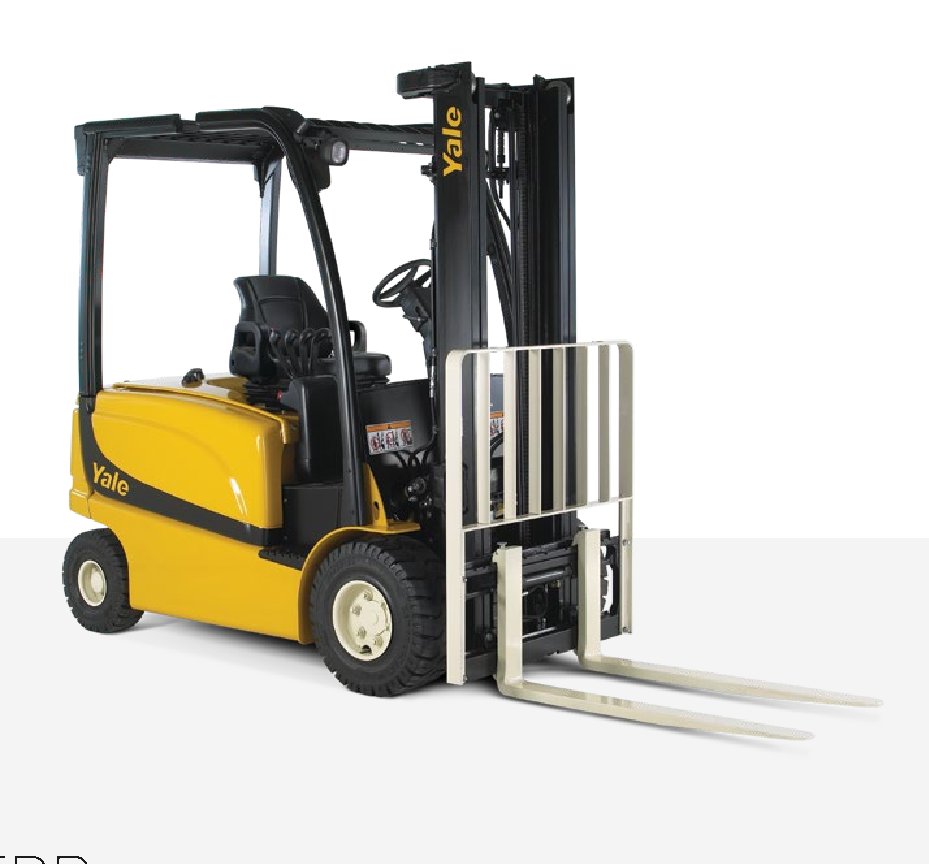

Yale ERP070VL Specs
Quick-reference specifications for the Yale ERP070VL forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 126 in3,200 mm
- Operating Weight
- 8,001 lb3,629 kg
- Gradeability – Full Load (Standard performance)
- 20%
Performance 10 specs
| Lift speed | Opt 2-stg FFL mast |
|---|---|
| Lower speed | Opt 2-stg FFL mast |
| Load Capacity | 7,000 lb (3,175 kg) |
| Maximum Lift Height | 126 in (3,200 mm) |
| Lift Speed – Full Load (Standard 2-stg LFL mast) | 61 ft/min (0.31 m/sec) |
| Lowering Speed – Full Load (Standard 2-stg LFL mast) | 114 ft/min (0.58 m/sec) |
| Gradeability – Full Load (Standard performance) | 20% |
| Maximum Travel Speed | 13 mph |
| Turning Radius (outside) | 84.2 in (2,139 mm) |
| Load Center | 24 in (610 mm) |
Dimensions 6 specs
| Length Overall | 8 ft 5 in (2,562 mm) |
|---|---|
| Width Overall | 4 ft 4 in (1,321 mm) |
| Height Overall | 7 ft 7 in (2,311 mm) |
| Mast Tilt Range | 5F/5B, 10F/5B, or 5F/6B degrees |
| Mast Lowered Height (Standard mast) | 87 in (2,192 mm) |
| Fork Size | 2 x 4.9 x 42 in (50 x 125 x 1,067 mm) |
Weight 1 spec
| Operating Weight | 8,001 lb (3,629 kg) |
|---|
Power / Engine 2 specs
| Battery Voltage | 80 V |
|---|---|
| Drive Motors | 13.4 hp AC motors (dual) |
