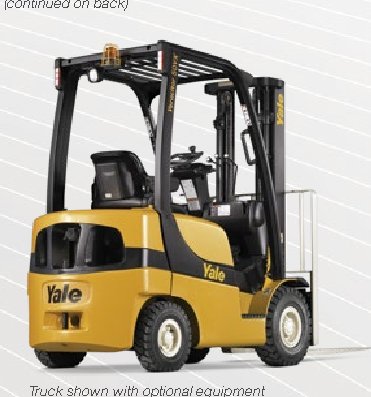

Yale GP050VX Specs
Quick-reference specifications for the Yale GP050VX forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 5000 lb2268 kg
Performance 10 specs
| Rated Capacity | 5000 lb (2268 kg) |
|---|---|
| Mast Tilt Angles, Forward/Backward | 6F/6B degrees |
| Turning Radius, Minimum Outside (OTR) | 87.2 in (2216 mm) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 120/124 ft/min (.61/.63 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 106/110 ft/min (.54/.56 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 112/116 ft/min (.57/.59 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 114/98 ft/min (.58/.50 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 98/83 ft/min (.50/.42 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 106/93 ft/min (.54/.47 m/s) |
| Maximum drawbar pull RL/NL – Kubota 2.4L Tier 4 Final | 5150/2249 lb (2340/1020 kg) |
Dimensions 17 specs
| Load Center, Distance | 24.0 in (610 mm) |
|---|---|
| Step Height | 15.0 in (382 mm) |
| Lift Height, Top of Fork (TOF) | 129 in (3292 mm) |
| Forks, Thickness x Width x Length | 1.6 X 3.9 X 42 in (40 X 100 X 1067 mm) |
| Fork Spread, Outside Dimensions | 43.3 in (1099 mm) |
| Length To Face of Forks | 100.7 in (2559 mm) |
| Overall Width, Standard Tread | 45.6 in (1157 mm) |
| Overall Width, Wide Tread | 51.9 in (1317 mm) |
| Height, Standard Mast – Lowered | 86 in (2170 mm) |
| Height, Standard Mast – Extended with LBR | 147 in (3715 mm) |
| Height, Standard Mast – Extended without LBR | 123 in (3100 mm) |
| Height, Standard Overhead Guard | 85.0 in (2160 mm) |
| Height, Optional Overhead Guard | 82 in (2093 mm) |
| Length, Center of Wheel to Face of Forks | 18.5 in (470 mm) |
| Tire Size, Front | 7.00 x 12 – 12 |
| Wheelbase | 63.9 in (1623 mm) |
| Ground Clearance, Center of Wheelbase NL | 6.3 in (160 mm) |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL) NL | 8399 lb (3810 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL) RL | 13399 lb (6078 kg) |
| Axle Loading, Static Front/Rear NL | 3776/4623 lb (1713/2097 kg) |
| Axle Loading, Static Front/Rear RL | 12105/1294 lb (5491/587 kg) |
Power / Engine 5 specs
| Travel Speed, Powershift Transmission RL/NL – PSI 2.4L | 11.5/11.8 mph (18.5/19.0 km/h) |
|---|---|
| Travel Speed, Powershift Transmission RL/NL – Kubota 2.5L | 10.4/10.6 mph (16.7/17.0 km/h) |
| Battery Type | Maintenance Free |
| Transmission Type, Standard | Electronic Powershift |
| Standard Speeds, Forward – Reverse | 1-1 |
