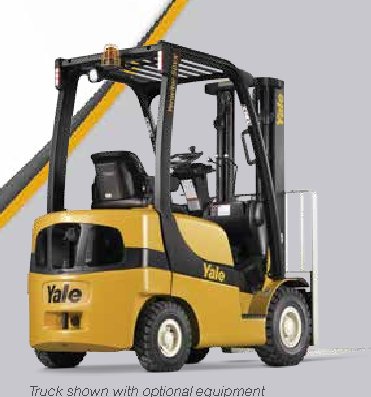

Yale GP060VX Specs
Quick-reference specifications for the Yale GP060VX forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 6000 lb2722 kg
- Gradeability, Standard Transmission @ 1 mph RL/NL
- 25/26 Percent %
Performance 11 specs
| Rated Capacity | 6000 lb (2722 kg) |
|---|---|
| Load Center, Distance | 24.0 in (610 mm) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 104/108 ft/min (.53/.55 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 102/102 ft/min (.52/.52 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 100/104 ft/min (.51/.53 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 104/93 ft/min (.53/.47 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 98/83 ft/min (.50/.42 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 114/87 ft/min (.58/.44 m/s) |
| Maximum drawbar pull RL/NL | 4497/2346 lb (2040/1064 kg) |
| Mast Tilt Angles, Forward/Backward | 6F/6B degrees |
| Turning Radius, Minimum Outside (OTR) | 89.6 in (2277 mm) |
Dimensions 17 specs
| Lift Height, Top of Fork (TOF) | 126 in (3209 mm) |
|---|---|
| Forks, Thickness x Width x Length | 2.0 X 4.9 X 42 in (50 X 125 X 1067 mm) |
| Fork Spread, Outside Dimensions | 43.3 in (1099 mm) |
| Length To Face of Forks | 103.4 in (2625 mm) |
| Overall Width, Standard Tread | 46.7 in (1186 mm) |
| Overall Width, Wide Tread | 52.0 in (1321 mm) |
| Height, Standard Mast – Lowered | 89 in (2245 mm) |
| Height, Standard Mast – Extended with LBR | 175 in (4330 mm) |
| Height, Standard Mast – Extended without LBR | 154 in (3905 mm) |
| Height, Standard Overhead Guard | 86.0 in (2185 mm) |
| Height, Optional Overhead Guard | 83 in (2118 mm) |
| Length, Center of Wheel to Face of Forks | 18.9 in (480 mm) |
| Step Height | 16 in (407 mm) |
| Wheelbase | 63.9 in (1623 mm) |
| Ground Clearance, Center of Wheelbase NL | 6.3 in (160 mm) |
| Tire Size, Front | 28 x 9 – 15 |
| Tire Size, Rear | 6.50 x 10 |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL) NL | 9943 lb (4510 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL) RL | 15943 lb (7232 kg) |
| Axle Loading, Static Front/Rear NL | 3865/6077 lb (1753/2757 kg) |
| Axle Loading, Static Front/Rear RL | 13905/2038 lb (6307/924 kg) |
Power / Engine 4 specs
| Travel Speed, Powershift Transmission RL/NL | 11.8/12.4 mph (19.0/20.0 km/h) |
|---|---|
| Drawbar Pull, Standard Transmission @ 1 mph RL/NL | 3845/2346 lb (1744/1064 kg) |
| Gradeability, Standard Transmission @ 1 mph RL/NL | 25/26 Percent % |
| Volts/Cold Cranking Amps | 12/475 v/cca |
