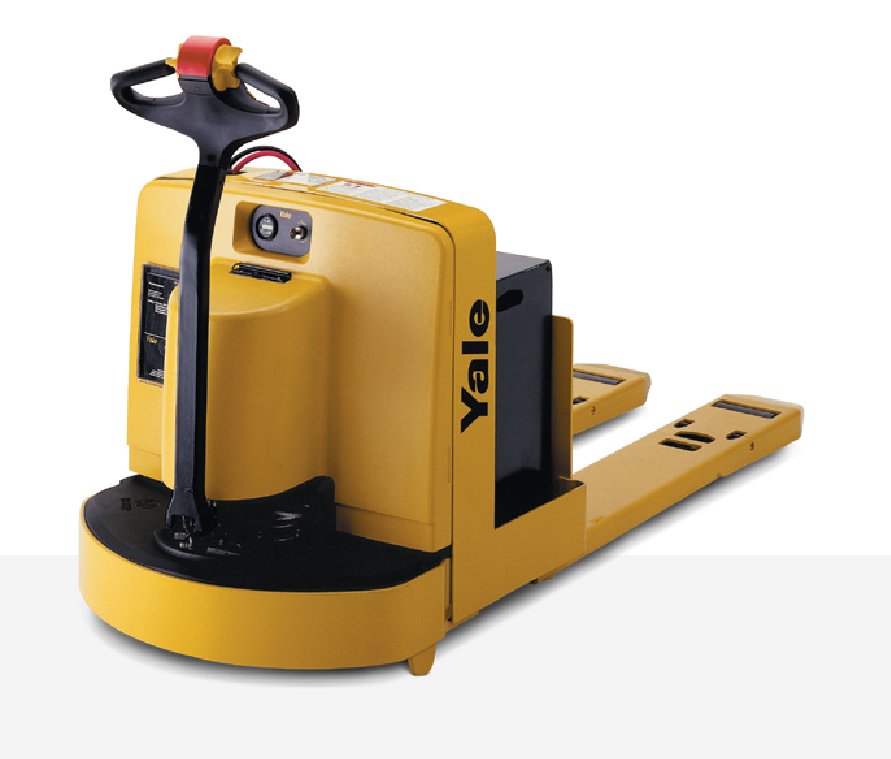

Yale MPW060E Specs
Quick-reference specifications for the Yale MPW060E forklift, taken from the manufacturer’s spec sheet.
- Capacity, rated
- 6000 lb2700 kg
Performance 2 specs
| Capacity, rated | 6000 lb (2700 kg) |
|---|---|
| Travel speed, NL / RL | 3.7 / 2.6 mph (6.0 / 4.2 km/h) |
Dimensions 5 specs
| Width across forks | 27.0 in (685 mm) |
|---|---|
| Chassis length | 34.4 in (874 mm) |
| Overall lift height (TOF) | 9.3 in (236 mm) |
| Overall fork lifting height | 6.0 in (154 mm) |
| Drive tire size (rubber) | 10.0 x 5.0 x 6.5 in |
Power / Engine 4 specs
| Battery compartment | 13.4 in (340 mm) |
|---|---|
| Battery compartment size, (L x W x H) | 32.0 x 13.4 x 31.0 in (812 x 340 x 787 mm) |
| Lift / lower speed, 24-Volt NL | 3.7 / 3.0 seconds |
| Lift / lower speed, 24-Volt RL | 4.7 / 1.8 seconds |
