Forklift · Yale

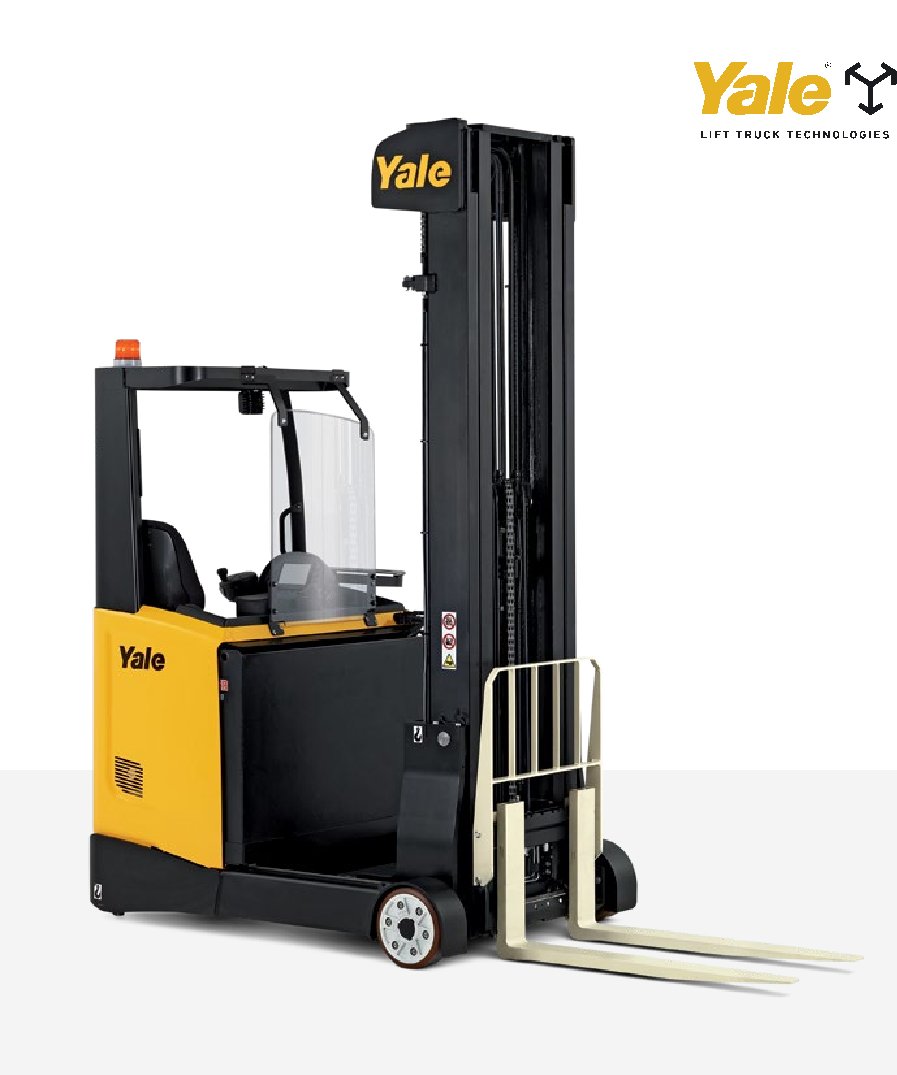

Yale MR16 Specs
Quick-reference specifications for the Yale MR16 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height (Min-Max)
- 196 in (5 m) – 423 in (10.7 m)
- Gradeability (full load)
- 12%
Performance 9 specs
| Load distance, center of drive axle to fork | 9,10,15,16 |
|---|---|
| Fork carriage ISO 2328, class/type A, B | 2A |
| Load Capacity (Rated Load) | 3,500 lb (1,600 kg) |
| Load Center | 24 in (610 mm) |
| Travel Speed (with load) | 8.7 mph |
| Lifting Speed (with load) | 82.7 ft/min |
| Lowering Speed (with load) | 108.3 ft/min |
| Turning Radius (outside) | 67.64 in (1,718 mm) |
| Gradeability (full load) | 12% |
Dimensions 10 specs
| Overall Length | 93.66 in |
|---|---|
| Overall Width | 49.8 in |
| Length to Fork Face | 48.39 in |
| Overhead Guard Height | 85.63 in |
| Mast Lowered Height (Min-Max) | 87 in – 165 in |
| Maximum Lift Height (Min-Max) | 196 in (5 m) – 423 in (10.7 m) |
| Free-Lift Height (Min-Max) | 64 in – 142 in |
| ForkSize(TxWxL) | 1.6 x 4.7 x 45.3 in |
| Wheelbase | 57.09 in |
| Turning Radius | 1,718 mm |
Weight 2 specs
| Axle loading, NL front/rear | 4 |
|---|---|
| Total Weight (without battery) | 6,971 lb (3,162 kg) |
Power / Engine 3 specs
| Battery weight | 8 |
|---|---|
| Battery Voltage | 48 V |
| Traction Motor | 9.6 kW |
Hydraulics / Fluids 2 specs
| Operating Pressure for Attachments | 180 psi |
|---|---|
| Max Flow Rate for Attachments | 20 gal/min |
