Forklift · Yale

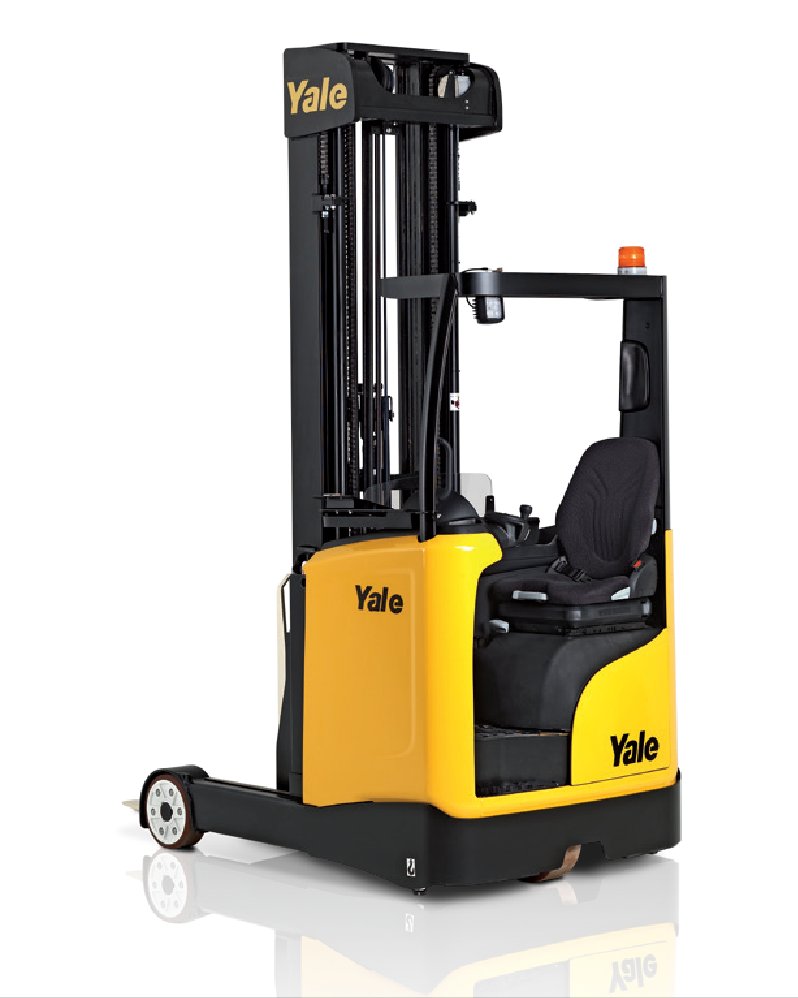

Yale MR20 Specs
Quick-reference specifications for the Yale MR20 forklift, from the manufacturer’s spec sheet and published specifications.
Performance 9 specs
| Adjustable steering column | n |
|---|---|
| Automatic park brake Yalestop | n |
| Load Capacity (Nominal Load at COG) | 4,409 lb (2 t) |
| Travel Speed with Load | 8.1 mph (13 km/h) |
| Travel Speed without Load | 8.1 mph (13 km/h) |
| Hoisting Speed with Load | 0.28 m/s |
| Hoisting Speed without Load | 0.35 m/s |
| Lowering Speed with Load | 0.5 m/s |
| Lowering Speed without Load | 0.51 m/s |
Dimensions 6 specs
| Chassis width (max) | MR20 |
|---|---|
| Soft stop on lowering. Height controlled | MR25 /MR16HD/MR20HD. |
| Total Width | 50 in (1,270 mm) |
| Construction Height (Mast Lowered) | 107 in (2,725 mm) |
| Lifting Height | 21 ft (6.4 m) |
| Turning Radius | 5.89 ft (1.797 m) |
Weight 2 specs
| Total Weight | 7,650 lb (3.47 t) |
|---|---|
| Battery Weight | 2,072 lb (0.94 t) |
Power / Engine 3 specs
| Voltage | 48 V |
|---|---|
| Traction Motor | 6.4 kW |
| Hoist Motor | 14 kW |
