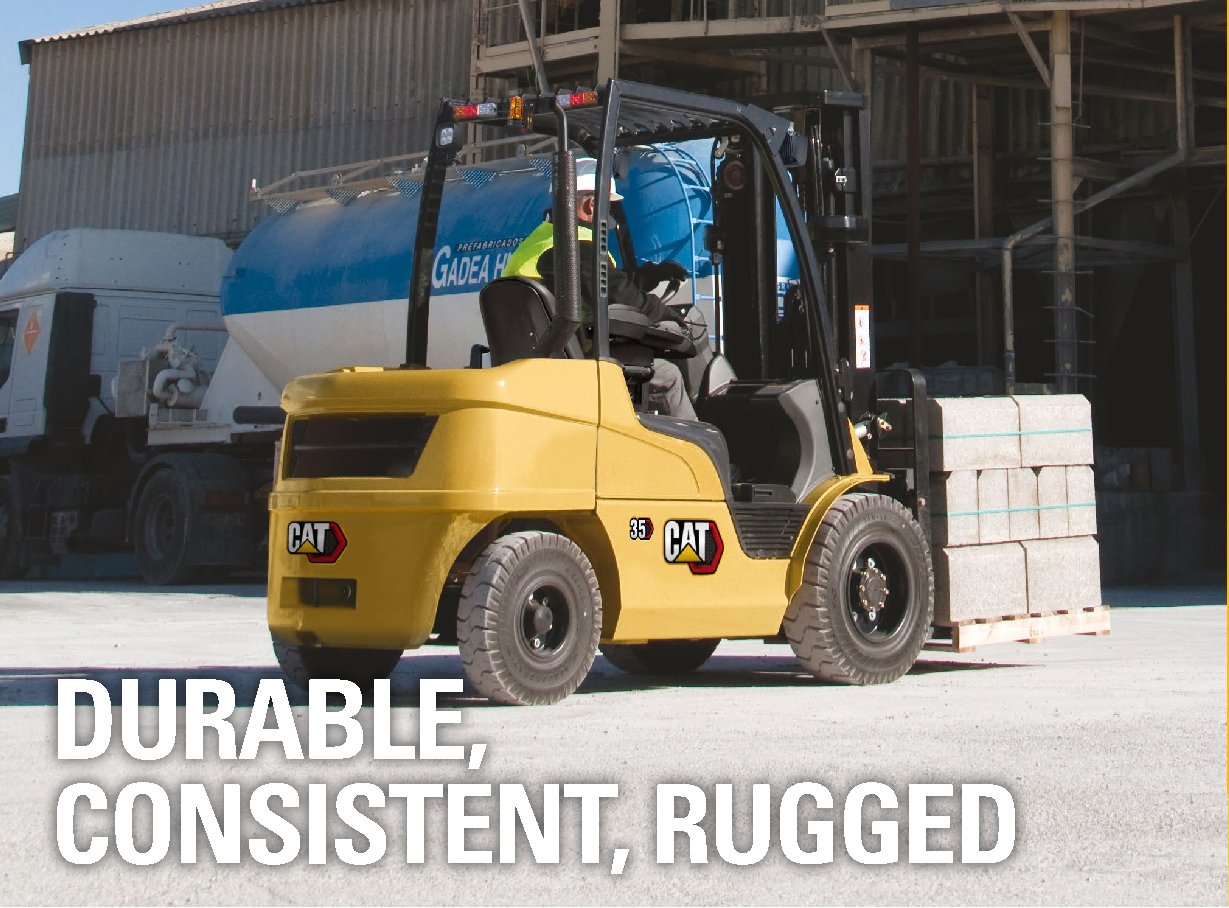

Caterpillar DP35N Specs
Quick-reference specifications for the Caterpillar DP35N forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 131.5 in3.0 m
Performance 10 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 7,000 lb (3,500 kg) |
| Load Center | 24 in (500 mm) |
| Travel Speed – Loaded | 10.3 mph (16.5 km/h) |
| Travel Speed – Empty | 11.2 mph (18.0 km/h) |
| Lift Speed – Loaded | 80.7 fpm (0.43 m/s) |
| Lift Speed – Empty | 84.6 fpm (0.46 m/s) |
| Lowering Speed – Loaded | 98.4 fpm (0.42 m/s) |
| Maximum Drawbar Pull | 4,140 lb |
| Maximum Climbing Ability | 36% |
Dimensions 11 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Maximum Lift Height | 131.5 in (3.0 m) |
| Length to Fork Face | 110 in (2,790 mm) |
| Width with Standard Tires | 46.7 in (1,187 mm) |
| Height to Top of Overhead Guard | 84.3 in (2,140 mm) |
| Minimum Turning Radius | 96.1 in (2.44 m) |
| Wheelbase | 66.9 in (1,700 mm) |
| Total Width | 66.5 in (1,690 mm) |
| Construction Height | 83.9 in (2,130 mm) |
| Tilt Forward | 6.0 degrees |
| Tilt Back | 10.0 degrees |
Weight 2 specs
| Machine Weight (standard mast, no attachment) | 10,590 lb (4,800 kg) |
|---|---|
| Machine Weight | 10,450 lb (4.74 t) |
Power / Engine 5 specs
| Engine Type | S4S or 4EG |
|---|---|
| Horsepower | 48 hp @ 2,250 rpm (35.3 kW) |
| Torque | 131 lb-ft @ 1,800 rpm |
| Number of Cylinders | 4 |
| Fuel Tank Capacity | 0.87 gal (3.3 L) |
Hydraulics / Fluids 3 specs
| Battery Voltage | 12 V |
|---|---|
| Front Tire Size | 28x9x15-12PR |
| Rear Tire Size | 6.50 x 10-12PR |
