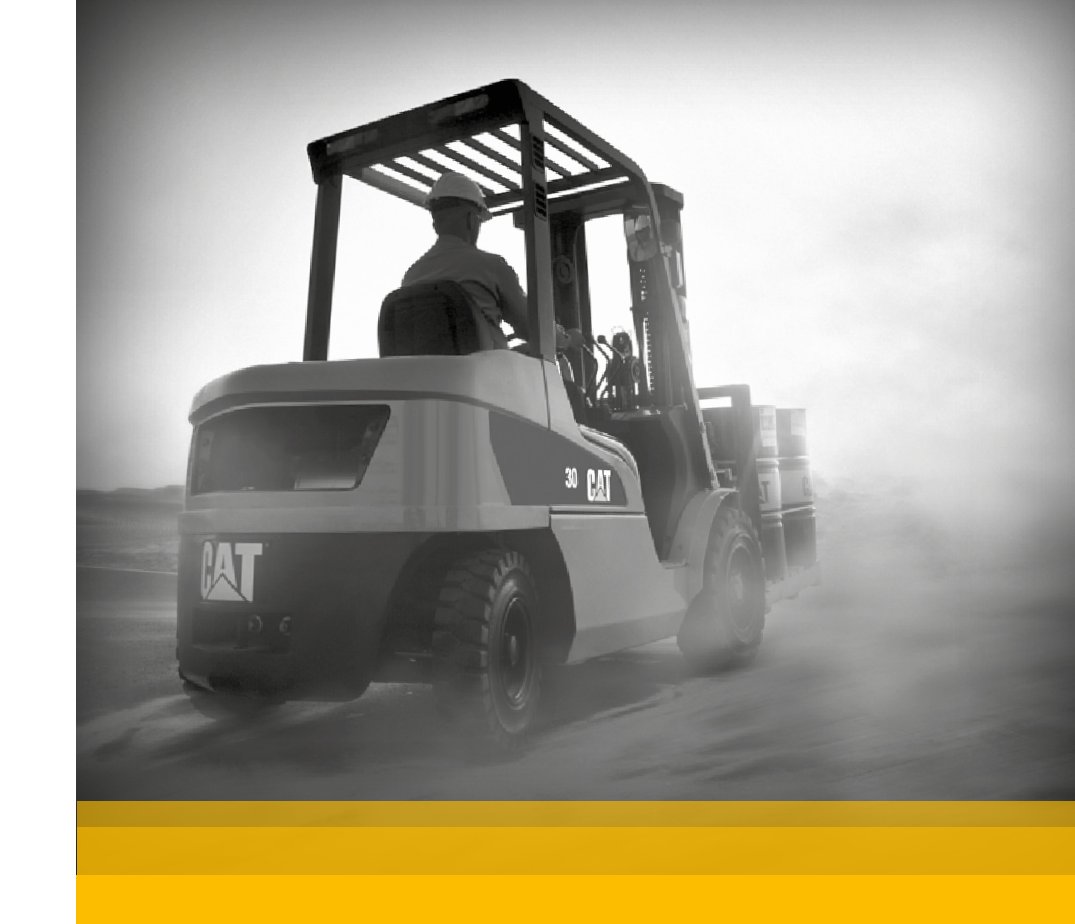

Caterpillar DP35NT Specs
Quick-reference specifications for the Caterpillar DP35NT forklift, taken from the manufacturer’s spec sheet.
Performance 13 specs
| Load capacity (Q) | 3500 kg |
|---|---|
| Load centre distance (c) | 500 mm |
| Mast tilt, forwards/backwards (∂/ß) | 6 / 12 ° |
| Minimum distance between centers of rotation (b13) | 780 mm |
| Travel speed, with/without load | 19 / 19.5 km/h |
| Lifting speed, with/without load | 0.42 / 0.45 m/s |
| Lowering speed, with/without load | 0.42 / 0.40 m/s |
| Rated drawbar pull, with/without load (N) | 16700/16600 N |
| Service brakes | Hydraulic |
| Rated speed to DIN 70 020 (rpm) | 2250 rpm |
| Operating pressure for attachments (bar) | 180 bar |
| Oil flow for attachments (l/min) | 73 l/min |
| Noise level, value at operator’s ear (EN 12053) (dB(A)) | 78 dB (A) |
Dimensions 19 specs
| Wheelbase (y) | 1700 mm |
|---|---|
| Tyre dimensions, front | 250-15 -12PR |
| Tyre dimensions, rear | 6.50-10-12PR |
| Track width (centre of tyres), front (b10) | 1060 mm |
| Track width (centre of tyres), rear (b11) | 980 mm |
| Height with mast lowered (h1) | 2130 mm |
| Free lift (h2) | 145 mm |
| Lift height (h3) | 3000 mm |
| Overall height with mast raised (h4) | 4055 mm |
| Height to top of overhead guard (h6) | 2103 mm |
| Seat height (h7) | 988 mm |
| Tow coupling height (h10) | 340 mm |
| Overall length (l1) | 3865 mm |
| Length to fork face (includes fork thickness) (l2) | 2795 mm |
| Overall width (b1/b2) | 1290/1710 mm |
| Fork dimensions (thickness, width, length) (s,e,l) | 45x122x1070 mm |
| Fork carriage to DIN 15 173 A/B/no | 3A |
| Fork carriage width (b3) | 1000 mm |
| Turning circle radius (Wa) | 2440 mm |
Power / Engine 1 spec
| Power source | Diesel |
|---|
