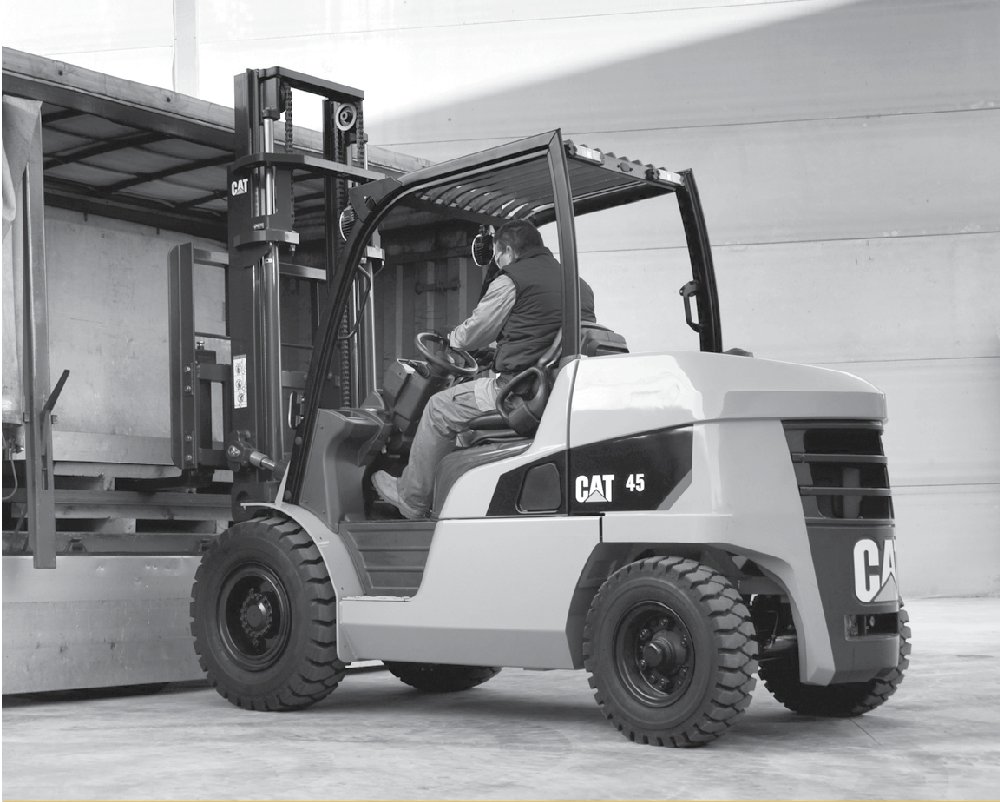

Caterpillar DP40 Specs

Quick-reference specifications for the Caterpillar DP40 forklift, taken from the manufacturer’s spec sheet.

Performance 12 specs

Load capacity	4000 kg
Load center distance	500 mm
Mast tilt, forwards/backwards	6/12 °
Minimum distance between centres of rotation	836 mm
Travel speed, with/without load	21.5/22.0 km/h
Lifting speed, with/without load	0.55/0.61 m/s
Lowering speed, with/without load	0.5/0.5 m/s
Rated drawbar pull, with/without load (@1.6 km/h)	27000/17400 N
Gradeability, with/without load (@1.6 km/h)	29/26 %
Acceleration time (10 metres) with/without load	4.20/3.70 s
Rated speed to DIN 70 020	2300 rpm
Noise level, value at operator’s ear (EN 12053)	84 dB (A)

Wheelbase	1850 mm
Tyre dimensions, front	8.25-15-14PR
Tyre dimensions, rear	7.00-12-12PR
Track width (center of tyres), front	1175 mm
Track width (center of tyres), rear	1180 mm
Height with mast lowered (see tables)	2320 mm
Free lift (see tables)	150 mm
Lift height (see tables)	3300 mm
Overall height with mast raised	4430 mm
Height to top of overhead guard	2250 mm
Seat height	1082 mm
Tow coupling height	395 mm
Overall length	4220 mm
Length to fork face (includes fork thickness)	3000 mm
Overall width	1415/1965 mm
Fork dimensions (thickness, width, length)	50/150/1220 mm
Fork carriage to DIN 15 173 A/B/no	3A
Fork carriage width	1190 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	4357 mm
Working aisle width with 800 x1200 mm pallets, lengthwise	4157 mm
Turning circle radius	2580 mm

Fuel consumption according to VDI 60 cycle	7.9 l/h

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
Maximum operating pressure for attachments	191 bar
Oil flow for attachments	80 l/min
