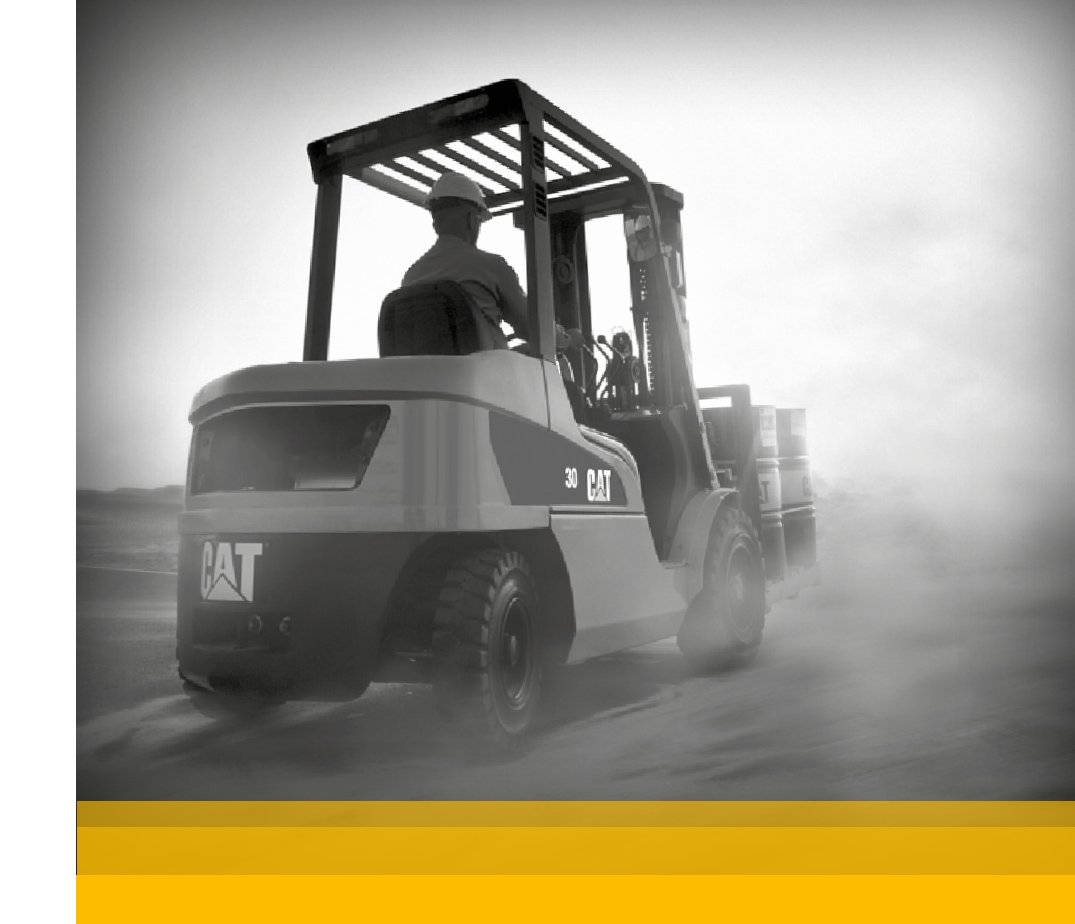

Caterpillar GP25NT Specs
Quick-reference specifications for the Caterpillar GP25NT forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load
- 24/42 %
Performance 10 specs
| Load capacity | 2500 kg |
|---|---|
| Load centre distance | 500 mm |
| Minimum distance between centers of rotation | 715 mm |
| Travel speed, with/without load | 19 / 19.5 km/h |
| Lifting speed, with/without load | 0.52 / 0.60 m/s |
| Lowering speed, with/without load | 0.50 / 0.50 m/s |
| Rated drawbar pull, with/without load | 14100/14000 N |
| Gradeability, with/without load | 24/42 % |
| Rated speed to DIN 70 020 | 2200 rpm |
| Noise level, value at operator’s ear (EN 12053) | 79 dB (A) |
Dimensions 21 specs
| Wheelbase | 1600 mm |
|---|---|
| Tyre dimensions, front | 7.00-12-12PR |
| Tyre dimensions, rear | 6.00-9 -10PR |
| Track width (centre of tyres), front | 960 mm |
| Track width (centre of tyres), rear | 980 mm |
| Height with mast lowered | 1990 mm |
| Free lift | 140 mm |
| Lift height | 3000 mm |
| Overall height with mast raised | 4055 mm |
| Height to top of overhead guard | 2074 mm |
| Seat height | 938 mm |
| Tow coupling height | 310 mm |
| Overall length | 3480 mm |
| Length to fork face (includes fork thickness) | 2560 mm |
| Overall width | 1150 / 1640 mm |
| Fork dimensions (thickness, width, length) | 45x100x920 mm |
| Fork carriage to DIN 15 173 A/B/no | 2A |
| Fork carriage width | 1000 mm |
| Working aisle width with 1000 x1200 mm pallets, crosswise | 3885 mm |
| Working aisle width with 800 x1200 mm pallets, crosswise | 3685 mm |
| Turning circle radius | 2230 mm |
Hydraulics / Fluids 3 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Operating pressure for attachments | 180 bar |
| Oil flow for attachments | 68 l/min |
