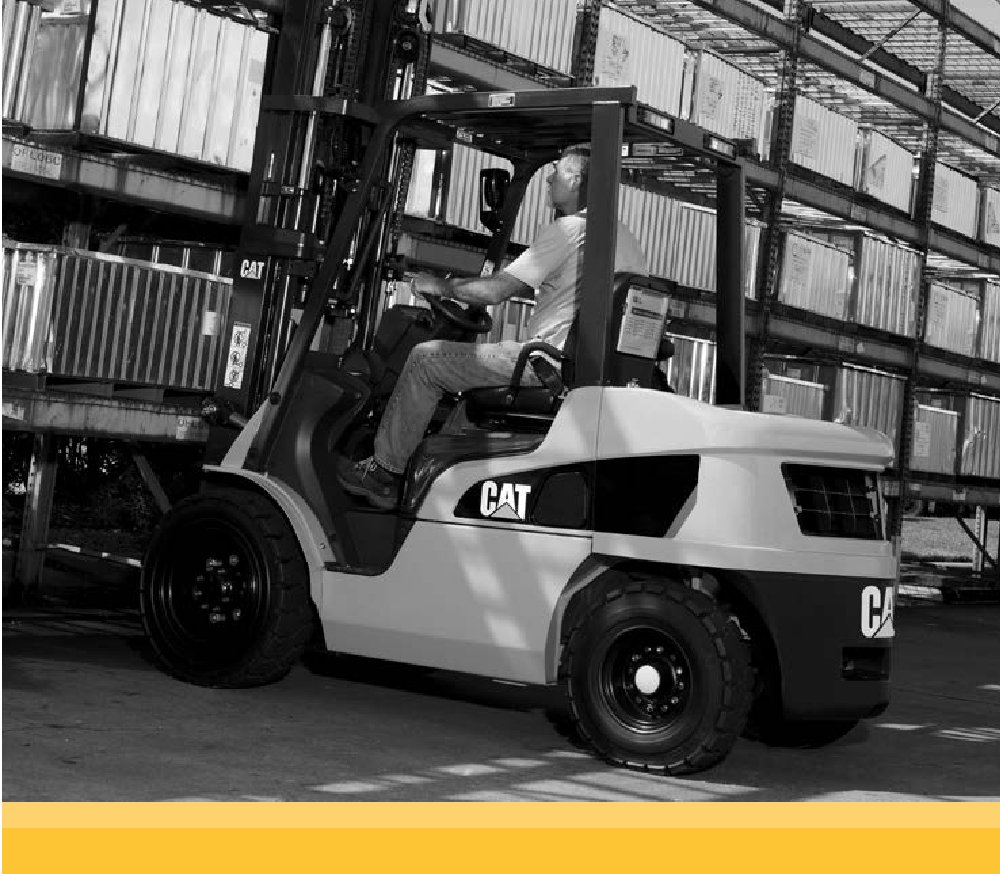

Caterpillar GP25NM Specs

Quick-reference specifications for the Caterpillar GP25NM forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity	2500 kg
Load centre distance	500 mm
Mast tilt, forwards/backwards	6 / 10 °
Minimum distance between centres of rotation	715 mm
Travel speed, with/without load	17/18.5 km/h
Lifting speed, with/without load	0.57/0.58 m/s
Lowering speed, with/without load	0.50/0.50 m/s
Rated drawbar pull, with/without load	16481/- N
Gradeability, with/without load	39.8/16.5 %
Rated speed to DIN 70 020	2700 rpm
Noise level, value at operator’s ear (EN 12053)	75.5 dB (A)

Wheelbase	1600 mm
Tyre dimensions, front	7.00-12-12PR
Tyre dimensions, rear	6.00-9-10PR
Track width (centre of tyres), front	960 mm
Track width (centre of tyres), rear	980 mm
Height with mast lowered (see tables)	2150 mm
Free lift (see tables)	140 mm
Lift height (see tables)	3340 mm
Overall height with mast raised	4570 mm
Height to top of overhead guard	2105 mm
Seat height	1160 mm
Tow coupling height	310 mm
Overall length	3620 mm
Length to fork face (includes fork thickness)	2550 mm
Overall width	1160/1640 mm
Fork dimensions (thickness, width, length)	40 x 100 x 1070 mm
Fork carriage to DIN 15 173 A/B/no	2A
Fork carriage width	1000 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	3885 mm
Working aisle width with 800 x1200 mm pallets, lengthwise	4085 mm
Turning circle radius	2230 mm

Power source: (battery, diesel, LP gas, petrol)	Petrol/LP gas

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic
Maximum operating pressure for attachments	180 bar
Oil flow for attachments	68 l/min
