Forklift · Caterpillar

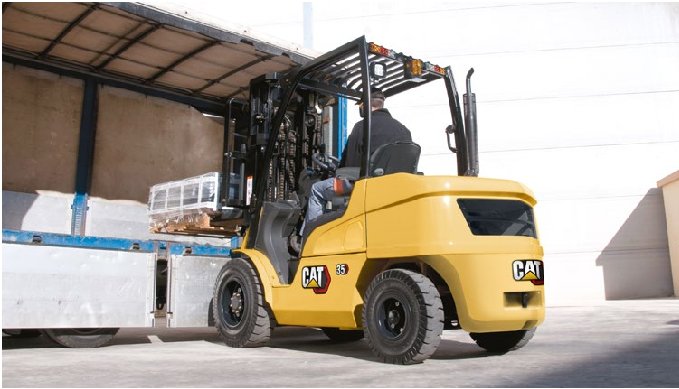

Caterpillar GP30 Specs
Quick-reference specifications for the Caterpillar GP30 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 187 in4.75 m
- Maximum Gradeability (loaded/empty)
- 24% / 22%
Performance 9 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 6,000 lb (2,722 kg) |
| Maximum Lift Height | 187 in (4.75 m) |
| Rated Horsepower @ rpm (SAE) | 57 hp |
| Travel Speed (loaded/empty) | 10.5 mph / 11.8 mph (16.9 km/h / 19 km/h) |
| Hoisting Speed (with/without load) | 0.52/0.53 m/s |
| Lowering Speed (with load) | 0.53 m/s |
| Maximum Gradeability (loaded/empty) | 24% / 22% |
| Turning Radius (minimum outside) | 96.3 in (2.44 m) |
Dimensions 10 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Overall Length | 149.8 in (3,805 mm) |
| Overall Width (outside tires) | 50.6 in (1,085 mm) |
| Overall Height (lowered mast) | 85.5 in (2,170 mm) |
| Overall Height (to top of overhead guard) | 83.2 in (2,113 mm) |
| Carriage Width | 66 in (1,676 mm) |
| Control Handle Height (Raised) | 84 in (2,134 mm) |
| Wheelbase | 68.9 in (1,750 mm) |
| Fork Length | 46 in (1,168 mm) |
| Load Center | 24 in (610 mm) |
Weight 2 specs
| Total Weight (Without Battery) | 10,300 lb (4,672 kg) |
|---|---|
| Weight (Alternative Spec) | 9,400 lb (4,263 kg) |
Power / Engine 4 specs
| Engine Type | 4-Cylinder LPG |
|---|---|
| Engine Model | GCT GK25E |
| Number of Cylinders | 4 |
| Engine Power | 63 hp (46.9 kW) |
Hydraulics / Fluids 2 specs
| Tire Size (Front) | 28X9-15 in |
|---|---|
| Tire Size (Rear) | 6.50-10 in |
