Forklift · Caterpillar

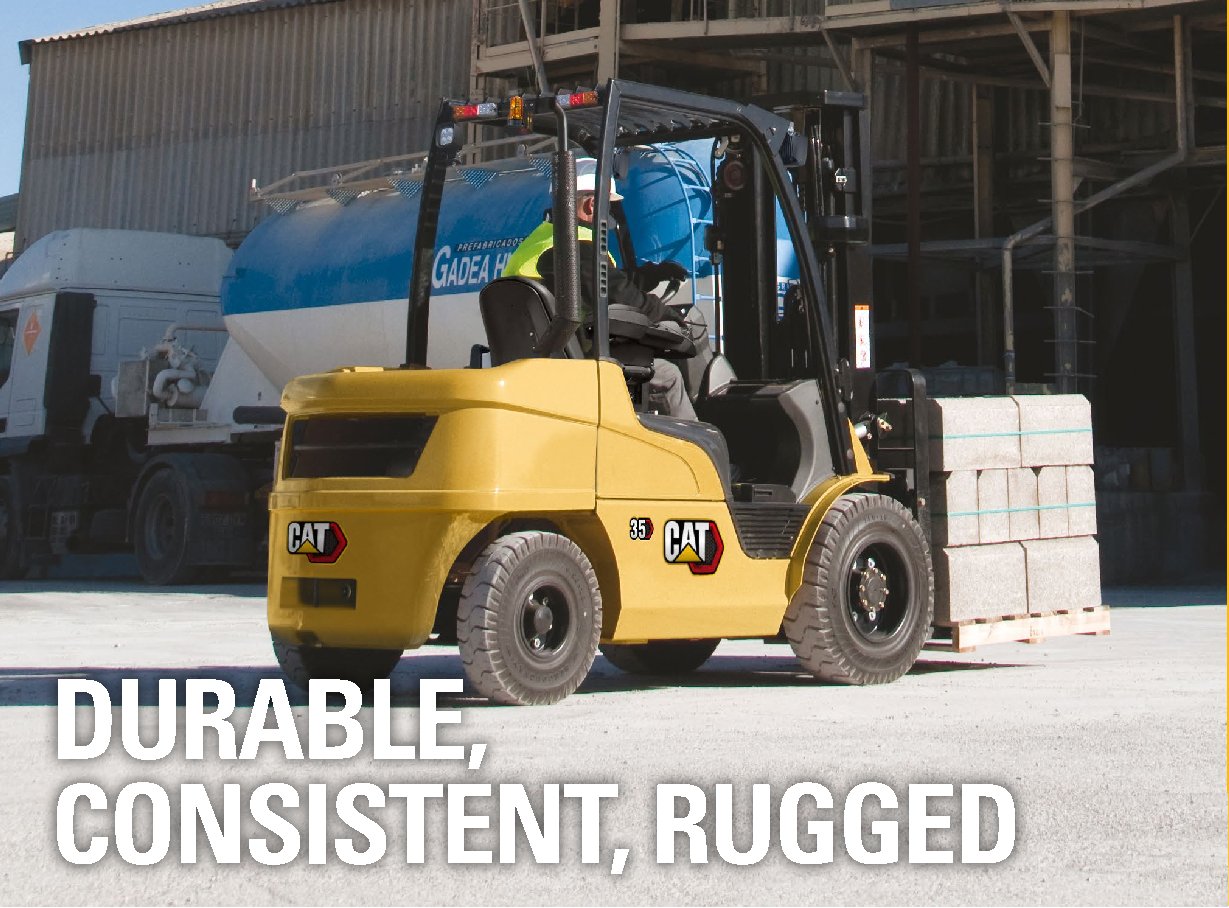

Caterpillar GP30N Specs
Quick-reference specifications for the Caterpillar GP30N forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 10.1 ft3.0 m
Performance 9 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 6,000 lb (3,000 kg) |
| Maximum Lift Height | 10.1 ft (3.0 m) |
| Load Center | 24 in (500 mm) |
| Travel Speed (with/without load) | 11.8 mph / 12.1 mph (19 km/h / 19.5 km/h) |
| Hoisting Speed (with/without load) | 1.71 ft/s / 1.74 ft/s (0.52 m/s / 0.53 m/s) |
| Lowering Speed (with load) | 1.74 ft/s (0.53 m/s) |
| Turning Radius | 93.7 in (2.38 m) |
| Mast Tilt | 6° forward / 10° backward |
Dimensions 5 specs
| Fork carriage to DIN | 15 173 A/B/no |
|---|---|
| Overall Width | 46.7 in (1,187 mm) |
| Height to Top of Overhead Guard | 83.7 in (2,125 mm) |
| Wheelbase | 66.9 in (1,700 mm) |
| Construction Height | 79.3 in (2,015 mm) |
Weight 1 spec
| Weight (with standard mast, no attachment) | 9,400 lb (4,260 kg) |
|---|
Power / Engine 3 specs
| Engine Type | GK25E |
|---|---|
| Engine Power | 62.8 hp (46.9 kW) |
| Cylinders | 4 |
Hydraulics / Fluids 2 specs
| Front Tire Size | 28x9x15-12PR |
|---|---|
| Rear Tire Size | 6.50×10-10PR |
