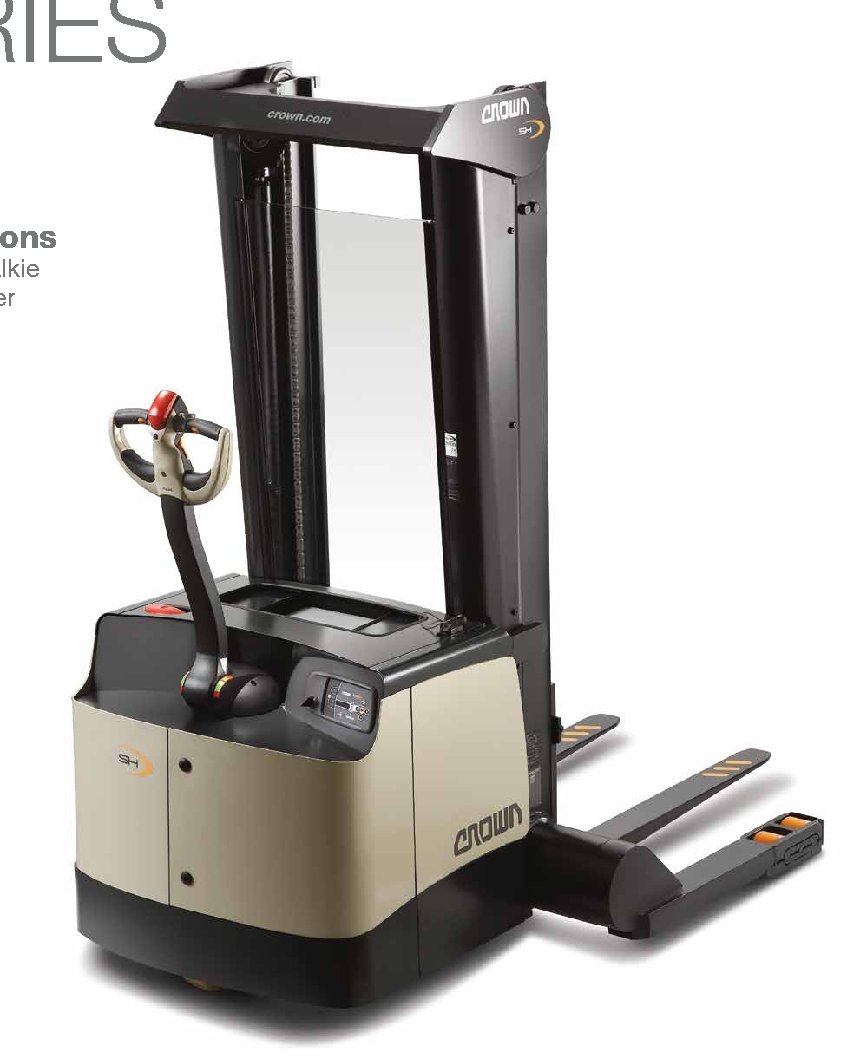

Crown SH5520-40 Specs
Quick-reference specifications for the Crown SH5520-40 forklift, taken from the manufacturer’s spec sheet.
Performance 6 specs
| Load Center | 24 in (600 mm) |
|---|---|
| Wheels (x = driven) Load / Drive | 4 / 1x |
| Turning Radius | 58.2 in (1480 mm) |
| Travel Speeds Empty / Loaded | 3.7 / 3.4 mph (5.9 / 5.4 km/h) |
| Lift Speeds Empty / Loaded | 48.4 / 29.5 fpm (.245 / .145 m/s) |
| Lowering Speeds Empty / Loaded | 50 / 50 fpm (.250 / .250 m/s) |
Dimensions 8 specs
| Tire Type Load / Drive | Poly / Vulkollan |
|---|---|
| Head Length | 36.8 in (935 mm) |
| Wheelbase | 51.4 in (1305 mm) |
| ForksStandardLxWxT | 36 x 4 x 1.75 in (915 x 102 x 44 mm) |
| Cable Lead Length / Connector Position | 20 / B in (510 / B mm) |
| Lift Height – TL 127.5 | 127.5 in (3235 mm) |
| Lift Height – TL 150.5 | 150.5 in (3820 mm) |
| Lift Height – TT 156 | 156 in (3960 mm) |
Power / Engine 3 specs
| Power | Electric 24 Volts |
|---|---|
| Battery Min Weight / Max Amp | 510 / 300 lb (235 / 290 kg) |
| Max Battery Size W x L x H | 6.62 x 34.37 x 24.8 in (168 x 873 x 630 mm) |
