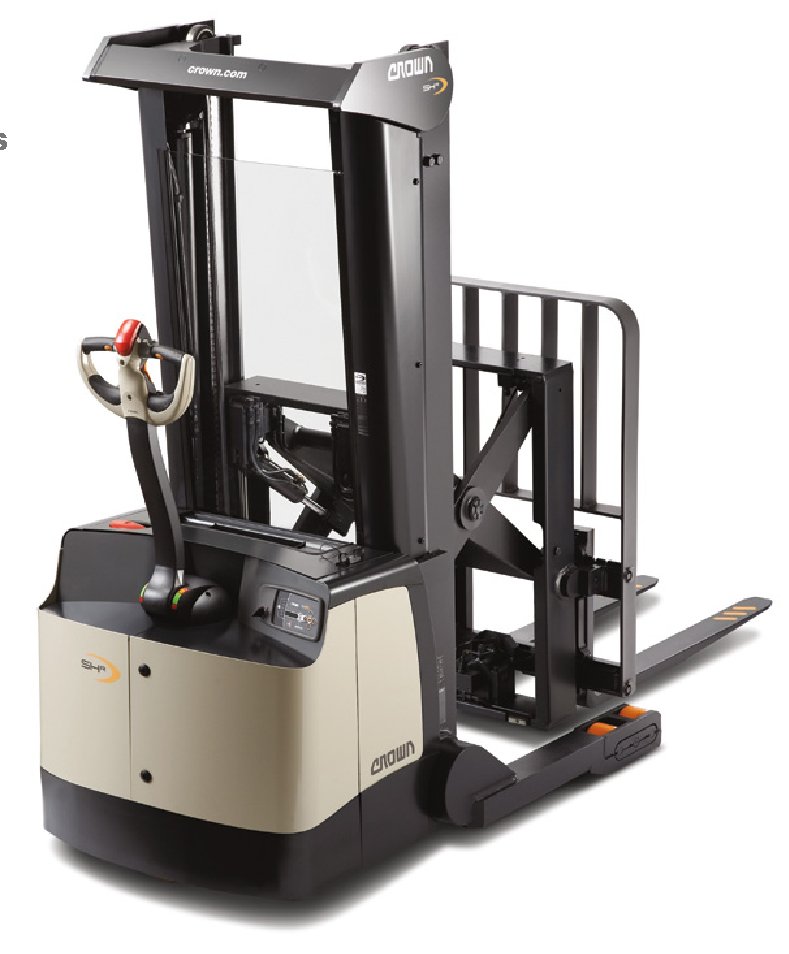

Crown SHR5540-35 Specs
Quick-reference specifications for the Crown SHR5540-35 forklift, taken from the manufacturer’s spec sheet.
Performance 11 specs
| Load Center | 24 in (600 mm) |
|---|---|
| Wheels (x = driven) Load / Drive | 4 / 1x |
| Turning Radius | 65.9 in (1675 mm) |
| Travel Speeds Empty / Loaded | 3.7 / 3.4 mph (5.9 / 5.4 km/h) |
| Lift Speeds Empty / Loaded | 48.4 / 29.5 fpm (.245 / .145 m/s) |
| Lowering Speeds Empty / Loaded | 50 / 50 fpm (.250 / .250 m/s) |
| Mast Type TL – Free Lift with LBR | 6 in (150 mm) |
| Mast Type TL – Load Capacity (150.5) | 3500 lb (1585 kg) |
| Mast Type TL – Free Lift with LBR (150.5) | 6 in (150 mm) |
| Mast Type TT – Load Capacity (192) | 3500 lb (1585 kg) |
| Mast Type TT – Free Lift with LBR (192) | 42 in (1065 mm) |
Dimensions 16 specs
| Tire Type Load / Drive | Poly / Poly |
|---|---|
| Head Length | 50.5 in (1285 mm) |
| Wheelbase | 59.2 in (1505 mm) |
| ForksStandardLxWxT | 36 x 4 x 1.75 in (915 x 102 x 44 mm) |
| Mast Type TL – Lift Height | 127.5 in (3235 mm) |
| Mast Type TL – Collapsed Height | 83.5 in (2120 mm) |
| Mast Type TL – Extended Height with LBR | 175 in (4445 mm) |
| Mast Type TL – Min ID Straddle Width | 34 in (865 mm) |
| Mast Type TL – Lift Height (150.5) | 150.5 in (3820 mm) |
| Mast Type TL – Collapsed Height (150.5) | 95.5 in (2425 mm) |
| Mast Type TL – Extended Height with LBR (150.5) | 198 in (5030 mm) |
| Mast Type TL – Min ID Straddle Width (150.5) | 34 in (865 mm) |
| Mast Type TT – Lift Height (192) | 192 in (4875 mm) |
| Mast Type TT – Collapsed Height (192) | 89 in (2260 mm) |
| Mast Type TT – Extended Height with LBR (192) | 240 in (6100 mm) |
| Mast Type TT – Min ID Straddle Width (192) | 42 in (1065 mm) |
Power / Engine 7 specs
| Power | Electric 24 Volts |
|---|---|
| Battery Min Weight / Max Amp | 975 / 660 lb (445 / 585 kg) |
| Battery Max Battery Size W x L x H | 13.12 x 31.10 x 24.8 in (333 x 790 x 630 mm) |
| Battery Cable Lead Length / Connector Position | 20 / B in (510 / B mm) |
| Mast Type TL – Truck Weight without Battery | 4055 lb (1840 kg) |
| Mast Type TL – Truck Weight without Battery (150.5) | 4160 lb (1885 kg) |
| Mast Type TT – Truck Weight without Battery (192) | 4735 lb (2150 kg) |
