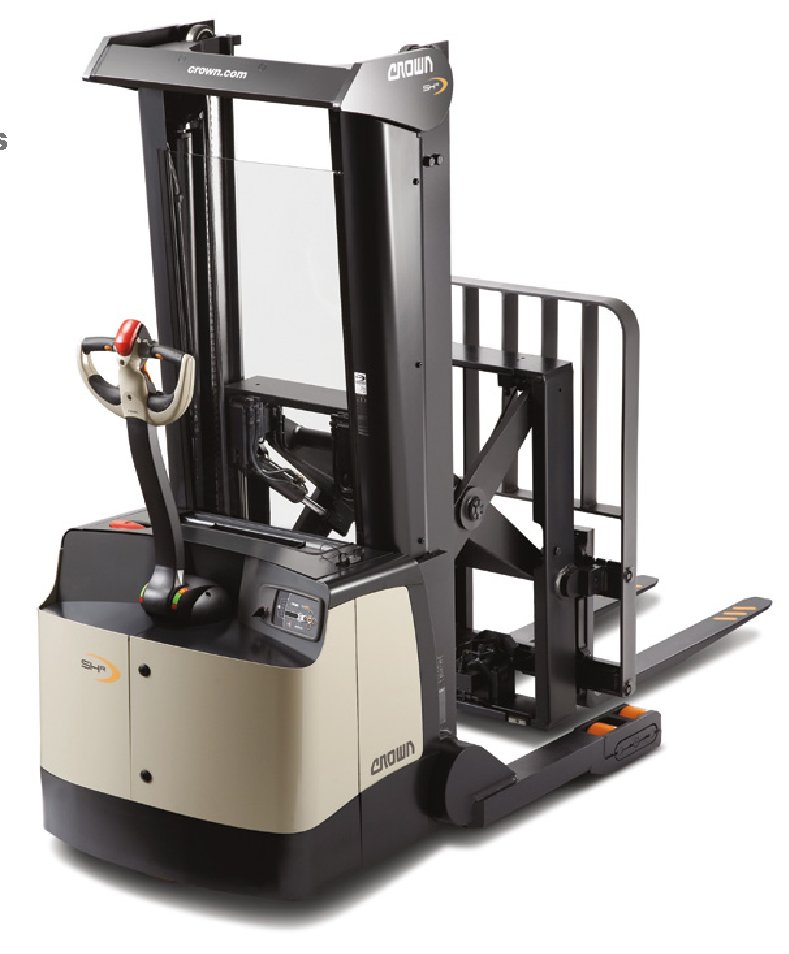

Crown SHR5520-30 Specs

Quick-reference specifications for the Crown SHR5520-30 forklift, taken from the manufacturer’s spec sheet.

Performance 4 specs

Turning Radius	59.4 in (1510 mm)
Travel Speeds Empty / Loaded	3.7 / 3.4 mph (5.9 / 5.4 km/h)
Lift Speeds Empty / Loaded	48.4 / 29.5 fpm (.245 / .145 m/s)
Lowering Speeds Empty / Loaded	50 / 50 fpm (.250 / .250 m/s)

Load Center	24 in (600 mm)
Head Length	44 in (1120 mm)
Wheelbase	52.7 in (1340 mm)
ForksStandardLxWxT	36 x 4 x 1.75 in (915 x 102 x 44 mm)
Cable Lead Length / Connector Position	20 in / B (510 mm / B)
Lift Height – TL Mast 127.5	127.5 in (3235 mm)
Lift Height – TL Mast 150.5	150.5 in (3820 mm)
Lift Height – TT Mast 156	156 in (3960 mm)
