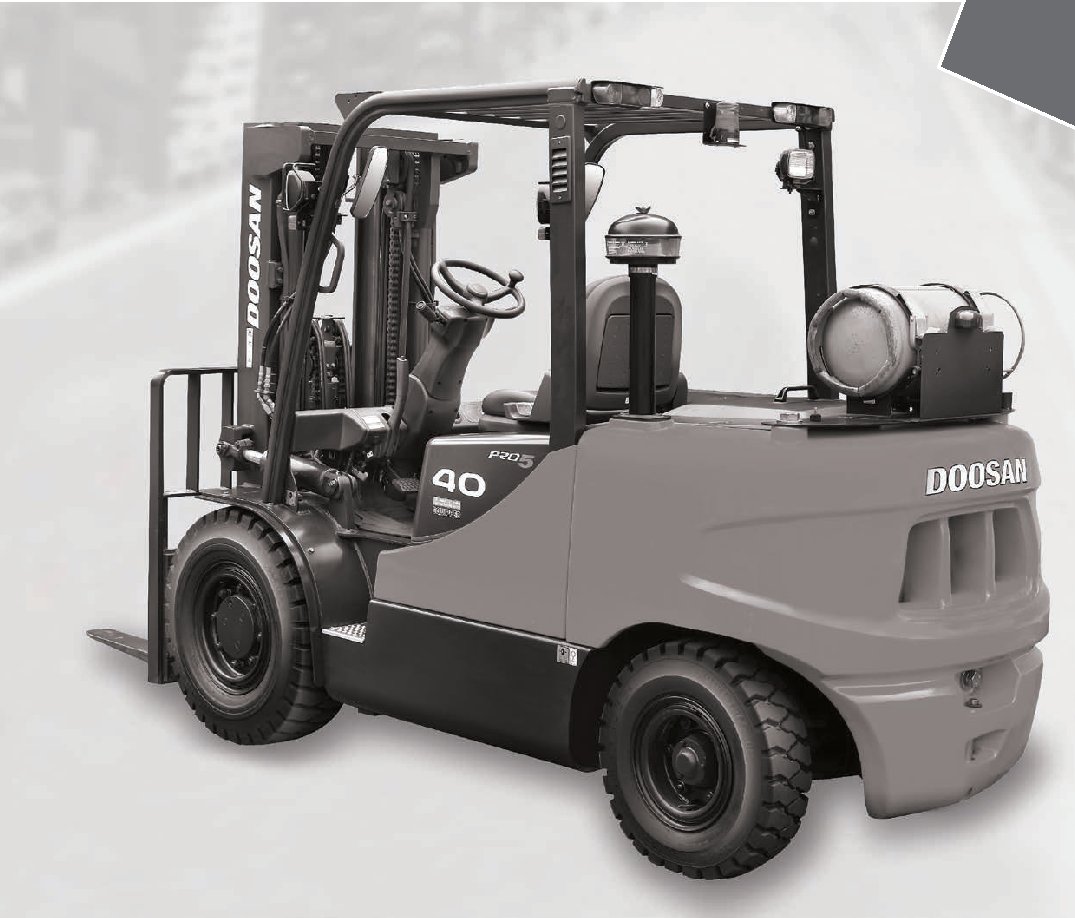

Doosan G45S-5 Specs
Quick-reference specifications for the Doosan G45S-5 forklift, taken from the manufacturer’s spec sheet.
- Max. gradeability Loaded at 1.0 mph (1.6km / h)
- 30.7 %
Performance 11 specs
| Load Capacity at rated load center | 10,000 lb (4,500 kg) |
|---|---|
| Load Center | 24 in (600 mm) |
| Tilt of Mast Forward / Backward | 8 / 10 deg |
| Turning Radius Minimum outside | 112.8 in (2,865 mm) |
| Travel Speed Loaded / Unloaded | 12.1 / 12.7 mph (19.5 / 20.5 km/h) |
| Lifting Speed Loaded / Unloaded | 98.4 / 106.3 fpm (500 / 540 mm/s) |
| Lowering Speed Loaded / Unloaded | 94.5 / 88.6 fpm (480 / 450 mm/s) |
| Max. drawbar pull Loaded at 1.0 mph (1.6km / h) | 7,517.7 lb (3,410 kg) |
| Max. gradeability Loaded at 1.0 mph (1.6km / h) | 30.7 % |
| Brakes – Service | shoe / disc |
| Brakes – Parking | ratchet |
Dimensions 14 specs
| Tire type P:Pnu, E:Solid Soft, C: Cush | P |
|---|---|
| Max. Fork Height with STD 2-stage mast | 118.1 in (3,000 mm) |
| Free Lift | 6.3 in (160 mm) |
| Forks – Length x Width x Thickness | 47.2×5.9×2.0 in (1,200x150x50 mm) |
| Overall Dimensions – Length to Fork Face | 128.5 in (3,265 mm) |
| Overall Dimensions – Overall Width | 57.1 in (1,451 mm) |
| Overall Dimensions – Mast Lowered Height | 87.8 in (2,230 mm) |
| Overall Dimensions – Mast Extended Height | 174.0 in (4,420 mm) |
| Overall Dimensions – Overhead Guard Height | 87.8 in (2,230 mm) |
| Overall Dimensions – Seat Height | 49.4 in (1,255 mm) |
| Load Moment Center | 22.1 in (561 mm) |
| Tread Width Front / Rear | 45.4 / 43.9 in (1,153 / 1,115 mm) |
| Ground Clearance – Loaded at the lowest point | 6.3 in (160 mm) |
| Ground Clearance – Loaded at center of wheelbase | 8.1 in (205 mm) |
Weight 2 specs
| Tires – Size, Front | 300×15-18 |
|---|---|
| Tires – Size, Rear | 7.00×12-12 |
Power / Engine 6 specs
| Power type Elec, Diesel, LPG, Gasoline | LPG |
|---|---|
| Battery – Voltage / Ampere | 12 / 75 V /AH |
| Engine – Model | PSI 4.3 |
| Engine – Rated Power(DIN) | 133 / 3,000 HP /rpm (99.2 / 3,000 kW /rpm) |
| Engine – Cylinders / Displacement | 6 / 4,294 C C |
| Transmission – Type | powershift |
Hydraulics / Fluids 2 specs
| Hydraulic Pressure – System | 3,045 psi (210 bar) |
|---|---|
| Hydraulic Pressure – Attachment | 2,030 psi (140 bar) |
