Scissor Lift Spec Sheet

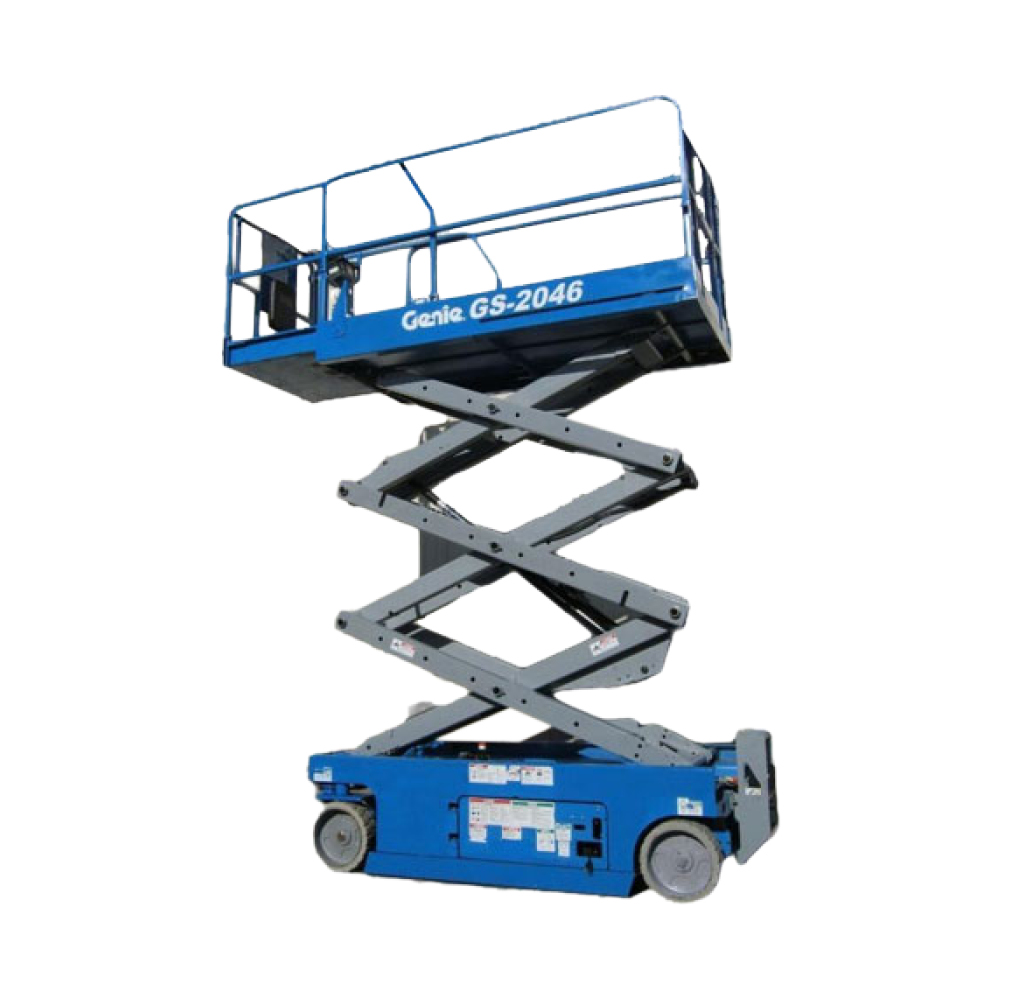

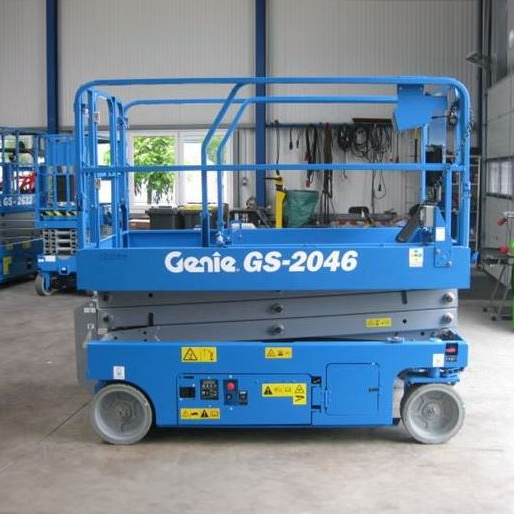

Genie GS-2046 Spec Sheet
Quick-reference specifications for the Genie GS-2046. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height max. – outdoor(1): 22 ft
A Platform height max. – indoor 20 ft: 1 in
Lift capacity: 800 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Working height max. – outdoor(1) | 22 ft |
|---|---|
| A Platform height max. – indoor 20 ft | 1 in |
| A Platform height max. – outdoor | 16 ft |
| B Platform height – stowed 3 ft | 6 in |
| Lift capacity | 800 lb |
| Lift capacity – extension deck extended | 250 lb |
| Turning radius – inside/outside 0 / | 7 ft |
Dimensions
| C Platform length – outside 7 ft | 5 in |
|---|---|
| C Platform length – outside, extended 10 ft | 5 in |
| Slide-out platform extension deck – length | 3 ft |
| D Platform width – outside 2 ft | 8 in |
| Guardrail height 3 ft | 7 in |
| Toeboard height | 6 in |
| E Height – stowed (folding rails) 7 ft | 2 in |
| E Height – stowed (rails lowered) 5 ft | 11 in |
| F Length machine – stowed | 8 ft |
| F Length machine – stowed, extended 10 ft | 11 in |
| G Width 2 ft | 8 in |
| H Wheelbase 6 ft | 1 in |
| I Ground clearance – pothole guards deployed | 0.9 in |
| Max. platform drive height 20 ft | 1 in |
Weights & Electrical
| retracted | 5 in |
|---|---|
| Tilt sensor activation (front to back/side to side) 3° / | 1.5° |
| Power | 24 V DC (4 × 6 |
| V 225 Ah) | 24 V DC (4 × 6 |
| Weight | 4,038 lb |
Powertrain & Systems
| Drive speed – stowed | 2.0 mph |
|---|---|
| Drive speed – raised | 0.5 mph |
| Tires – solid non-marking | 15 × 5 in |
| Tire load max. | 1,692 lb |
Hydraulics & Capacities
| Hydraulic tank capacity (E-Drive) | 4 gal |
|---|---|
| Hydraulic tank capacity (hydraulic drive) | 4.5 gal |
| Tire contact pressure | 111 psi |
| Occupied floor pressure | 247 psf |
