Scissor Lift · Genie

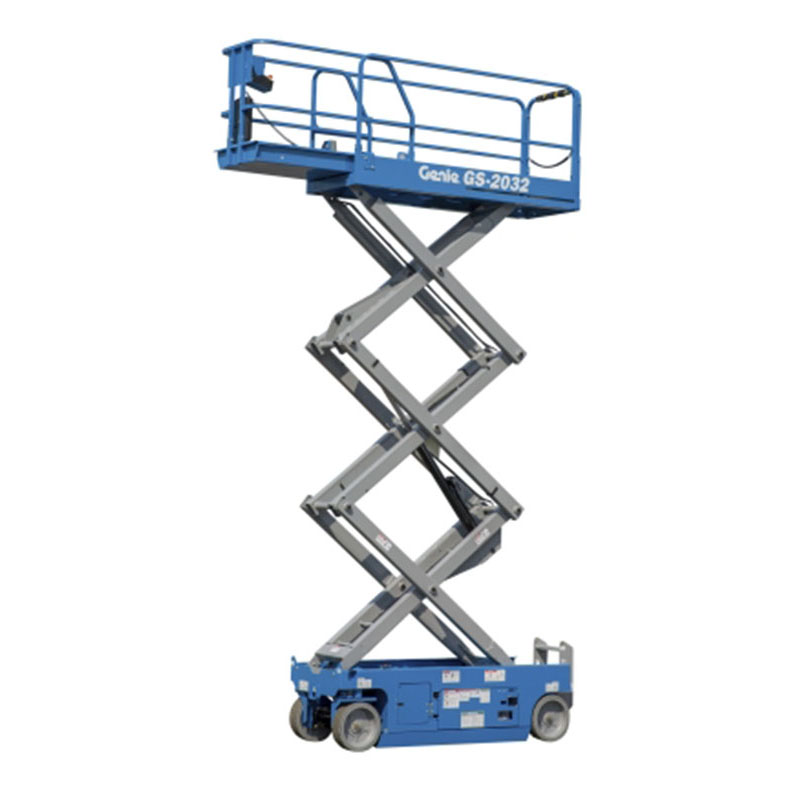

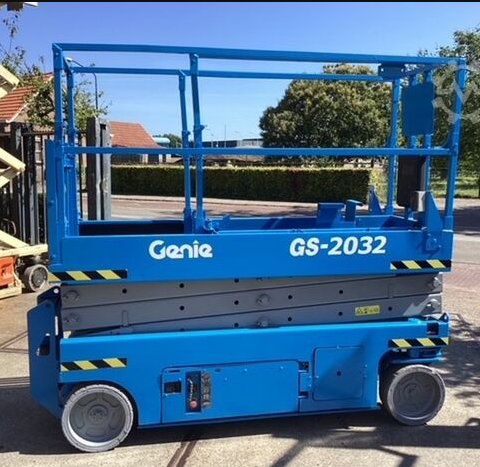

Genie GS-2032 Specs
Quick-reference specifications for the Genie GS-2032 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 800 lb363 kg
- Platform height max. – indoor
- 20 ft 1 in6.13 m
- Working height max. – indoor
- 26 ft 1 in8.13 m
- Weight
- 4,038 lb1,832 kg
Performance 13 specs
| Working height max. – indoor | 26 ft 1 in (8.13 m) |
|---|---|
| Working height max. – outdoor | 22 ft (6.88 m) |
| Lift capacity | 800 lb (363 kg) |
| Lift capacity – extension deck extended | 250 lb (113 kg) |
| Drive speed – stowed | 2.0 mph (3.2 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 30 % |
| Turning radius – inside/outside | 0 / 7 ft (0 / 2.13 m) |
| Lifting speed – raise/lower | 41 / 33 sec |
| Tires – solid non-marking | 15 × 5 in (38 × 13 cm) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | < 2.5 m/s² |
Dimensions 18 specs
| Platform height max. – indoor | 20 ft 1 in (6.13 m) |
|---|---|
| Platform height max. – outdoor | 16 ft (4.88 m) |
| Platform height – stowed | 3 ft 6 in (1.07 m) |
| Platform length – outside | 7 ft 5 in (2.26 m) |
| Platform length – outside, extended | 10 ft 5 in (3.18 m) |
| Slide-out platform extension deck – length | 3 ft (0.91 m) |
| Platform width – outside | 2 ft 8 in (0.81 m) |
| Guardrail height | 3 ft 7 in (1.10 m) |
| Toeboard height | 6 in (15 cm) |
| Height – stowed (folding rails) | 7 ft 2 in (2.18 m) |
| Height – stowed (rails lowered) | 5 ft 11 in (1.80 m) |
| Length machine – stowed | 8 ft (2.44 m) |
| Length machine – stowed, extended | 10 ft 11 in (3.33 m) |
| Width | 2 ft 8 in (0.81 m) |
| Wheelbase | 6 ft 1 in (1.85 m) |
| Ground clearance (center) – pothole guards | 5 in (12 cm) |
| Ground clearance – pothole guards deployed | 0.9 in (2.30 cm) |
| Max. platform drive height | 20 ft 1 in (6.13 m) |
Weight 4 specs
| Weight | 4,038 lb (1,832 kg) |
|---|---|
| Tire load max. | 1,692 lb (767 kg) |
| Tire contact pressure | 111 psi (766 kPa) |
| Occupied floor pressure | 247 psf (11.82 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity (E-Drive) | 4 gal (15 L) |
|---|---|
| Hydraulic tank capacity (hydraulic drive) | 4.5 gal (17 L) |
