Scissor Lift · Genie

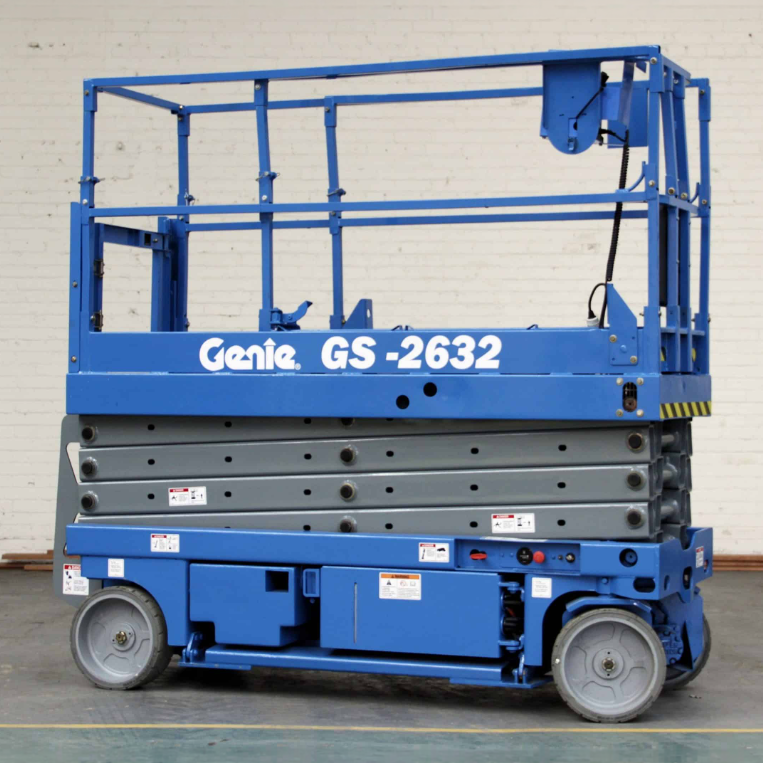

Genie GS-2632 Specs
Quick-reference specifications for the Genie GS-2632 scissor lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height max. – indoor
- 26 ft 1 in7.96 m
- Working height max. – indoor
- 32 ft 1 in9.96 m
- Weight
- 4,729 lb2,145 kg
Performance 13 specs
| Working height max. – indoor | 32 ft 1 in (9.96 m) |
|---|---|
| Working height max. – outdoor | 25 ft (7.79 m) |
| Lift capacity | 500 lb (227 kg) |
| Lift capacity – extension deck extended | 250 lb (113 kg) |
| Drive speed – stowed | 2.0 mph (3.2 km/h) |
| Drive speed – raised | 0.5 mph (0.8 km/h) |
| Gradeability – stowed | 25 % |
| Turning radius – inside/outside | 0 / 7 ft (0 / 2.13 m) |
| Lifting speed – raise/lower | 43 / 33 sec |
| Tires – solid non-marking | 15 × 5 in (38 × 13 cm) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | < 2.5 m/s² |
Dimensions 18 specs
| Platform height max. – indoor | 26 ft 1 in (7.96 m) |
|---|---|
| Platform height max. – outdoor | 19 ft (5.79 m) |
| Platform height – stowed | 3 ft 11 in (1.19 m) |
| Platform length – outside | 7 ft 5 in (2.26 m) |
| Platform length – outside, extended | 10 ft 5 in (3.18 m) |
| Slide-out platform extension deck – length | 3 ft (0.91 m) |
| Platform width – outside | 2 ft 8 in (0.81 m) |
| Guardrail height | 3 ft 7 in (1.10 m) |
| Toeboard height | 6 in (15 cm) |
| Height – stowed (folding rails) | 7 ft 7 in (2.31 m) |
| Height – stowed (rails lowered) | 6 ft 4 in (1.94 m) |
| Length machine – stowed | 8 ft (2.44 m) |
| Length machine – stowed, extended | 10 ft 11 in (3.33 m) |
| Width | 2 ft 8 in (0.81 m) |
| Wheelbase | 6 ft 1 in (1.85 m) |
| Ground clearance (center) – pothole guards | 5 in (12 cm) |
| Ground clearance – pothole guards deployed | 0.9 in (2.30 cm) |
| Max. platform drive height | 26 ft 1 in (7.96 m) |
Weight 4 specs
| Weight | 4,729 lb (2,145 kg) |
|---|---|
| Tire load max. | 1,820 lb (826 kg) |
| Tire contact pressure | 119 psi (824 kPa) |
| Occupied floor pressure | 270 psf (12.91 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity (E-Drive) | 4 gal (15 L) |
|---|---|
| Hydraulic tank capacity (hydraulic drive) | 4.5 gal (17 L) |
