Scissor Lift Spec Sheet

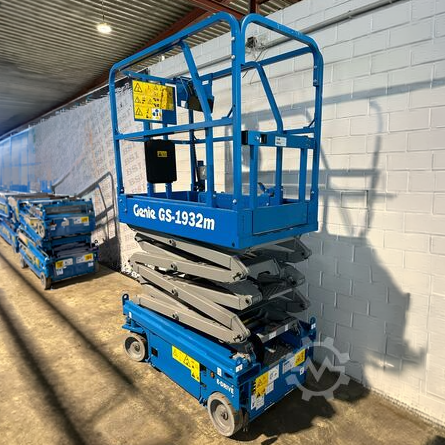

Genie GS-1932m Spec Sheet
Quick-reference specifications for the Genie GS-1932m. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height max. – outdoor(1): 18 ft
A Platform height max. – indoor 14 ft: 1 in
Lift capacity: 500 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Working height max. – outdoor(1) | 18 ft |
|---|---|
| A Platform height max. – indoor 14 ft | 1 in |
| A Platform height max. – outdoor | 12 ft |
| B Platform height – stowed 2 ft | 6 in |
| Lift capacity | 500 lb |
| Lift capacity – extension deck extended | 250 lb |
| Turning radius – inside/outside 0 / 4 ft | 6 in |
Dimensions
| C Platform length – outside 4 ft | 7 in |
|---|---|
| C Platform length – outside, extended 6 ft | 7 in |
| Slide-out platform extension deck – length | 2 ft |
| D Platform width – outside 2 ft | 6 in |
| Guardrail height 3 ft | 7 in |
| Toeboard height | 6 in |
| E Height – stowed (fixed rails) 6 ft | 2 in |
| E Height – stowed (folding rails) 6 ft | 2 in |
| E Height – stowed (rails lowered) 4 ft | 11 in |
| F Length machine – stowed 4 ft | 7 in |
| F Length machine – stowed, extended 6 ft | 7 in |
| G Width | 32 in |
| H Wheelbase 3 ft | 8 in |
| I Ground clearance – pothole guards deployed | 0.75 in |
| Max. platform drive height 14 ft | 1 in |
Weights & Electrical
| retracted | 2.8 in |
|---|---|
| Tilt sensor activation (front to back/side to side) 3° / | 1.5° |
| Power | 24 V DC |
| Ah) | 24 V DC |
| Weight | 1,984 lb |
Powertrain & Systems
| Drive speed – stowed | 2.5 mph |
|---|---|
| Drive speed – raised | 0.5 mph |
| Tires – solid non-marking | 10 × 3 in |
| Tire load max. | 425 lb |
Hydraulics & Capacities
| Hydraulic tank capacity (E-Drive) | 1 gal |
|---|---|
| Tire contact pressure | 143 psi |
| Occupied floor pressure | 203 psf |
