Telehandler · Genie

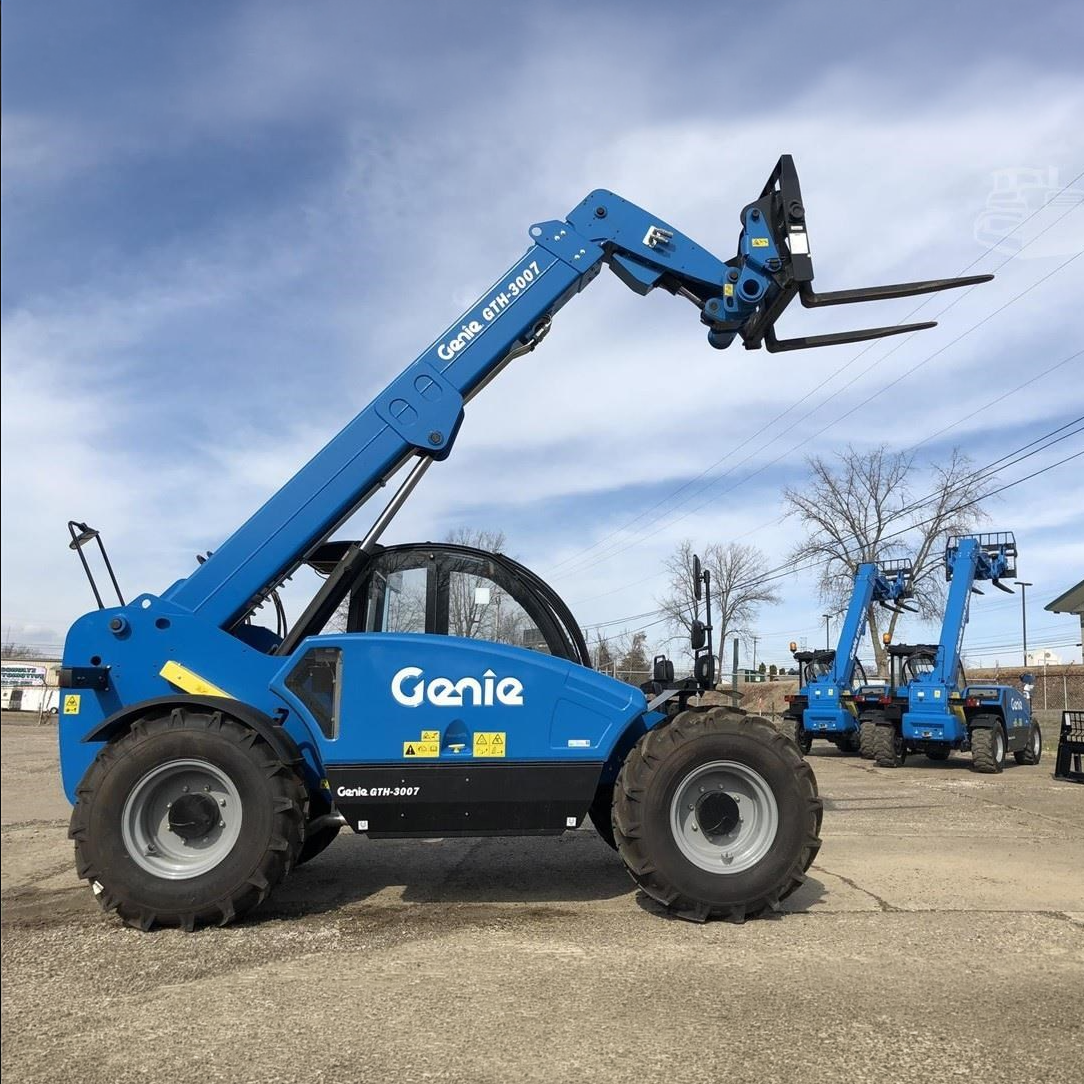

Genie GTH-3007 ACF Specs
Quick-reference specifications for the Genie GTH-3007 ACF telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity, maximum height
- 2,500 kg
- Weight
- 5,970 kg
Performance 11 specs
| Horizontal reach maximum | 3.99 m |
|---|---|
| Reach at maximum height | 0.76 m |
| Lift capacity, maximum height | 2,500 kg |
| Lift capacity, maximum reach | 1,000 kg |
| Maximum lift capacity | 3,000 kg |
| Drive speed, maximum | 30 km/h |
| Turning radius, outside, 2 wheel steer | 7.1 m |
| Turning radius, outside, 4 wheel steer | 4.4 m |
| Maximum grade | 35 % |
| Horn sound level, manufacturer’s rating | 112 dB |
| Backup alarm sound level, manufacturer’s rating | 95 dB |
Dimensions 5 specs
| Height, stowed | 2.07 m |
|---|---|
| Length, stowed, at fork-holder plate | 4.66 m |
| Width, standard tires | 1.99 m |
| Ground clearance, center | 0.43 m |
| Working fork height, maximum | 6.89 m |
Weight 3 specs
| Weight | 5,970 kg |
|---|---|
| Tire load, maximum | 2,285 kg |
| Occupied floor pressure | 7.2 kPa |
Hydraulics / Fluids 1 spec
| Fuel tank capacity | 90 L |
|---|
