Telehandler · Genie

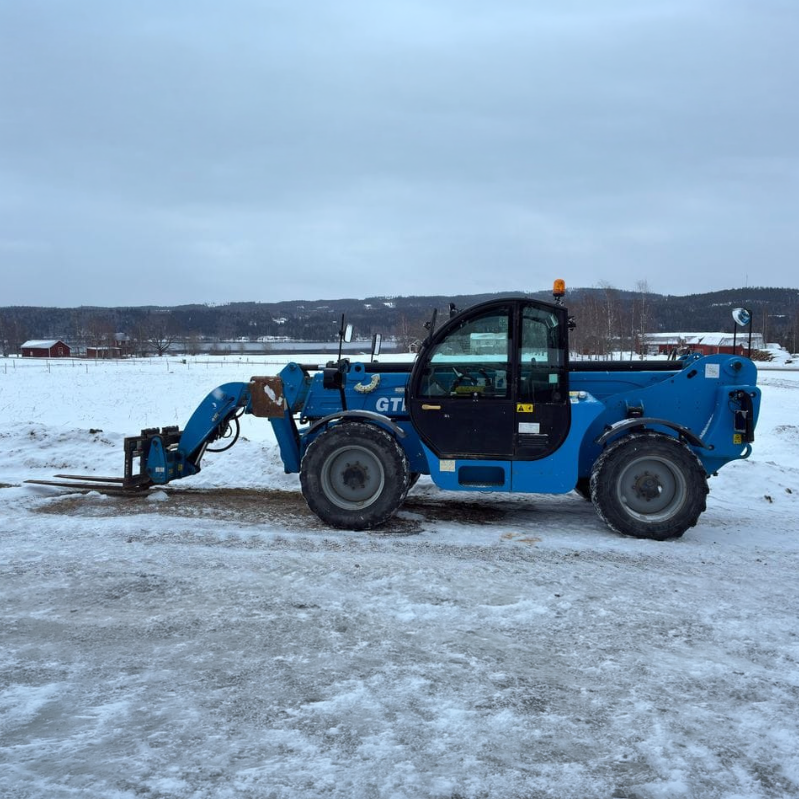

Genie GTH-4018 AU Specs
Quick-reference specifications for the Genie GTH-4018 AU telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 2,000 kg
- Weight
- 12,640 kg
Performance 13 specs
| Lifting capacity maximum | 4,000 kg |
|---|---|
| Lift capacity at maximum height | 2,000 kg |
| Lift capacity at maximum reach | 500 kg |
| Forward reach maximum | 13.33 m |
| Reach at maximum height | 0.89 m |
| Inside/outside turning radius | 1.87 m/3.55 m |
| Drawbar pull | 6,533 kg |
| Drive speed max. | 27 km/h |
| Fork-holder plate rotation | 138° |
| Chassis levelling on front axle | +/- 6° |
| Tyres (DIN 70361) | 405/70 24 in PR14 8 |
| Lifting/lowering speed | 15 sec/10 sec |
| Extension/retraction speed | 23 sec/16 sec |
Dimensions 14 specs
| Lifting height maximum without outriggers | 17.38 m |
|---|---|
| Height | 2.44 m |
| Height at steering wheel | 1.60 m |
| Width | 2.42 m |
| Cab width | 93 cm |
| Track | 1.92 m |
| Wheelbase | 2.95 m |
| Length at front wheels | 4.83 m |
| Length at fork-holder plate | 6.57 m |
| Ground clearance | 35 cm |
| Overall width, outriggers extended | 2.87 m |
| Overall length | 7.77 m |
| Obstruction angle | 40° |
| Departure angle | 46° |
Weight 1 spec
| Weight | 12,640 kg |
|---|
Power / Engine 1 spec
| Engine oil capacity | 9.6 L |
|---|
Hydraulics / Fluids 4 specs
| Fuel tank capacity | 170 L |
|---|---|
| Hydraulic oil tank capacity | 112 L |
| Boom & control system gear pump type | 280 Bar, 94 L/min. |
| Service brake gear pump type | 250 Bar, 44 L/min. |
