Telehandler · Genie

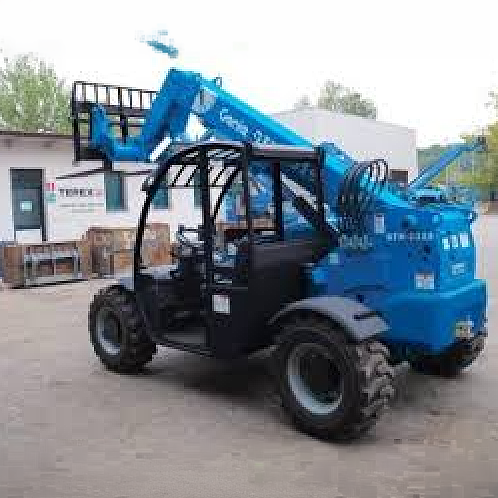

Genie GTH-3517 Specs
Quick-reference specifications for the Genie GTH-3517 telehandler, taken from the manufacturer’s spec sheet.
Performance 13 specs
| Working speed () | 8 km/h |
|---|---|
| Travel speed () | 35 km/h |
| Max. slope with full load | 50 % |
| Reach at max height | 1320 mm |
| Max reach forward | 12700 mm |
| Attachment holding plate rotation | 145° |
| Maximum payload | 3500 kg |
| Payload at max reach | 100 kg |
| Forks (Floating Type) – Weight | 70 kg |
| Fork holding frame – class | FEM III |
| Machine Sound Levels – Sound pressure () | Lpa = 81 dB |
| Mean assessed vibration level transmitted to arms | < 2.5 m/s² |
| Mean assessed vibration level transmitted to body | < 0.5 m/s² |
Dimensions 14 specs
| Overall height | 2630 mm |
|---|---|
| Overall width | 2330 mm |
| Cab width | 850 mm |
| Track | 1920 mm |
| Ground clearance | 460 mm |
| Max width with extended outriggers | 2930 mm |
| Internal steering radius | 1300 mm |
| External steering radius | 3990 mm |
| Angle of approach (with/without outriggers) | 39° |
| Departure angle | 45° |
| Max lifting height: with outriggers | 16700 mm |
| Max lifting height: without outriggers | 16600 mm |
| Payload at max height | 2200 kg |
| Forks (Floating Type) – Dimensions | 1200x130x50 mm |
Weight 1 spec
| Weight in working order | 10900 kg |
|---|
Power / Engine 8 specs
| Diesel Engine – Make | PERKINS |
|---|---|
| Diesel Engine – Model/Type | 1004.40T |
| Total displacement | 3990 cc |
| Power at 2300 giri/min | 81 kW |
| Electrical System – Voltage | 12 V |
| Electrical System – Starter (power) | 3 kW |
| Electrical System – Battery | 92 Ah |
| Machine Sound Levels – Sound power () | Lwa = 105 dB |
