Telehandler · Genie

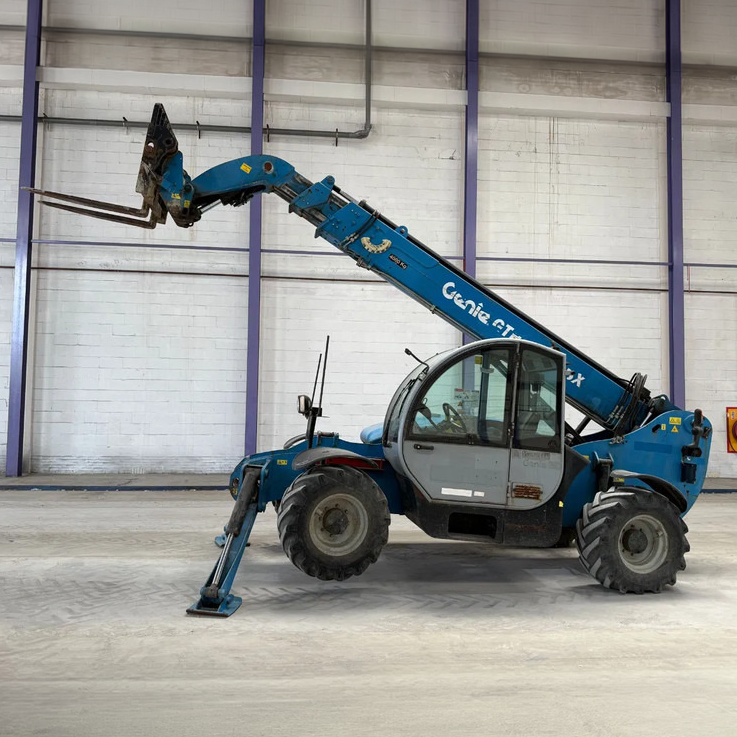

Genie GTH-3713 SX Specs
Quick-reference specifications for the Genie GTH-3713 SX telehandler, taken from the manufacturer’s spec sheet.
Performance 8 specs
| Working speed | 0÷8 km/h |
|---|---|
| Travel speed | 0÷30 km/h |
| Max. slope with full load | 54 % |
| Reach at max height (without outriggers) | 1290 mm |
| Max reach forward | 8740 mm |
| Attachment holding plate rotation | 145° |
| Maximum payload (with outriggers) | 3700 kg |
| Payload at max reach (with outriggers) | 1000 kg |
Dimensions 13 specs
| Overall height | 2560 mm |
|---|---|
| Overall width | 2330 mm |
| Cab width | 910 mm |
| Track | 1920 mm |
| Ground clearance | 460 mm |
| Max width with extended outriggers | 2930 mm |
| Internal steering radius | 1300 mm |
| External steering radius | 3990 mm |
| Angle of approach | 90° |
| Departure angle | 45° |
| Max lifting height with outriggers | 12640 mm |
| Max lifting height without outriggers | 12470 mm |
| Payload at max height (with outriggers) | 3000 kg |
Weight 1 spec
| Weight in working order | 9900 kg |
|---|
Power / Engine 6 specs
| Make | PERKINS |
|---|---|
| Total displacement | 4232 cc |
| Power at 2300 rpm | 63,5 kW |
| Voltage | 12 V |
| Starter (power) | 3 kW |
| Battery | 110 Ah |
