Telehandler · Genie

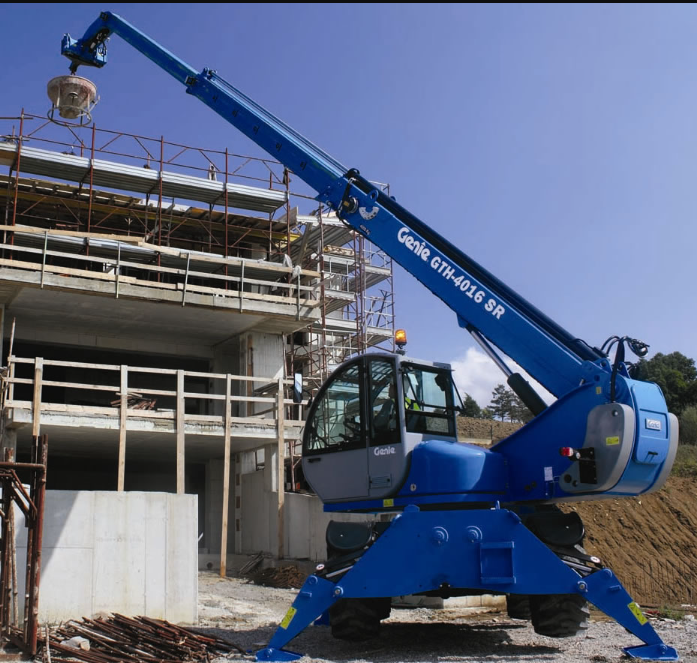

Genie GTH-4016R IIIA Specs
Quick-reference specifications for the Genie GTH-4016R IIIA telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,511 lb2,500 kg
- Weight
- 30,368 lb13,775 kg
Performance 13 specs
| Lifting capacity maximum | 8,818 lb (4,000 kg) |
|---|---|
| Lift capacity at maximum height | 5,511 lb (2,500 kg) |
| Lift capacity at maximum reach | 1,543 lb (700 kg) |
| Forward reach maximum | 43 ft 10 in (13.35 m) |
| Reach at maximum height | 11 ft 4 in (3.42 m) |
| Inside/outside turning radius | 7 ft 9 in/13 ft 10 in (2.37 m/4.22 m) |
| Towing capacity at dynamometer | 17,826 lb (8,086 kg) |
| Drive speed max. | 19 mph (30 km/h) |
| Fork-holder plate rotation | 138° |
| Tyres (DIN 70361) | holes wheel disc (18-19.5 in PR16 10) |
| Petrol tank capacities | 54 gal (205 L) |
| Payload | 4,000 kg |
| Rotating and extendable | +/-90° |
Dimensions 18 specs
| Lifting height maximum with outriggers | 50 ft 7 in (15.42 m) |
|---|---|
| Lifting height maximum without outriggers | 50 ft 3 in (15.31 m) |
| Height | 9 ft 9 in (2.99 m) |
| Height at steering wheel | 7 ft 3 in (2.22 m) |
| Width | 7 ft 11 in (2.42 m) |
| Cab width | 3 ft (0.93 m) |
| Track | 6 ft 5 in (1.95 m) |
| Wheelbase | 9 ft 10 in (3.00 m) |
| Length at front wheels | 15 ft 3 in (4.66 m) |
| Length at fork-holder plate | 22 ft 2 in (6.76 m) |
| Ground clearance | 1 ft 2 in (0.36 m) |
| Overall width, outriggers extended | 11 ft 11 in (3.64 m) |
| Side rear overhang | 8 ft 6 in (2.60 m) |
| Side front overhang | 13 ft 8 in (4.16 m) |
| Overall length | 26 ft 1 in (7.96 m) |
| Obstruction angle | 31° |
| Departure angle | 31° |
| Length | 1,615 mm |
Weight 1 spec
| Weight | 30,368 lb (13,775 kg) |
|---|
Power / Engine 1 spec
| Engine oil capacities | 2.12 gal (8.3 L) |
|---|
Hydraulics / Fluids 2 specs
| Boom & control system gear pump type | 280 Bar, 94 L/min. |
|---|---|
| Hydraulic oil tank capacities | 58 gal (220 L) |
