Telehandler · Genie

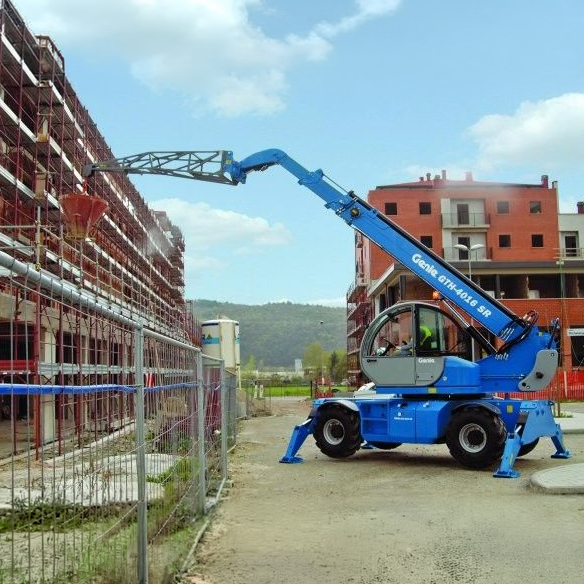

Genie GTH-4016 SR Specs
Quick-reference specifications for the Genie GTH-4016 SR telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,511 lb2,500 kg
- Weight
- 28,439 lb12,900 kg
Performance 12 specs
| Lifting capacity maximum | 8,818 lb (4,000 kg) |
|---|---|
| Lift capacity at maximum height | 5,511 lb (2,500 kg) |
| Lift capacity at maximum reach | 1,543 lb (700 kg) |
| Forward reach maximum | 43 ft 10 in (13.35 m) |
| Reach at maximum height | 11 ft 2 in (3.40 m) |
| Inside/outside turning radius | 6 ft 6 in/13 ft 6 in (1.97 m/4.12 m) |
| Towing capacity at dynamometer | 15,212 lb (6,900 kg) |
| Drive speed max. | 22 mph (35 km/h) |
| Fork-holder plate rotation | 138° |
| Tyres (DIN 70361) | holes wheel disc (18-19.5 in PR16 10) |
| Payload | 4,000 kg |
| Rotating and extendable | +/-90° |
Dimensions 16 specs
| Lifting height maximum with outriggers | 50 ft 7 in (15.42 m) |
|---|---|
| Lifting height maximum without outriggers | 50 ft 3 in (15.31 m) |
| Height | 9 ft 10 in (2.99 m) |
| Height at steering wheel | 7 ft 3 in (2.22 m) |
| Width | 8 ft 1 in (2.46 m) |
| Cab width | 3 ft (93 cm) |
| Track | 6 ft 5 in (1.95 m) |
| Wheelbase | 9 ft 10 in (3.00 m) |
| Length at front wheels | 15 ft 3 in (4.66 m) |
| Length at fork-holder plate | 22 ft 2 in (6.76 m) |
| Ground clearance | 1 ft 1 in (34 cm) |
| Overall width, outriggers extended | 11 ft 11 in (3.64 m) |
| Side rear overhang | 8 ft 6 in (2.60 m) |
| Side front overhang | 13 ft 8 in (4.16 m) |
| Overall length | 26 ft 1 in (7.96 m) |
| Length | 1,615 mm |
Weight 1 spec
| Weight | 28,439 lb (12,900 kg) |
|---|
Power / Engine 1 spec
| Engine oil capacities | 2.5 gal (11.5 L) |
|---|
Hydraulics / Fluids 2 specs
| Boom & control system gear pump type: 280 Bar, 88L/min. | 205 L |
|---|---|
| Hydraulic oil tank capacities | 48 gal (220 L) |
