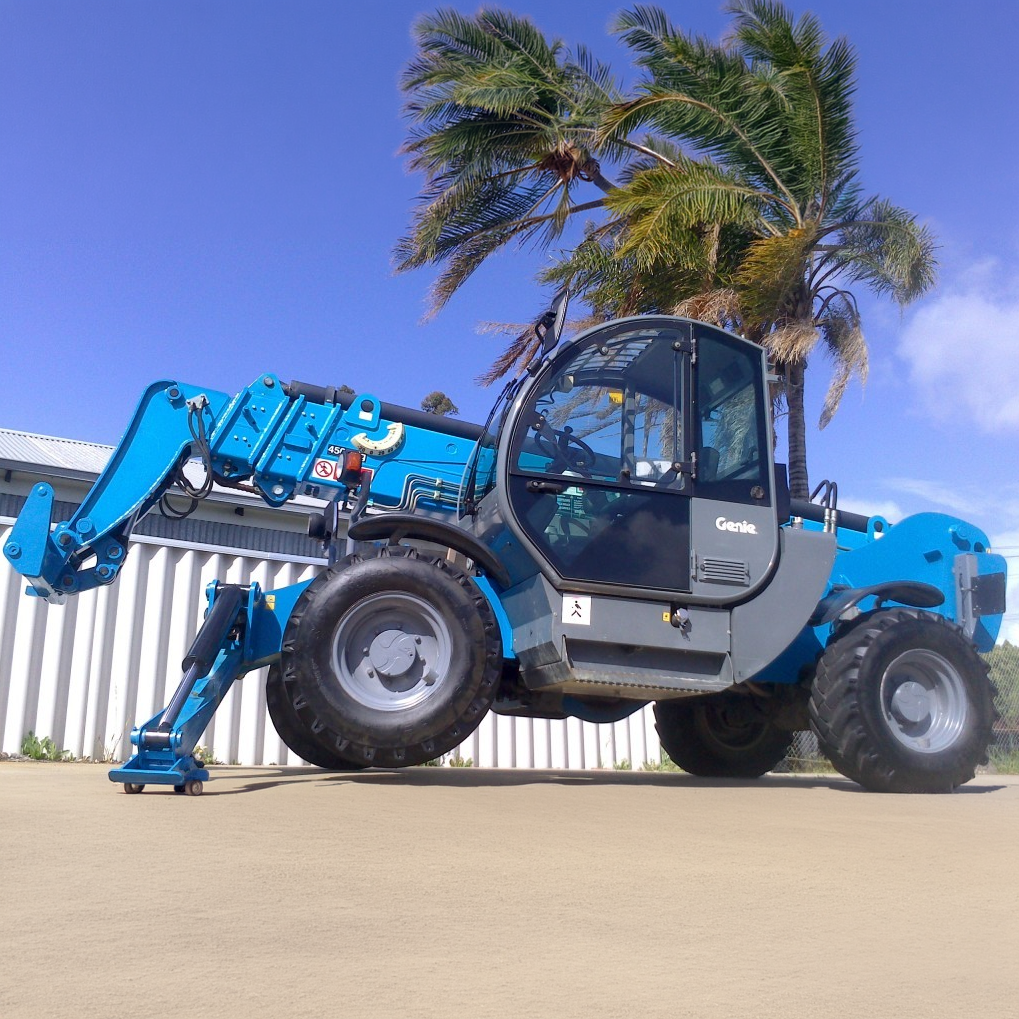

Genie GTH-4514 AU Specs
Quick-reference specifications for the Genie GTH-4514 AU telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 7,710 lb3,500 kg
- Weight
- 23,369 lb10,600 kg
Performance 10 specs
| Lifting capacity maximum | 9,921 lb (4,500 kg) |
|---|---|
| Lift capacity at maximum height | 7,710 lb (3,500 kg) |
| Lift capacity at maximum reach | 2,756 lb (1,250 kg) |
| Forward reach maximum | 31 ft 6 in (9.61 m) |
| Reach at maximum height | 1 ft 10 in (0.56 m) |
| Inside/outside turning radius | 7 ft / 14 ft 9 in (2.15 m / 4.50 m) |
| Towing capacity at dynamometer | 18,078 lb (8,200 kg) |
| Drive speed | 22 mph (35 km/h) |
| Fork-holder plate rotation | 145° |
| Chassis levelling on the front axle | +/- 8° |
Dimensions 12 specs
| Lifting height maximum | 45 ft (13.71 m) |
|---|---|
| Lifting height maximum without outriggers | 44 ft 50 in (13.56 m) |
| Height | 8 ft 5 in (2.56 m) |
| Height at steering wheel | 5 ft 3 in (1.60 m) |
| Width | 8 ft (2.45 m) |
| Inside cab width | 2 ft 7 in (0.78 m) |
| Track | 6 ft 6 in (1.98 m) |
| Wheelbase | 9 ft 4 in (2.85 m) |
| Length at front wheels | 15 ft 3 in (4.65 m) |
| Length at fork-holder plate | 20 ft (6.10 m) |
| Ground clearance | 1 ft 2 in (0.37 m) |
| Overall width, outriggers extended | 9 ft 8 in (2.95 m) |
Weight 1 spec
| Weight | 23,369 lb (10,600 kg) |
|---|
Power / Engine 2 specs
| Tank capacities – Fuel | 35.7 gal (135 L) |
|---|---|
| Tank capacities – Engine oil | 1.8 gal (7 L) |
Hydraulics / Fluids 1 spec
| Tank capacities – Hydraulic oil | 39.6 gal (150 L) |
|---|
