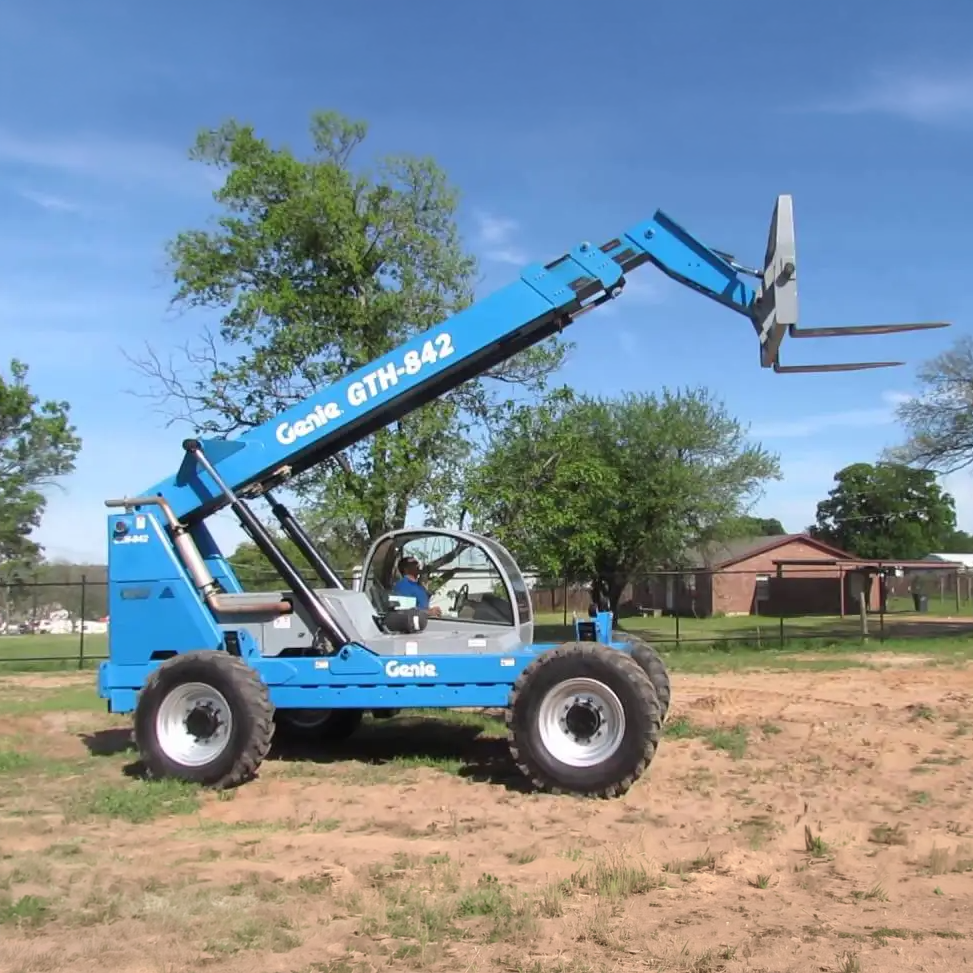

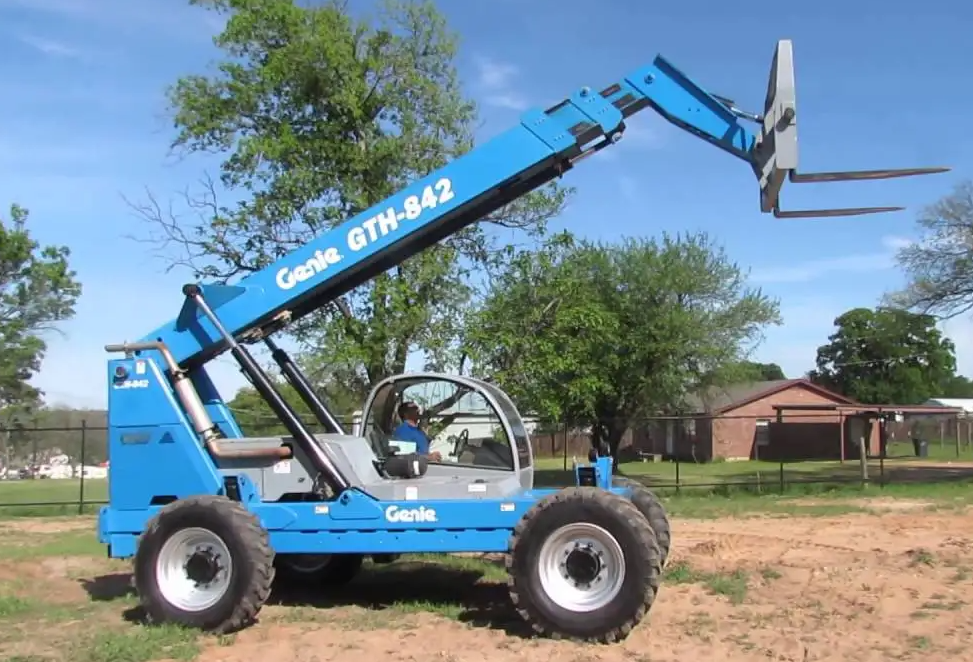

Genie GTH-842 Spec Sheet
Quick-reference specifications for the Genie GTH-842. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum lift height: 42 ft
Maximum lift capacity: 8,000 lbs
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Maximum lift height | 42 ft |
|---|---|
| Maximum lift capacity | 8,000 lbs |
| Lift capacity at maximum height | 6,000 lbs |
| Lift capacity at maximum reach | 2,000 lbs |
Dimensions
| Reach at maximum height | 3 ft |
|---|---|
| Height, stowed 8 ft | 11 in |
| Length, stowed (without forks) | 20 ft |
| Width 8 ft | 6 in |
| Wheelbase 10 ft | 10 in |
| Ground clearance, center 1 ft | 5 in |
| Ground clearance, axle 1 ft | 5 in |
Weights & Electrical
| Reach | 25 ft |
|---|---|
| Boom extend/retract | 18/14 seconds |
| Power source Perkins | 1104C-44T turbo-charged |
| Electrical system System voltage | 12 volt |
| Alternator 95 amp Battery 1000 CCA at | 0˚F (-18˚C) |
| HIGH REACH ROUGH TERRAIN TELEHANDLER GTH-842 4K 0708G. Part No. | 109420 |
Powertrain & Systems
| Drive speed | 18 mph |
|---|---|
| Tires, standard size 13 x 24 in, | 12 ply |
| Brunel Drive Newark NG24 | 2DE |
Hydraulics & Capacities
| Auxiliary hydraulic flow | 3-7 gpm |
|---|---|
| Auxiliary hydraulic pressure | 3,000 psi |
| Hydraulic tank capacity | 34 gal |
| Hydraulic system capacity (w/tank) | 50 gal |
| Fuel tank capacity | 30 gal |
