Telehandler · Genie

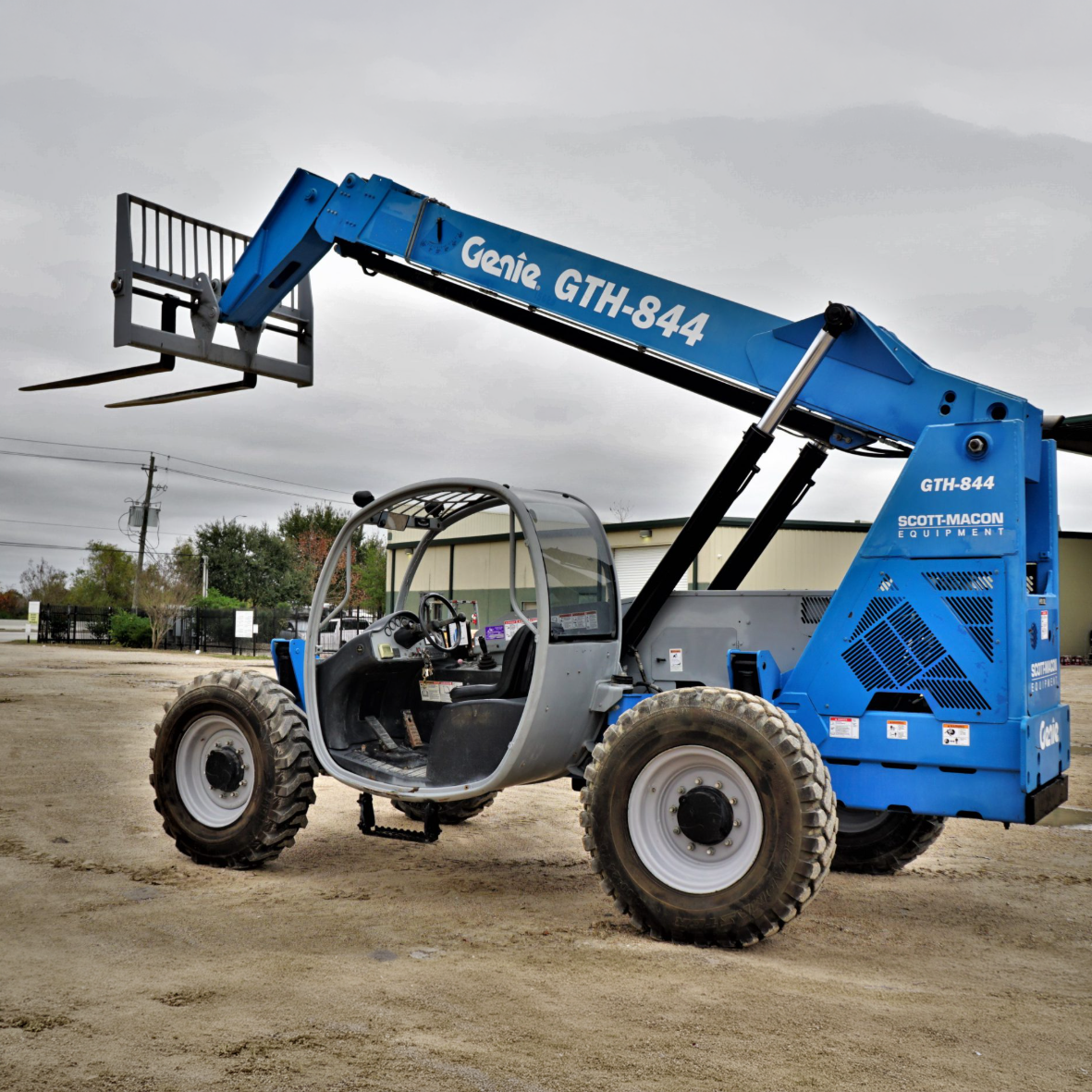

Genie GTH-844 Specs

Quick-reference specifications for the Genie GTH-844 telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Maximum lift capacity: 8,000 lb3,629 kg
Maximum lift height: 44 ft13.41 m

Performance 4 specs

Reach	27 ft (8.23 m)
Maximum lift capacity	8,000 lb (3,629 kg)
Lift capacity at maximum reach	2,000 lb (907 kg)
Tires, standard size	14 x 24 in, 12 ply

Dimensions 7 specs

Maximum lift height	44 ft (13.41 m)
Height, stowed	8 ft 8 in (2.64 m)
Length, stowed (without forks)	20 ft 5 in (6.22 m)
Wheelbase	10 ft 10 in (3.30 m)
Ground clearance, center	1 ft 5 in (0.43 m)
Ground clearance, axle	1 ft 6 in (0.46 m)
Fork cross section	2 x 4 in (0.05 x 0.10 m)
