Boom Lift · Genie

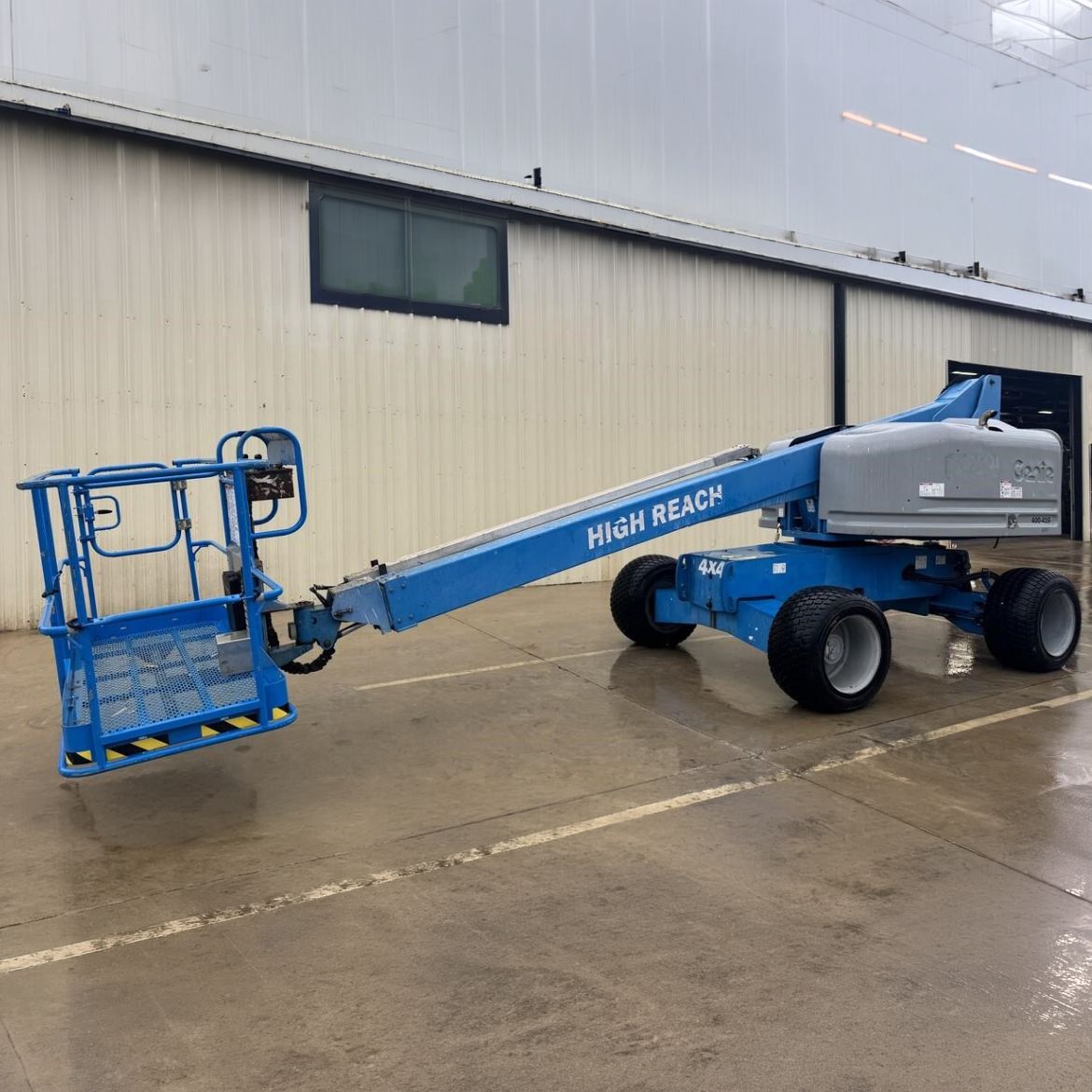

Genie S-40HF Specs
Quick-reference specifications for the Genie S-40HF boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 600 lb272 kg
- Platform height max.
- 39 ft 6 in12.04 m
- Working height max.
- 45 ft 6 in13.87 m
- Gradeability – stowed
- 45 %
Performance 14 specs
| Working height max. | 45 ft 6 in (13.87 m) |
|---|---|
| Horizontal reach max. | 28 ft 11 in (8.81 m) |
| Below ground reach | 1 ft (0.30 m) |
| Lift capacity max. – unrestricted | 600 lb (272 kg) |
| Number of Platform Occupants | 2 |
| Platform rotation | 160° |
| Turntable rotation | 360° |
| Drive speed – stowed (tires) | 4.0 mph (6.4 km/h) |
| Drive speed – raised (tires) | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside (tires) | 6 ft 9 in / 17 ft 3 in (2.06 m / 5.26 m) |
| Tires | 33 / 16LL500 |
| Sound Pressure level (ground workstation) | 89 dBA |
| Sound Pressure level (platform workstation) | 77 dBA |
Dimensions 8 specs
| Platform height max. | 39 ft 6 in (12.04 m) |
|---|---|
| Height – stowed (tires) | 8 ft 3 in (2.51 m) |
| Length – stowed (tires) | 26 ft 4 in (8.03 m) |
| Width (tires) | 8 ft 5 in (2.56 m) |
| Wheelbase | 8 ft 1 in (2.46 m) |
| Ground clearance – center (tires) | 12.5 in (0.32 m) |
| Height under counterweight | 3 ft 4 in (1.02 m) |
| Turntable tailswing | 36 in (0.91 m) |
Weight 4 specs
| Weight (tires) | 13,544 lb (6,143 kg) |
|---|---|
| Tire contact pressure | 38 psi (262 kPa) |
| Occupied floor pressure (tires) | 155 psf (7.44 kPa) |
| Vibrations | < 2.5 m/s² |
Hydraulics / Fluids 1 spec
| Fuel tank capacity | 35 gal (132 L) |
|---|
