Boom Lift · Genie

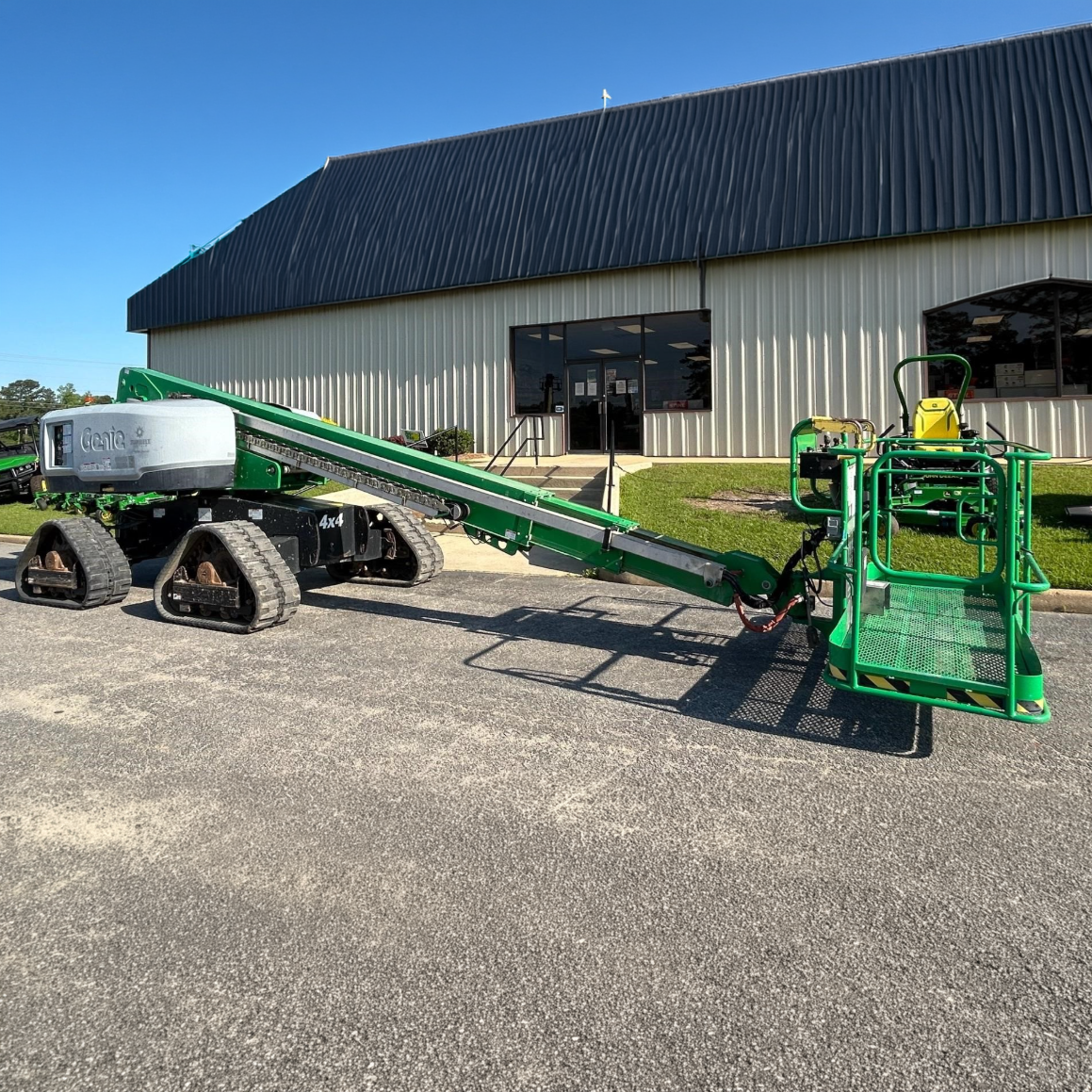

Genie S-60TRAX Specs
Quick-reference specifications for the Genie S-60TRAX boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 60 ft18.29 m
- Working height max.
- 66 ft20.29 m
Performance 15 specs
| Working height max. | 66 ft (20.29 m) |
|---|---|
| Horizontal reach max. | 48 ft 7 in (14.80 m) |
| Below ground reach | 5 ft 5 in (1.65 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Lift capacity max. – restricted | 1,000 lb (454 kg) |
| Platform rotation | 160° |
| Turntable rotation | 360° |
| Drive speed – stowed (tires) | 3.0 mph (4.8 km/h) |
| Drive speed – stowed (TraX) | 2.3 mph (3.7 km/h) |
| Drive speed – raised (tires) | 1 ft/s (0.3 m/s) |
| Drive speed – raised (TraX) | 0.7 ft/s (0.2 m/s) |
| Turning radius – inside/outside (tires) | 7 ft 9 in/ 18 ft 2 in (2.40 m / 5.50 m) |
| Sound Pressure level (ground workstation) | 83 dBA |
| Sound Pressure level (platform workstation) | 79 dBA |
| Vibrations | < 2.5 |
Dimensions 13 specs
| Platform height max. | 60 ft (18.29 m) |
|---|---|
| Height – stowed (tires) | 9 ft 2 in (2.80 m) |
| Height – stowed (TraX) | 9 ft 2 in (2.80 m) |
| Length – stowed (tires) | 28 ft 7 in (8.71 m) |
| Length – stowed (TraX) | 28 ft 7 in (8.71 m) |
| Width (tires) | 8 ft 2 in (2.49 m) |
| Width (TraX) | 8 ft 6 in (2.58 m) |
| Wheelbase | 8 ft 2 in (2.49 m) |
| Ground clearance – center (tires) | 16.3 in (0.41 m) |
| Ground clearance – center (TraX) | 16.3 in (0.41 m) |
| Height under counterweight | 3 ft 10 in (1.17 m) |
| Number of Platform Occupants (restricted/unrestricted) | 3 |
| Turntable tailswing | 4 ft 7.5 in (1.41 m) |
Weight 6 specs
| Weight (tires) | 22,930 lb (10,401 kg) |
|---|---|
| Weight (TraX) | 26,840 lb (12,174 kg) |
| Tire contact pressure | 90 psi (620 kPa) |
| Track contact pressure | 23 psi (158 kPa) |
| Occupied floor pressure (tires) | 281 psf (13.44 kPa) |
| Occupied floor pressure (TraX) | 266 psf (12,72 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 40 gal (151 L) |
|---|---|
| Fuel tank capacity | 35 gal (132 L) |
