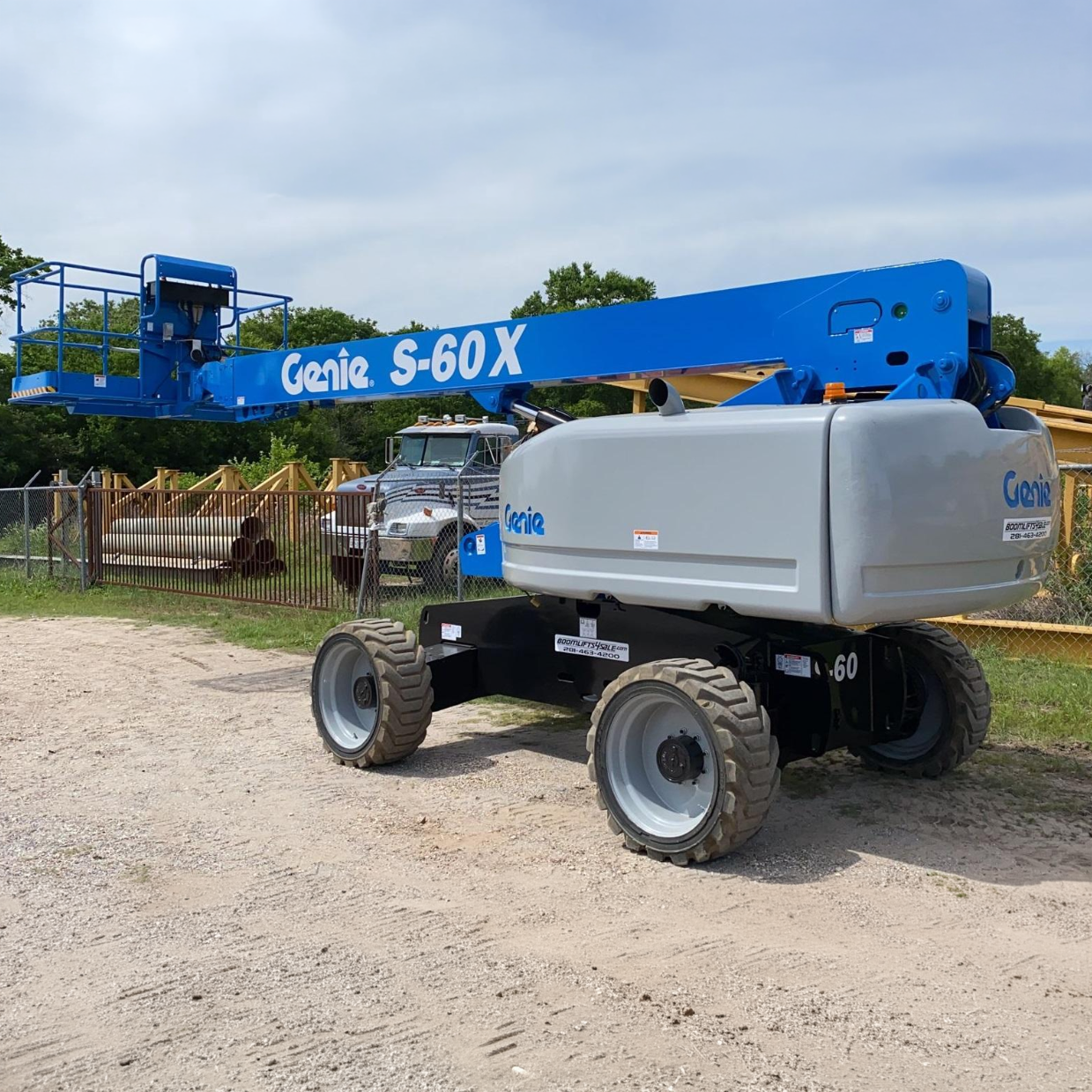

Genie S-60X Specs
Quick-reference specifications for the Genie S-60X boom lift, taken from the manufacturer’s spec sheet.
- Platform height maximum
- 58 ft 4 in17.79 m
- Working height maximum
- 64 ft 4 in19.79 m
- Gradeability – 2WD – stowed
- 30%
Performance 9 specs
| Working height maximum | 64 ft 4 in (19.79 m) |
|---|---|
| Horizontal reach maximum | 50 ft 10 in (15.48 m) |
| Below ground reach | 5 ft 7 in (1.70 m) |
| Platform rotation | 160° |
| Turntable rotation | 360° continuous |
| Drive speed – 4WD stowed | 3.0 mph (4.8 km/h) |
| Gradeability – 2WD – stowed | 30% |
| Turning radius – inside | 7 ft 9 in (2.36 m) |
| Tires – RT Lug | 355/55D 625 |
Dimensions 11 specs
| Platform height maximum | 58 ft 4 in (17.79 m) |
|---|---|
| Platform length | 3 ft (0.91 m) |
| Platform width | 8 ft (2.44 m) |
| Height – stowed | 8 ft 11 in (2.72 m) |
| Height – stowed Trax | 9 ft 1 in (2.77 m) |
| Length – stowed | 27 ft 9 in (8.46 m) |
| Width (with standard tires) | 8 ft 2 in (2.49 m) |
| Width – Trax | 8 ft 6 in (2.59 m) |
| Wheelbase | 8 ft 3 in (2.51 m) |
| Ground clearance – center | 1 ft 2.5 in (0.37 m) |
| Turntable tailswing | 4 ft (1.22 m) |
Power / Engine 1 spec
| Auxiliary power unit | 12 V DC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 45 gal (170 L) |
|---|---|
| Fuel tank capacity – diesel | 35 gal (132 L) |
