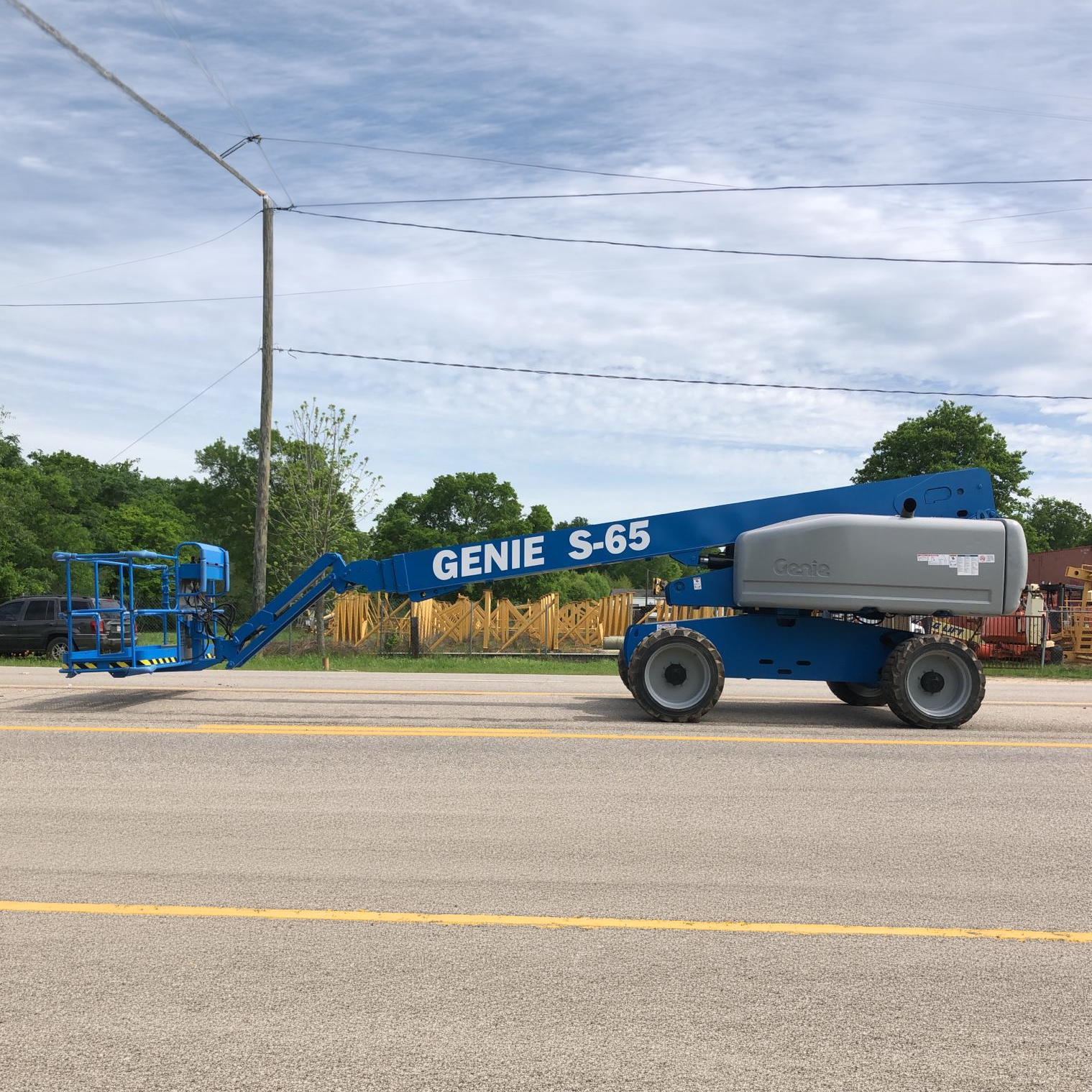

Genie S-65 Specs
Quick-reference specifications for the Genie S-65 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height maximum (on tyres)
- 65 ft19.81 m
- Working height maximum (on tyres)
- 71 ft21.81 m
- Gradeability stowed – 4WD
- 45%
Performance 16 specs
| Working height maximum (on tyres) | 71 ft (21.81 m) |
|---|---|
| Working height maximum (with Trax) | 71 ft (21.81 m) |
| Horizontal reach maximum | 56 ft 2 in (17.10 m) |
| Lift capacity | 500 lb (227 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | /-57°) (135° (+78°) |
| Turntable rotation | continuous (360°) |
| Drive speed – 4WD stowed (on tyres) | 3.0 mph (4.8 km/h) |
| Drive speed – 4WD stowed (with Trax) | 2.3 mph (3.7 km/h) |
| Drive speed – raised or extended | 0.68 mph (1.1 km/h) |
| Gradeability stowed – 4WD | 45% |
| Turning radius – inside | 7 ft 9 in (2.36 m) |
| Turning radius – outside | 18 ft 2 in (5.54 m) |
| Sound pressure level (ground workstation) | 83 dBA |
| Sound pressure level (platform workstation) | 79 dBA |
| Vibration | <8 ft 2 in/s² (<2.5 m/s²) |
Dimensions 9 specs
| Platform height maximum (on tyres) | 65 ft (19.81 m) |
|---|---|
| Platform length | 3 ft (0.91 m) |
| Height – stowed with standard tyres | 8 ft 11 in (2.72 m) |
| Length – stowed | 30 ft 11 in (9.42 m) |
| Width – with standard tyres | 8 ft 2 in (2.49 m) |
| Wheelbase | 0 |
| Ground clearance – centre | 1 ft 2.5 in (0.37 m) |
| Turntable tailswing (on tyres) | 4 ft (1.22 m) |
| Turntable tailswing (with Trax) | 3 ft 9 in (1.14 m) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 45 gal (170 L) |
|---|---|
| Fuel tank capacity | Weight will |
