Boom Lift · Genie

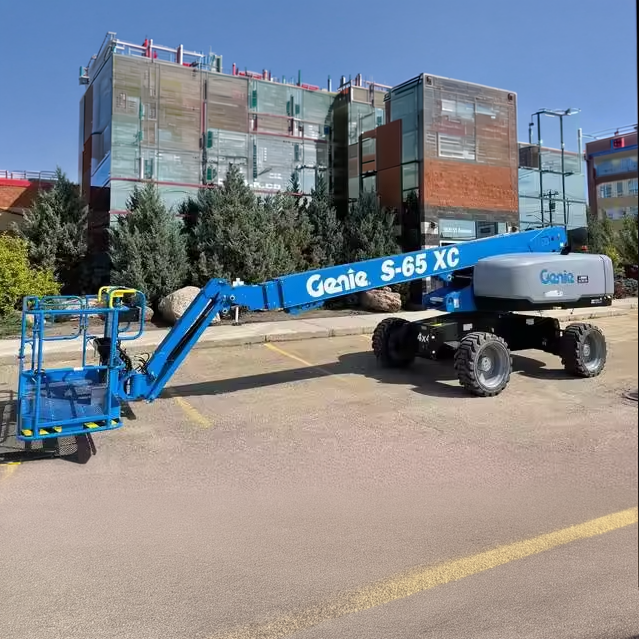

Genie S-65 XC Specs
Quick-reference specifications for the Genie S-65 XC boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 65 ft19.81 m
- Working height max.
- 71 ft21.81 m
Performance 13 specs
| Working height max. | 71 ft (21.81 m) |
|---|---|
| Horizontal reach max. | 54 ft 2 in (16.51 m) |
| Below ground reach | 8 ft 8 in (2.65 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Lift capacity max. – restricted | 1,000 lb (454 kg) |
| Vertical jib rotation (up/down) | 133° |
| Drive speed – stowed (tires) | 3.0 mph (4.8 km/h) |
| Drive speed – stowed (TraX) | 2.3 mph (3.7 km/h) |
| Drive speed – raised (tires) | 1 ft/s (0.3 m/s) |
| Drive speed – raised (TraX) | 0.7 ft/s (0.2 m/s) |
| Turning radius – inside/outside (tires) | 7 ft 9 in/ 18 ft 2 in (2.40 m / 5.50 m) |
| Sound Pressure level (ground workstation) | 86 dBA |
| Sound Pressure level (platform workstation) | 78 dBA |
Dimensions 13 specs
| Platform height max. | 65 ft (19.81 m) |
|---|---|
| Height – stowed (tires) | 9 ft 3 in (2.81 m) |
| Height – stowed (TraX) | 9 ft 3 in (2.81 m) |
| Length – stowed (tires) | 32 ft (9.76 m) |
| Length – stowed (TraX) | 32 ft (9.76 m) |
| Width (tires) | 8 ft 2 in (2.49 m) |
| Width (TraX) | 8 ft 6 in (2.58 m) |
| Wheelbase | 8 ft 2 in (2.49 m) |
| Ground clearance – center (tires) | 16.3 in (0.41 m) |
| Ground clearance – center (TraX) | 16.3 in (0.41 m) |
| Height under counterweight | 3 ft 10 in (1.17 m) |
| Turntable tailswing | 4 ft 7.5 in (1.41 m) |
| Tires | 55D625 |
Weight 6 specs
| Weight (tires) | 25,160 lb (11,412 kg) |
|---|---|
| Weight (TraX) | 29,000 lb (13,154 kg) |
| Tire contact pressure | 90 psi (620 kPa) |
| Track contact pressure | 25 psi (170 kPa) |
| Occupied floor pressure (tires) | 304 psf (14.55 kPa) |
| Occupied floor pressure (TraX) | 285 psf (13.66 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 40 gal (151 L) |
|---|---|
| Fuel tank capacity | 35 gal (132 L) |
