Boom Lift · Genie

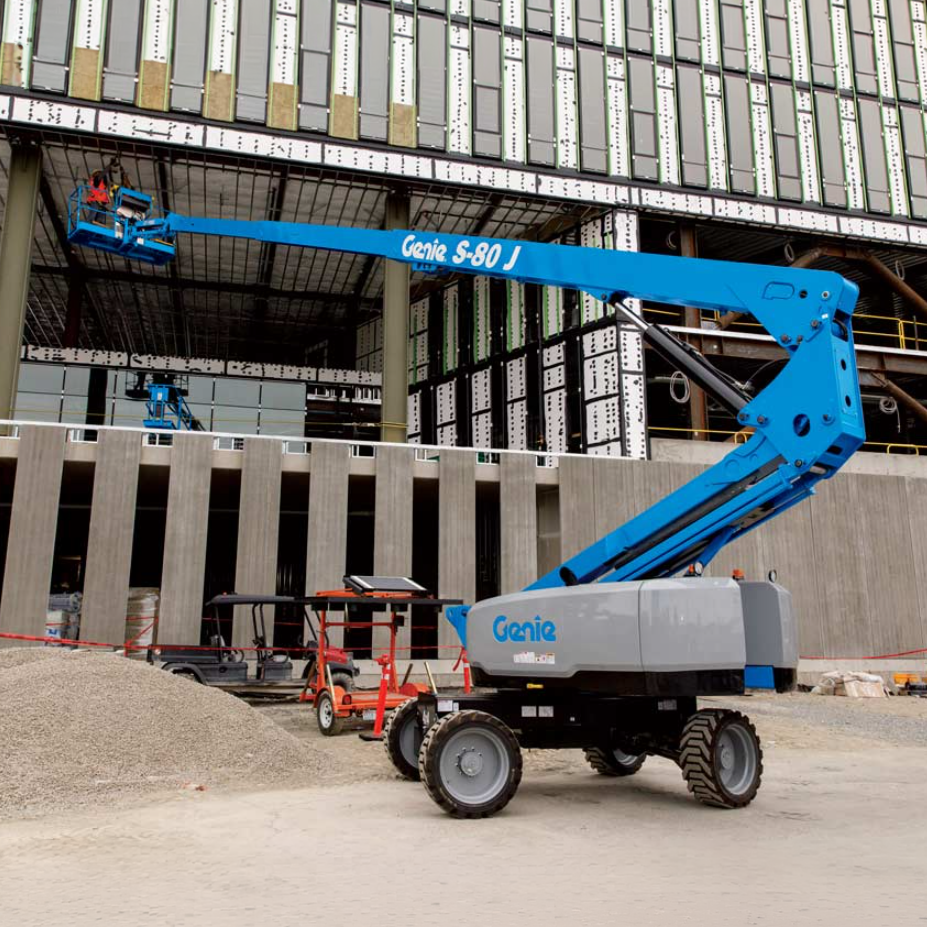

Genie S-80J Specs
Quick-reference specifications for the Genie S-80J boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 80 ft 5 in24.51 m
- Working height max.
- 86 ft 5 in26.51 m
- Gradeability – stowed
- 45 %
Performance 18 specs
| Working height max. | 86 ft 5 in (26.51 m) |
|---|---|
| Working height max.(TraX) | 86 ft 7 in (26.56 m) |
| Horizontal reach max. | 54 ft 9 in (16.69 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Number of Platform Occupants | 2 |
| Platform rotation | 160° |
| Vertical jib rotation (up/down) | 130° |
| Turntable rotation | 355° |
| Drive speed – stowed (tires) | 3.0 mph (4.8 km/h) |
| Drive speed – stowed (TraX) | 1.95 mph (3.14 km/h) |
| Drive speed – raised (tires) | 0.72 mph (1.6 km/h) |
| Drive speed – raised (TraX) | 0.63 mph (1.01 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside (tires) | 15 ft 6 in / 25 ft 7.22 in (4.70 m / 7.80 m) |
| Turning radius – inside/outside (TraX) | 16 ft 3.5 in / 26 ft 6 in (4.97 m / 8.08 m) |
| Sound Pressure level (ground workstation) | 83.4 dBA |
| Sound Pressure level (platform workstation) | 75.5 dBA |
| Vibrations | < 2.5 m/s² (< 2.5 m/s²) |
Dimensions 15 specs
| Platform height max. | 80 ft 5 in (24.51 m) |
|---|---|
| Platform height max.(TraX) | 80 ft 7 in (24.56 m) |
| Height – stowed (tires) | 9 ft (2.74 m) |
| Height – stowed (TraX) | 9 ft 4 in (2.84 m) |
| Length – stowed (tires) | 34 ft 3 in (10.44 m) |
| Length – stowed (TraX) | 34 ft 3 in (10.44 m) |
| Length – storage/transport (jib tucked under) | 26 ft 2 in (7.98 m) |
| Width (tires) | 8 ft 2 in (2.49 m) |
| Width (TraX) | 8 ft 1 in (2.46 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground clearance – center (tires) | 14 in (0.36 m) |
| Ground clearance – center (TraX) | 18 in (0.46 m) |
| Height under counterweight | 3 ft 7 in (1.09 m) |
| Jib length | 6 ft (1.83 m) |
| Turntable tailswing | 8 ft 4 in (2.54 m) |
Weight 6 specs
| Weight (tires) | 24,500 lb (11,113 kg) |
|---|---|
| Weight (TraX) | 29,588 lb (13,421 kg) |
| Tire contact pressure | 91 psi (627 kPa) |
| Track contact pressure | 33 psi (227.5 kPa) |
| Occupied floor pressure (tires) | 243 psf (11.61 kPa) |
| Occupied floor pressure (TraX) | 291 psf (13.93 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 23 gal (87 L) |
|---|---|
| Fuel tank capacity | 30 gal (114 L) |
