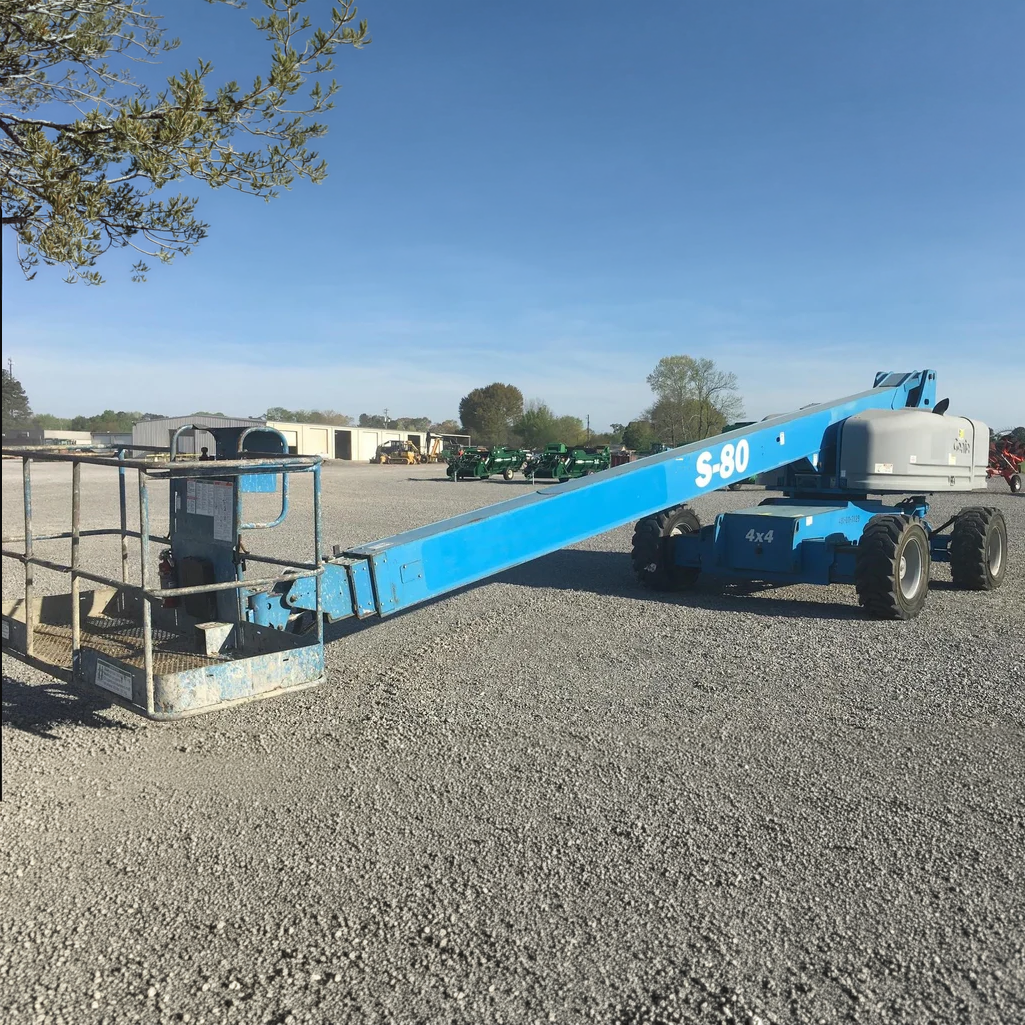

Genie S-80 Specs
Quick-reference specifications for the Genie S-80 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity – 8 ft platform
- 500 lb227 kg
- Platform height maximum
- 80 ft24.38 m
- Working height maximum
- 86 ft26.38 m
- Gradeability – 2WD – stowed
- 30%
Performance 13 specs
| Working height maximum | 86 ft (26.38 m) |
|---|---|
| Horizontal reach maximum | 72 ft 5 in (22.07 m) |
| Below ground reach | 10 ft 3 in (3.12 m) |
| Lift capacity – 8 ft platform | 500 lb (227 kg) |
| Lift capacity – 6 ft platform | 600 lb (272 kg) |
| Platform rotation | 160° |
| Turntable rotation | 360° continuous |
| Drive speed – stowed – 2WD/4WD | 3.5 mph (5.6 km/h) |
| Drive speed – raised/extended | 0.68 mph (1.1 km/h) |
| Gradeability – 2WD – stowed | 30% |
| Gradeability – 4WD – stowed | 45% |
| Turning radius – axle extended: inside | 10 ft 8 in (3.25 m) |
| Tires – RT lug | 385/65 D22.5 |
Dimensions 13 specs
| Platform height maximum | 80 ft (24.38 m) |
|---|---|
| Platform length – 8 ft model | 3 ft (.91 m) |
| Platform length – 6 ft model | 2 ft 6 in (.76 m) |
| Platform width – 8 ft model | 8 ft (2.44 m) |
| Platform width – 6 ft model | 6 ft (1.83 m) |
| Height – stowed | 9 ft 2 in (2.80 m) |
| Length – stowed | 37 ft 3 in (11.35 m) |
| Width – axles retracted | 8 ft (2.44 m) |
| Width – axles extended | 10 ft 1 in (3.07 m) |
| Wheelbase | 9 ft (2.74 m) |
| Ground clearance – center | 1 ft 5 in (.43 m) |
| Turntable tailswing – axle retracted | 4 ft 8 in (1.42 m) |
| Turntable tailswing – axle extended | 3 ft 8 in (1.12 m) |
Power / Engine 1 spec
| Auxiliary power unit | 12 V DC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 45 gal (170 L) |
|---|---|
| Fuel tank capacity | 33 gal (125 L) |
