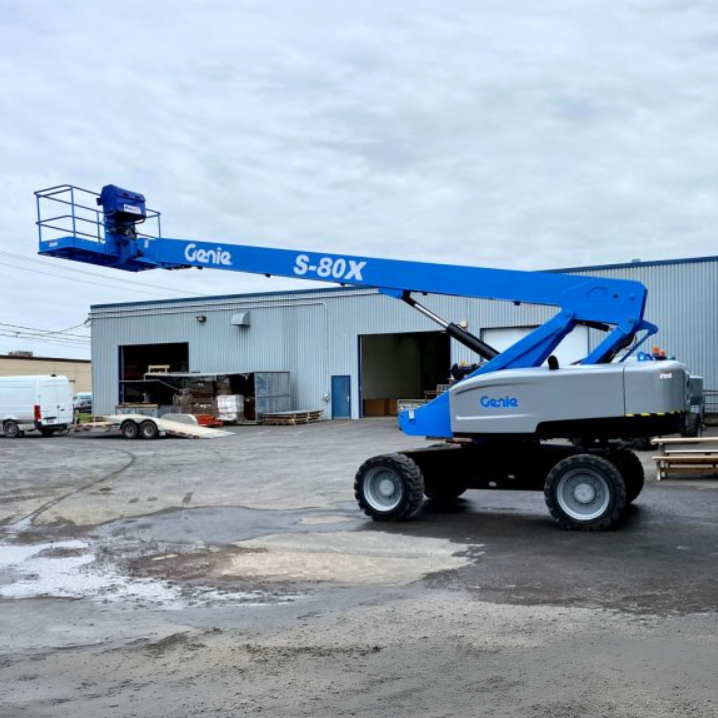

Genie S-80X Specs

Quick-reference specifications for the Genie S-80X boom lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform height maximum: 80 ft
Working height maximum: 86 ft
Gradeability – 2WD – stowed: 30%

Performance 8 specs

Working height maximum	86 ft
Horizontal reach maximum	71 ft 6 in
Below ground reach	6 ft 1 in
Platform rotation	160°
Turntable rotation	360° continuous
Drive speed – stowed – 2WD/4WD	3.3 mph
Gradeability – 2WD – stowed	30%
Turning radius – axle extended: inside	12 ft

Dimensions 11 specs

Platform height maximum	80 ft
Platform length – 8 ft model	3 ft
Platform length – 6 ft model	2 ft 6 in
Platform width – 8 ft model	8 ft
Platform width – 6 ft model	6 ft
Height – stowed	9 ft 2 in
Length – stowed	36 ft 6 in
Width	8 ft 2 in
Wheelbase	9 ft 4 in
Ground clearance – center	15.8 in
Turntable tailswing	4 ft 8 in

Power / Engine 1 spec

Auxiliary power unit	12 V DC

Hydraulics / Fluids 2 specs

Hydraulic tank capacity	40 gal
Fuel tank capacity – diesel	35 gal
