Boom Lift · Genie

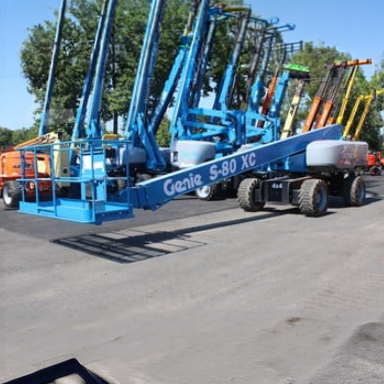

Genie S-80XC Specs
Quick-reference specifications for the Genie S-80XC boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 660 lb300 kg
- Platform height max.
- 80 ft24.38 m
- Working height max.
- 86 ft26.38 m
- Gradeability – stowed
- 45 %
Performance 15 specs
| Working height max. | 86 ft (26.38 m) |
|---|---|
| Horizontal reach max. | 68 ft 6 in (20.88 m) |
| Below ground reach | 5 ft 6 in (1.68 m) |
| Lift capacity max. – unrestricted | 660 lb (300 kg) |
| Lift capacity max. – restricted | 1,000 lb (454 kg) |
| Platform rotation | 160° |
| Turntable rotation | 360° |
| Drive speed – stowed (tires) | 3.0 mph (4.8 km/h) |
| Drive speed – raised (tires) | 0.5 mph (0.2 m/s) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside (tires) | 12 ft/21 ft 6 in (3.66 m / 6.55 m) |
| Tires | 18-625 |
| Sound Pressure level (ground workstation) | 85 dBA |
| Sound Pressure level (platform workstation) | 78 dBA |
| Vibrations | < 2.5 m/s² |
Dimensions 8 specs
| Platform height max. | 80 ft (24.38 m) |
|---|---|
| Height – stowed (tires) | 9 ft 2 in (2.80 m) |
| Length – stowed (tires) | 37 ft 7 in (11.23 m) |
| Width (tires) | 8 ft 2 in (2.49 m) |
| Wheelbase | 9 ft 4 in (2.85 m) |
| Ground clearance – center (tires) | 15.8 in (0.40 m) |
| Height under counterweight | 3 ft 9 in (1.14 m) |
| Turntable tailswing | 5 ft 3 in (1.60 m) |
Weight 3 specs
| Weight (tires) | 37,000 lb (16,783 kg) |
|---|---|
| Tire contact pressure | 130 psi (896 kPa) |
| Occupied floor pressure (tires) | 370 psf (17.74 kPa) |
Hydraulics / Fluids 1 spec
| Fuel tank capacity | 35 gal (132 L) |
|---|
