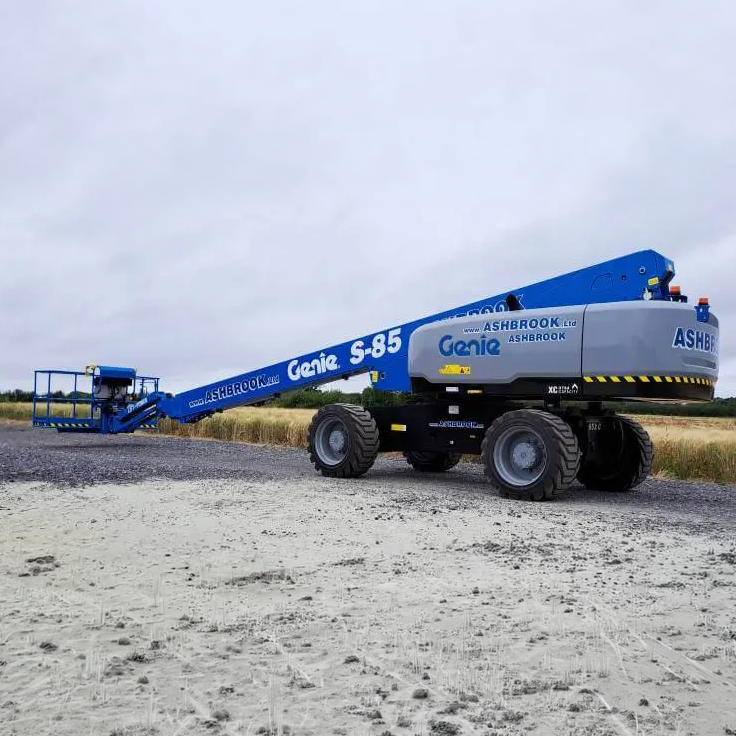

Genie S-85 Specs
Quick-reference specifications for the Genie S-85 boom lift, taken from the manufacturer’s spec sheet.
- Platform height maximum
- 85 ft25.90 m
- Working height maximum
- 91 ft27.70 m
- Gradeability – 2WD – stowed
- 30%
Performance 11 specs
| Working height maximum | 91 ft (27.70 m) |
|---|---|
| Horizontal reach maximum | 76 ft 6 in (23.30 m) |
| Below ground reach | 9 ft 6 in (2.89 m) |
| Platform rotation | 160° |
| Vertical jib rotation | 135° |
| Turntable rotation | 360° continuous |
| Drive speed – stowed – 2WD/4WD | 3.5 mph (5.6 km/h) |
| Drive speed – raised/extended | 0.68 mph (1.1 km/h) |
| Gradeability – 2WD – stowed | 30% |
| Gradeability – 4WD – stowed | 45% |
| Turning radius – axle extended: inside | 12 ft (3.70 m) |
Dimensions 12 specs
| Platform height maximum | 85 ft (25.90 m) |
|---|---|
| Platform length – 8 ft model | 3 ft (.91 m) |
| Platform length – 6 ft model | 2 ft 6 in (.76 m) |
| Platform width – 8 ft model | 8 ft (2.44 m) |
| Platform width – 6 ft model | 6 ft (1.83 m) |
| Height – stowed | 9 ft 2 in (2.80 m) |
| Length – stowed | 40 ft (12.20 m) |
| Length – transport (jib tucked under) | 38 ft (11.60 m) |
| Width | 8 ft 2 in (2.50 m) |
| Wheelbase | 9 ft 4 in (2.80 m) |
| Ground clearance – center | 13 in (.33 m) |
| Turntable tailswing | 4 ft 8 in (1.42 m) |
Hydraulics / Fluids 3 specs
| Hydraulic tank capacity | 40 gal (150 L) |
|---|---|
| Fuel tank capacity – diesel | 35 gal (132 L) |
| Fuel tank capacity – gas/LPG | 30 gal (113.6 L) |
