Boom Lift · Genie

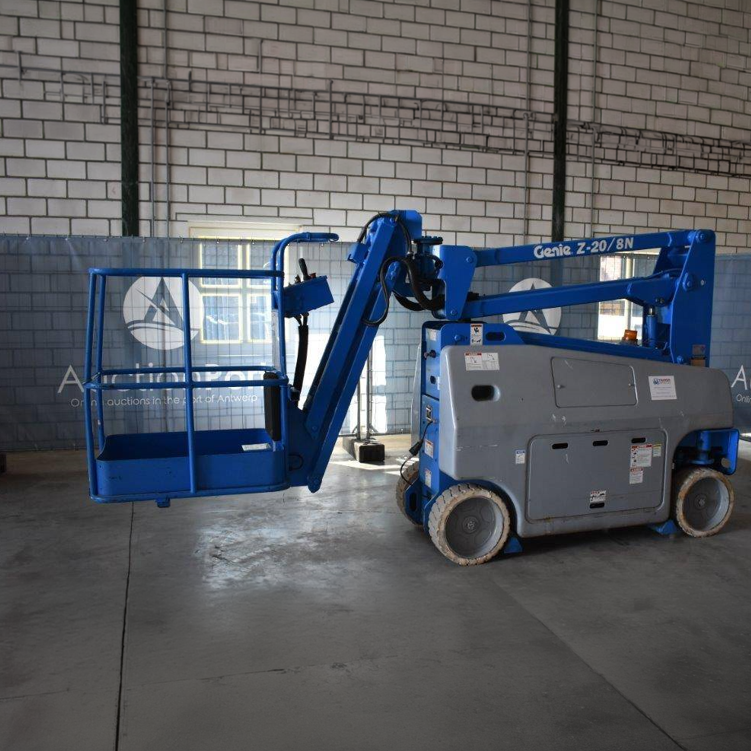

Genie Z-20/8 Specs
Quick-reference specifications for the Genie Z-20/8 boom lift, compiled from published specifications.
- Platform Height Maximum
- 25 ft7.6 m
- Working Height Maximum
- 31 ft9.4 m
- Gradeability (boom stowed)
- 20%
Performance 16 specs
| Working Height Maximum | 31 ft (9.4 m) |
|---|---|
| Platform Height Maximum | 25 ft (7.6 m) |
| Horizontal Reach Maximum | 7 ft 11 in (2.4 m) |
| Platform Rotation | 180° |
| Jib Boom Rotation | 180° |
| Jib Boom Range of Motion | 144° |
| Drive Speed – Stowed (high range) | 2.7 mph (4.3 km/h) |
| Drive Speed – Stowed (low range) | 1.4 mph (2.25 km/h) |
| Drive Speed – Boom Raised | 0.6 mph (0.8 km/h) |
| Gradeability (boom stowed) | 20% |
| Maximum Load Capacity | 500 lb (227 kg) |
| Maximum Occupants | 2 |
| Tailswing | 18 in (45.7 cm) |
| Noseswing | 58 in (147.3 cm) |
| Turning Radius (inside) | 22 in (56 cm) |
| Minimum Turning Circle (outside) | 12 ft 7 in (3.8 m) |
Dimensions 8 specs
| Length – Stowed | 11 ft 9 in (3.6 m) |
|---|---|
| Width | 46 in (1.2 m) |
| Height – Stowed | 6 ft 7 in (2 m) |
| Ground Clearance (at center) | 5 in (12.7 cm) |
| Wheelbase | 5 ft 4 in (1.6 m) |
| Platform Length | 30 in (76.2 cm) |
| Platform Width | 46 in (116.8 cm) |
| Tire Size | 18 x 14 x 6 in (46 x 36 x 15 cm) |
Power / Engine 2 specs
| System Voltage | 24 V DC |
|---|---|
| Control Voltage | 24 V DC proportional |
Hydraulics / Fluids 2 specs
| Maximum Hydraulic Pressure | 3500 psi (241 bar) |
|---|---|
| Tire Load Range | 3200 lb (1873 Nm) |
