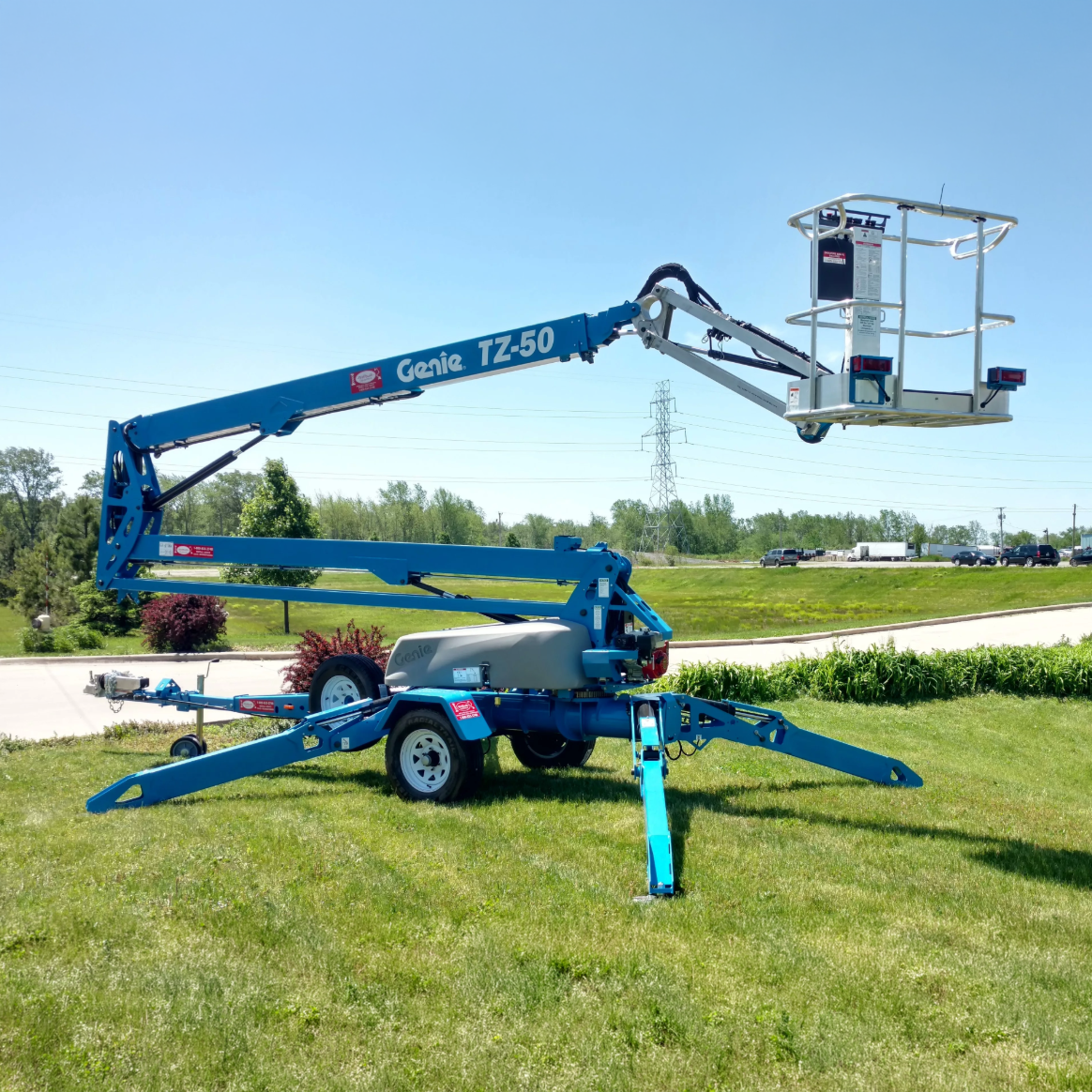

Genie TZ-50 Spec Sheet
Quick-reference specifications for the Genie TZ-50. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform height: 15.09 m
Clear outreach: 7.04 m
Lift capacity – standard: 200 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| U.S. adds | 6 ft to platform height. |
|---|---|
| Platform height | 15.09 m |
| Clear outreach | 7.04 m |
| Lift capacity – standard | 200 kg |
| Lift capacity – rotating platform | 200 kg |
| Jib boom | 1.25 m |
| Jib working range | 135° |
Dimensions
| Entry height | 0.51 m |
|---|---|
| Platform length | 0.68 m |
| Platform width | 1.12 m |
| Height – stowed | 2 m |
| Length – stowed | 7.16 m |
| Width – stowed | 1.68 m |
| Ground clearance – center | 0.25 m |
| Length – outrigger footprint | 4.37 m |
| Width – outrigger footprint | 4.37 m |
Weights & Electrical
| Horizontal reach | 8.89 m |
|---|---|
| Power source – standard 24V DC (four 6V | 225 Ah batteries) |
| Power source – drive option 24V DC (four 6V | 244 Ah batteries) |
| Weight CE | 2,025 kg |
| Standards Compliance EU Directives | 2006/42/EC – Machinery |
Powertrain & Systems
| Drive speed | 1.37 km/h |
|---|---|
| Tyre size | 215 R14C |
Hydraulics & Capacities
| Platform rotation option | 160° hydraulic |
|---|---|
| Fuel tank capacity | 3.6 L |
| Hydraulic tank capacity | 18 L |
| Hydraulic system capacity | 30 L |
