Boom Lift · Genie

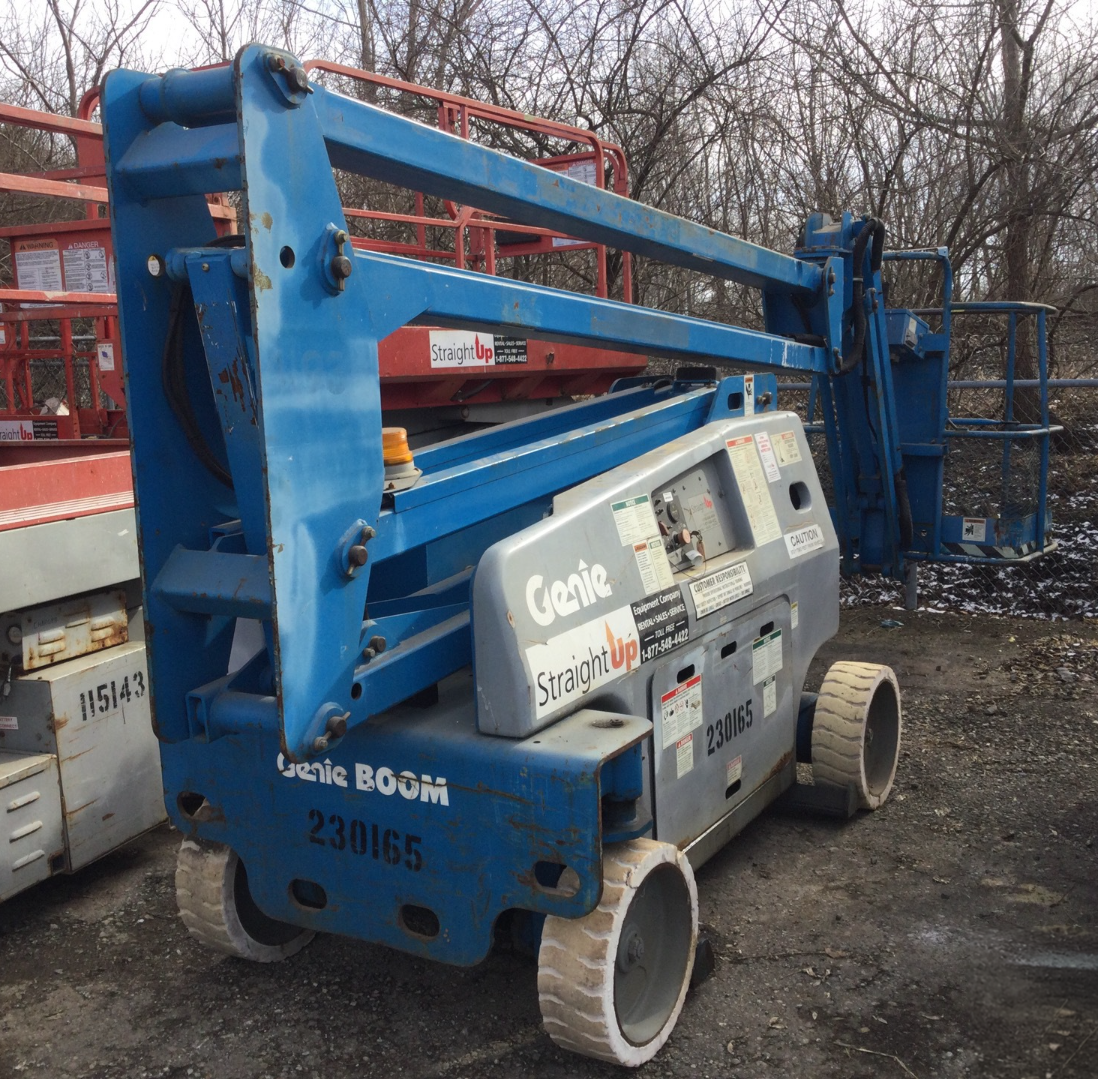

Genie Z-25/8 Specs
Quick-reference specifications for the Genie Z-25/8 boom lift, compiled from published specifications.
- Maximum Working Height
- 31 ft9.5 m
- Gradeability (boom stowed)
- 18%
Performance 10 specs
| Maximum Working Height | 31 ft (9.5 m) |
|---|---|
| Maximum Platform Height | 25 ft (7.6 m) |
| Maximum Horizontal Reach | 7 ft 11 in (2.4 m) |
| Maximum Load Capacity | 500 lb (227 kg) |
| Maximum Occupants | 2 |
| Drive Speed – Boom Stowed | 2.7 mph (4.3 km/h) |
| Drive Speed – Boom Raised | 0.6 mph (1.0 km/h) |
| Gradeability (boom stowed) | 18% |
| Jib Boom Rotation | 180° |
| Hydraulic Pressure (boom functions) | 3500 psi (241 bar) |
Dimensions 11 specs
| Length – Stowed | 16 ft (4.9 m) |
|---|---|
| Width | 46 in (1.2 m) |
| Height – Stowed | 6 ft 7 in (2.01 m) |
| Wheelbase | 5 ft 4 in (1.6 m) |
| Turning Radius (outside) | 6 ft 4 in (1.9 m) |
| Turning Radius (inside) | 11 in (28 cm) |
| Ground Clearance | 2 in (5 cm) |
| Tailswing | 18 in (45.7 cm) |
| Noseswing | 4 ft 10 in (1.5 m) |
| Platform Length | 30 in (76.2 cm) |
| Platform Width | 46 in (116.8 cm) |
Power / Engine 1 spec
| Power Source | Eight 6 V 255 AH batteries (24 V DC) |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic Pressure – Boom Functions | 3500 psi (241 bar) |
|---|
