Boom Lift · Genie

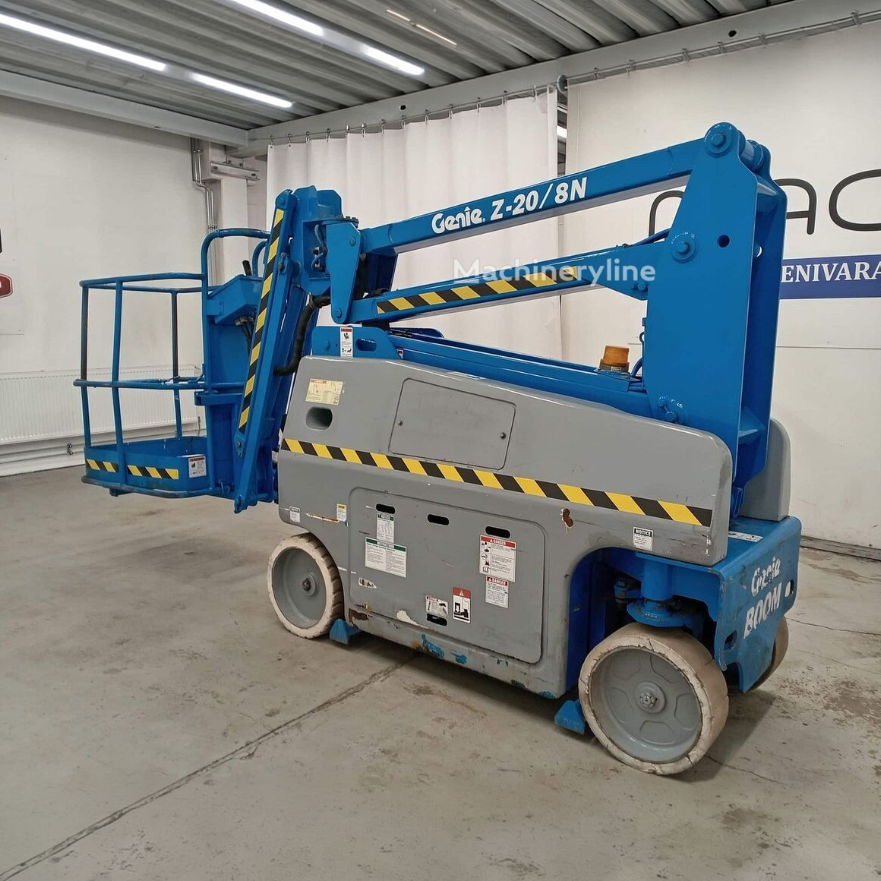

Genie Z-20/8N Specs
Quick-reference specifications for the Genie Z-20/8N boom lift, compiled from published specifications.
- Maximum working height
- 26 ft7.9 m
- Maximum gradeability (boom stowed)
- 20%
Performance 8 specs
| Maximum working height | 26 ft (7.9 m) |
|---|---|
| Maximum platform height | 20 ft (6.1 m) |
| Maximum horizontal reach | 8 ft 8 in (2.6 m) |
| Maximum gradeability (boom stowed) | 20% |
| Maximum travel speed (boom stowed, high range) | 2.7 mph (4.3 km/h) |
| Drive speed (boom raised) | 0.6 mph (1.0 km/h) |
| Jib boom rotation | 180° |
| Jib boom range of motion | 144° |
Dimensions 10 specs
| Height – stowed maximum | 6 ft 7 in (2.01 m) |
|---|---|
| Length – stowed | 12 ft 4 in (3.76 m) |
| Width | 32 in (81 cm) |
| Wheelbase | 5 ft 4 in (1.6 m) |
| Platform length | 30 in (76.2 cm) |
| Platform width | 46 in (116.8 cm) |
| Tailswing | 18 in (45.7 cm) |
| Noseswing | 58 in (147.3 cm) |
| Minimum turning circle (outside) | 12 ft 7 in (3.8 m) |
| Minimum turning circle (inside) | 22 in (56 cm) |
Weight 2 specs
| Maximum platform load capacity (ANSI & CSA) | 400 lb (181 kg) |
|---|---|
| Maximum platform load capacity (CE) | 440 lb (200 kg) |
Power / Engine 3 specs
| System voltage | 48 V DC |
|---|---|
| Drive control voltage | 48 V DC |
| Control system voltage | 24 V DC |
Hydraulics / Fluids 3 specs
| Maximum hydraulic pressure (boom functions) | 3500 psi (241 bar) |
|---|---|
| Boom elevate time (up) | 27 to 33 seconds |
| Boom elevate time (down) | 32 to 38 seconds |
